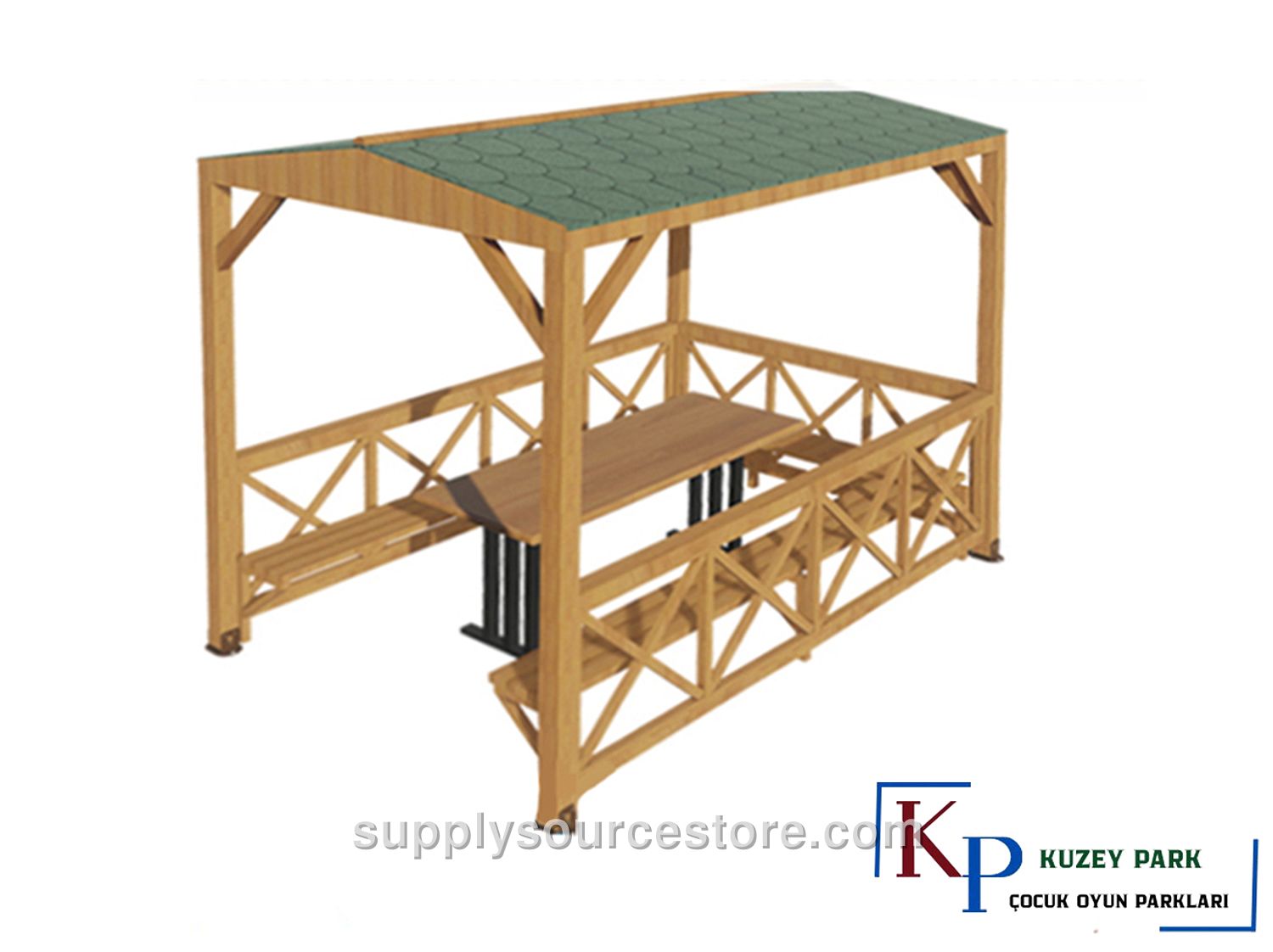

Wooden Picnic Gazebo 265x215x240 (L*W*H)
Price on request
SKU: S27-PS-01-70101-4
Product Specifications Seating Area: 270 x 210 x 240 cm (106 x 82.7 x 94.5 in) Roof Size: 275 x 215 cm (108 x 84.6 in) Height: 240 cm (94.5 in) Wood: 1st class pine/spruce Wood Color: Brown impregnated color Roof Covering: Optional shingle or fiberglass roof covering; Shingle Color: Green Seating Unit: Included Table: Included Product Features Wood Specifications: The wood material used for manufacturing will be first‑class Scots pine (Pinus sylvestris) lumber. Wood sections will be cut with a maximum tolerance of ±2 mm (0.1 in), and wood dimensions with a maximum tolerance of ±20 mm (0.8 in). The wood must meet the following criteria: knots – each meter may contain up to four solid knots, and knot diameters will not exceed one‑quarter of the piece width; no rot, defects, partially fused or fallen knots; no ring cracks; fine hairline cracks (1‑2 mm (0.1 in)) may be present; pressure‑treated environment specifications may allow axial and radial cracks within tolerance limits; resin pockets – at most one per meter, not longer than 10 cm (3.9 in); no dripping, sucking resin, inner bark, decay cavities, or insect holes. Manufacturing defects are not permitted; only deviations within the specified tolerances are allowed. Bending – will not exceed 1/50 of the piece length; impact – will not exceed 1/100 of the piece width; twisting – will not exceed 2 mm (0.1 in) per meter; compression – tolerated between 1/50 and 1/100 of the piece length. Sanding – all visible surfaces will be sanded smooth. Main Supports: The supporting legs will be made from four 90 x 90 mm (3.5 x 3.5 in) pine lumber pieces with diamond‑shaped knives and decorative motifs. The height of the supporting legs will be 220 cm (86.6 in). Roof: Roof beams will be fabricated from 50 x 100 mm (2 x 3.9 in) wood. Two corners of each beam will be routed to shape them. The top side will be fastened with wood‑clad siding or fiber material. Siding will be covered with zinc‑coated nails and then with American cedar shingle (roofing material). At the front board, 30 x 130 mm (1.2 x 5.1 in) wooden strips with decorative diamond‑shaped knives will be attached to the roof beams using special galvanized screws. The roof frame will be built with 40 x 90 mm (1.6 x 3.5 in) beams cut at specific angles, connected to the main support on one side and to the front board on the other. All fixed connections will use special galvanized wood screws. Lower Panels (Railing): The lower railing height is 75 cm (29.5 in). Railing frames are 50 x 50 mm (2 x 2 in) wood, sanded on all sides and edged with decorative diamond‑shaped knives. Frames will be mounted to the main supports with special galvanized wood screws. Intermediate motifs are made from 40 x 50 mm (1.6 x 2 in) wood cut with decorative diamond‑shaped knives and mounted with special galvanized screws. Seating Unit: For the seating unit, six 40 x 90 mm (1.6 x 3.5 in) L‑shaped wooden legs will be mounted with one end to the main support and the other end to the seat frame using special galvanized screws. On top of the L‑legs, twelve 40 x 90 mm (1.6 x 3.5 in) wooden slats cut with decorative diamond‑shaped knives will be attached with special galvanized screws. Table: The table is 60 cm (23.6 in) wide, 120 cm (47.2 in) long, and 70 cm (27.6 in) high. The table legs are made from 40 x 60 mm (1.6 x 2.4 in) electrostatically powder‑coated metal profile, 78 cm (30.7 in) high. The tabletop consists of six wooden slats, each 40 x 90 mm (1.6 x 3.5 in), 120 cm (47.2 in) long. Anchoring: Anchors will be welded to a 150 x 150 x 5 mm (5.9 x 5.9 x 0.2 in) flange, with a 90 x 70 x 5 mm (3.5 x 2.8 x 0.2 in) plate welded on top, and a 12 mm (0.5 in) diameter hole drilled. Anchors will be bolted to the leg bases and to the ground with steel dowels, preventing water contact with the wood and securing the legs. Gazebo anchors will be fabricated by welding minimum‑3 mm (0.1 in) thick flanges around at least two sides of each leg. Six special screws will be inserted per leg for the vertical connection, and two dowel screws per leg for the ground connection. All metal components will be powder‑coated with polyester‑based paint.
