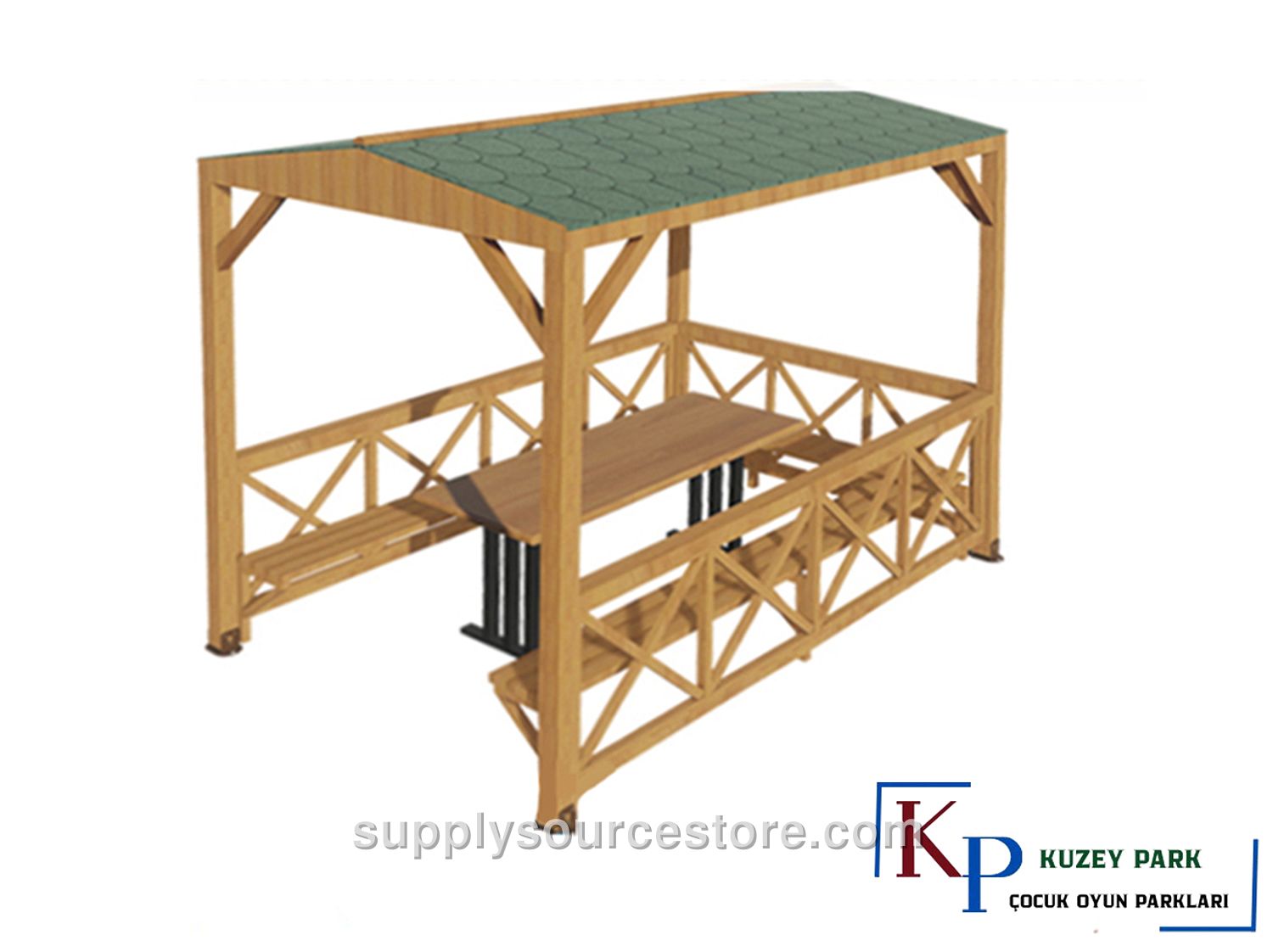

Wooden Gazebo 265x215x240 cm (104 x 84.6 x 94.5 in) (L×W×H)
Price on request
SKU: S27-PS-01-70101-3
Product Features: - Seating Area: 270 x 210 x 240 cm (106 x 82.7 x 94.5 in) - Roof Size: 275 x 215 cm (108 x 84.6 in) - Height: 240 cm (94.5 in) - Wood: First‑class pine/fir - Wood Color: Brown pressure‑treated color - Roof Covering: Optional specialty roof covering made of shingle over lap siding or fiberglass material. - Shingle Color: Green - Seating Unit: Included - Table: Included Wood Details: - The wood used for manufacturing will be 1st‑class Scots pine (Pinus sylvestris) lumber. Sections are cut with a maximum tolerance of ±2 mm (0.1 in), and dimensions with a maximum tolerance of ±20 mm (0.8 in). Each meter may contain up to four sound knots, none exceeding ¼ of the piece width. No rot, defects, partially fused or fallen knots are allowed. No ring cracks; micro‑cracks (1‑2 mm (0.1 in)) are permissible. Pressure‑treated specifications may allow head and foot cracks within tolerance limits. Resin pockets may be up to 10 cm (3.9 in) long, with at most one per meter; no dripping or pulling resin, inner shell, decay cavities, or insect holes are permitted. Manufacturing defects are excluded; only tolerated deviations apply. Bend: up to 1/50 of the piece length. Knock‑outs: up to 1/100 of the piece width. Twist: up to 2 mm (0.1 in) per meter. Deflection: between 1/50 and 1/100 of the piece length. All visible surfaces are sanded smooth. Primary Supports: - Support legs are made from four pine beams (minimum 90 × 90 mm (3.5 x 3.5 in)) machined with diamond‑tipped special knives. The legs are 220 cm (86.6 in) high. Roof: - The gazebo’s roof frame consists of 50 × 100 mm (2 x 3.9 in) wooden slats. Two corners of each slat are milled for shape. The slats are secured with wooden screws and covered with either wood‑clad lap siding or fiber material. Shingles (American cedar‑shingle) are fastened with wide‑head special nails, and a galvanized steel frame connects the roof to the main supports and the front board using slats cut at specific angles (minimum 40 × 90 mm (1.6 x 3.5 in)). All fixed connections use special galvanized wood screws. Lower Panels (Railings): - The lower railing height is 75 cm (29.5 in). Railing frames are 50 × 50 mm (2 x 2 in) wood, sanded on all sides and edged with diamond‑tipped knives. They are mounted to the primary supports with galvanized wood screws. Intermediate motifs are 40 × 50 mm (1.6 x 2 in) wooden pieces shaped with diamond‑tipped knives and attached with galvanized screws. Seating Unit: - Six L‑shaped wooden legs (minimum 40 × 90 mm (1.6 x 3.5 in)) are bolted—one end to the main support, the other to the seating frame—with special galvanized screws. On top of the legs, twelve wooden slats (minimum 40 × 90 mm (1.6 x 3.5 in)) shaped by diamond‑tipped knives are installed using galvanized screws. Table: - The table measures 60 cm (23.6 in) wide, 120 cm (47.2 in) long, and 70 cm (27.6 in) high. Table legs are made of 78 cm (30.7 in)‑high, 40 × 60 mm (1.6 x 2.4 in) electrostatic powder‑coated metal profiles. The tabletop consists of six wooden slats (minimum 40 × 90 mm (1.6 x 3.5 in)) spanning 120 cm (47.2 in). Anchoring: - Under each support leg, a 150 × 150 × 5 mm (5.9 x 5.9 x 0.2 in) flange with a 90 × 70 × 5 mm (3.5 x 2.8 x 0.2 in) steel plate is welded and drilled for a 12 mm (0.5 in) hole. Anchors are bolted to the underside of the supports and secured to the ground with steel dowels, preventing water contact with the wood and ensuring stable foot mounting. Gazebo anchors consist of flanged steel plates welded to at least two sides of the vertical studs. Six special screws are driven into each leg for the anchor connection, and two doweled screws per leg secure the anchor to the ground. All metal parts are powder‑coated with polyester‑based paint. Pressure Treatment: (details follow as per specification).
