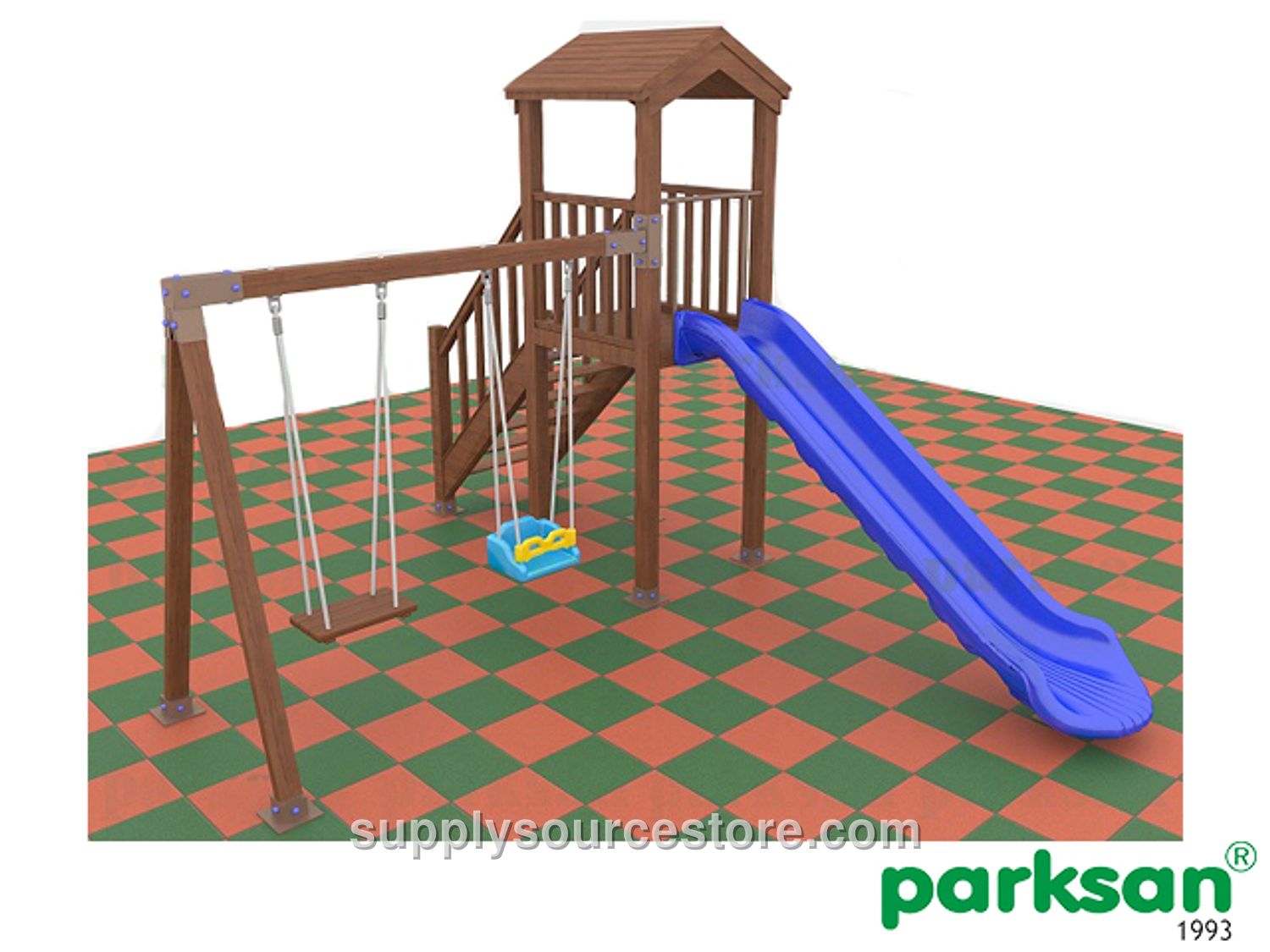

51501 – Wooden Playground Set (Eco Series)
Price on request
SKU: PARKS-0563
Seating Area: 380 x 470 cm (150 x 185 in) Safety Area: 680 x 770 cm (268 x 303 in) Top Height: 291 cm (115 in) Slide Connection Height: 150 cm (59.1 in) Age Group: 3+ years Spare Parts: - One wooden swing A pipe (1 piece) - One wooden swing carrier pipe (1 piece) - One polyethylene swing seat with guard (1 piece) - One wooden swing seat (1 piece) - One wooden stair guard (1 piece) - Five wooden stair steps (5 pieces) - Four wooden tower pipes (4 pieces) - One wooden platform (1 piece) - Two wooden platform guards (2 pieces) - One wooden roof (1 piece) - One H:150 cm (59.1 in) polyethylene straight slide (1 piece) Carrier Construction: 1. The carrier uprights are 260 cm (102 in) long with a 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp edges and corners on the wooden studs used in the carrier structure are rounded to prevent accidents. 3. The foot of each upright uses a 10 × 10 cm (3.9 x 3.9 in) anchor made from 2 mm (0.1 in) thick box‑profile steel. 4. All connection points will use stainless‑steel wood screws that are recessed inside the wooden studs and covered with polyurethane caps. 5. The wooden material is pressure‑treated spruce / fir. Wooden Square Platform: 1. The platform measures 110 × 110 cm (43.3 x 43.3 in). 2. When assembling the platform, carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) are wrapped around the perimeter, and two pieces of 4 × 9 cm (1.6 x 3.5 in) wood (81.5 cm (32.1 in) long) are placed between each pair of uprights. The remaining gaps are filled with nine pieces of 4 × 9 cm (1.6 x 3.5 in) wood (100 cm (39.4 in) long) placed side‑by‑side, completing the platform. 3. The wood is pressure‑treated spruce / fir. Wooden Roof: 1. The roof measures 115 × 115 cm (45.3 x 45.3 in) and is 41 cm (16.1 in) high. 2. There is a 152.5 cm (60 in) clearance between the lower edge of the roof eaves and the platform. 3. The square roof is formed by overlapping wooden slats. 4. The wood is pressure‑treated spruce / fir. Straight Slide: 1. The slide descends from a 100 cm (39.4 in) high platform at a maximum angle of 40°, never exceeding 60°. 2. Total slide width is 65 cm (25.6 in); the sliding section is 50 cm (19.7 in) wide and 240 cm (94.5 in) long. 3. The side walls of the slide are 19 cm (7.5 in) high. 4. At the slide entrance, a wooden barrier ensures a safe start for children, and a 35 cm (13.8 in) long flat section at the exit reduces the child's speed. 5. Slides are mounted to the platform with galvanized bolts; the bolt heads are concealed with injection‑molded plastic washers for a cleaner look and longer durability. 6. The slide is anchored to the ground by a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter pipe with a 2 mm (0.1 in) wall thickness, welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick steel plate. Swing: 1. The swing seating area measures 108 × 270 cm (42.5 x 106 in), with a height of 204 cm (80.3 in). 2. The swing carrier legs are 9 × 9 cm (3.5 x 3.5 in) and 208.5 cm (82.1 in) long, fabricated from wood. At the points where the legs touch the ground, a 10 × 10 cm (3.9 x 3.9 in) box‑profile steel plate is used. 3. The connecting piece between the swing carrier legs is 9 × 9 cm (3.5 x 3.5 in) and 260 cm (102 in) long, also made of wood, and includes two swing connection fittings for each swing. 4. Two swing seats are provided: one made of polyethylene with three sides closed and a front safety guard, and one made of rubber without a guard. 5. When not in use, the guarded swing sits 35 cm (13.8 in) above the ground, while the open swing sits 40 cm (15.7 in) above the ground. 6. The swing chains are double‑row and galvanized. Wooden Stair: 1. Steps are 22 cm (8.7 in) deep, with a tread height of 20.5 cm (8.1 in) and a width of 74 cm (29.1 in), formed by arranging 4 × 11 cm (1.6 x 4.3 in) wooden slats side‑by‑side. 2. Wooden slats (4 × 11 cm (1.6 x 4.3 in)) extend from the ground to the platform to create the stair structure. 3. Steps are positioned with no gaps when viewed from above and are evenly spaced. 4. The handrail height is 75 cm (29.5 in) above the stepping surface. 5. Handrail balusters are 3 × 9 cm (1.2 x 3.5 in) wood pieces spaced every 64 cm (25.2 in). 6. The wood is pressure‑treated spruce / fir. Wooden Guardrails: 1. Guardrails are 3 × 9 cm (1.2 x 3.5 in). 2. Each guardrail consists of two horizontal slats (3 × 9 cm (1.2 x 3.5 in), 100 cm (39.4 in) long) and vertical slats (3 × 9 cm (1.2 x 3.5 in), 64 cm (25.2 in) long) joined together. 3. The gap between vertical slats is 8.9 cm (3.5 in). 4. All edges and corners are rounded to prevent injuries. 5. The wood is pressure‑treated spruce / fir.
