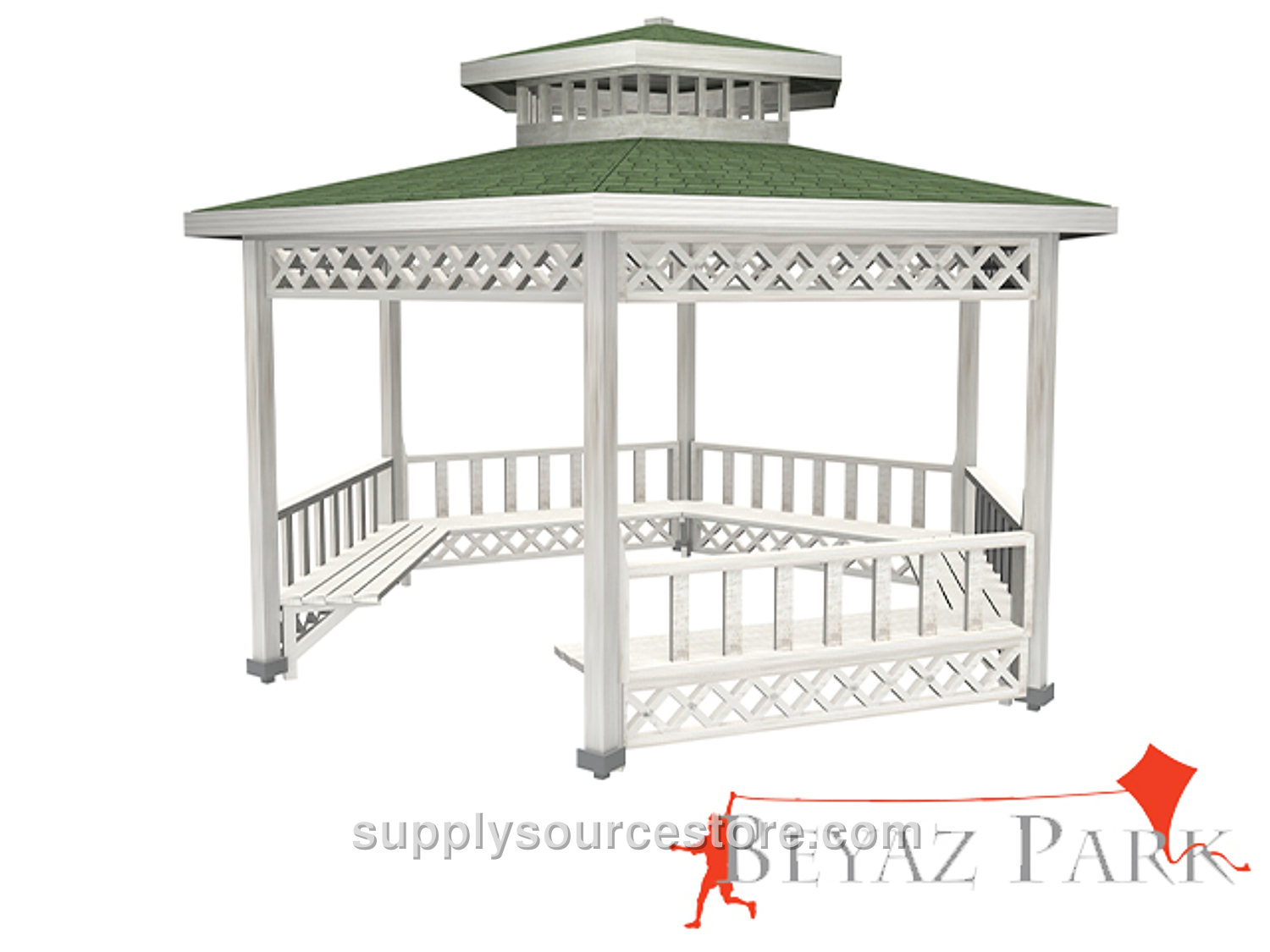

Wooden Gazebo Hexagon 400(L)x400(W)x330(H)
Price on request
SKU: S27-PS-07-70178
Product Technical Specifications Seating Area: 400 x 400 cm (157 x 157 in) Roof Area: 470 x 470 cm (185 x 185 in) Height: 330 cm (130 in) Wood Characteristics: The wood used for manufacturing will be first‑class Yellow Pine (Pinus sylvestris) lumber. Wood sections will be cut with a maximum tolerance of ±2 mm (0.1 in), and overall dimensions with a tolerance of ±20 mm (0.8 in). Required wood qualities include: - Knots: Each meter may contain up to four solid knots, with knot diameters not exceeding one‑quarter of the total piece width. No rot, defect, partially healed, or missing knots are allowed. - Cracks: No ring cracks; fine hairline cracks (1–2 mm (0-0.1 in)) are permissible, as are pressure‑treated cracks within tolerance limits. - Resin Pockets: No resin pockets longer than 10 cm (3.9 in) per meter; no dripping or pulling resin, inner bark, rot cavities, or insect holes. - Manufacturing Defects: None, only deviations within the specified tolerances. - Deflection: Deflection will not exceed 1/50 of the member length; impact marks will not exceed 1/100 of the member width. - Twist: Twist will not exceed 2 mm (0.1 in) per meter of length. - Bow Deflection: Bowing will be tolerated between 1/50 and 1/100 of the member length. - Sanding: All visible surfaces will be sanded smooth and free of splinters. The wood will be finished with a white lacquer. Main Supports: Support legs will be fabricated from six pieces of pine lumber, each at least 90 × 90 mm (3.5 x 3.5 in), cut with diamond‑tipped special blades that add a decorative motif. The support legs will be 240 cm (94.5 in) high. Roof: The roof structure of the gazebo will be built from 50 × 100 mm (2 x 3.9 in) wooden rafters. Two corners of each rafter will be shaped on a router. The tops of the rafters will be fastened with wooden sheathing or fiber material, then covered with zinc‑coated membranes secured with wide‑head special nails. The roof will be finished with American cedar‑shingle style shingles attached with wide‑head nails. The eave board will use decorative wooden strips of at least 30 × 130 mm (1.2 x 5.1 in), attached to the roof rafters with galvanized wood screws. The roof frame will be assembled with eight 50 × 50 mm (2 x 2 in) rafters, each cut at specific angles and shaped with diamond‑tipped blades; one end attaches to the main support, the other to the eave board. All fixed connections will use stainless‑steel wood screws; the connections between the main supports and the roof will use specially galvanized wood screws. Pigeon Loft: The loft height is 450 mm (17.7 in). The roof rafters for the loft will be made from 50 × 50 mm (2 x 2 in) wood, with additional 30 × 15 mm (1.2 x 0.6 in) wooden slats placed 30 mm (1.2 in) apart between the upper and lower 50 × 50 mm (2 x 2 in) members. The rafters will be secured with shiplap and zinc‑coated membranes fastened with wide‑head nails, then covered with a shingle material that mimics clover leaf patterns. The eave board will use 90 × 20 mm (3.5 x 0.8 in) decorative wooden pieces shaped with a diamond‑tipped motif blade. Lower Panels (Railing): The lower railing height is 75 cm (29.5 in). Railing frames are made from 50 × 50 mm (2 x 2 in) wood that has been sanded on all sides and edged with a decorative diamond‑cut. They are attached to the main supports with galvanized wood screws. Intermediate decorative pieces are 40 × 50 mm (1.6 x 2 in) wood shaped with a special motif blade and installed with galvanized screws and a clear wood adhesive. Upper Panels: The upper railing width is 35 cm (13.8 in). Upper railing frames are also made from 50 × 50 mm (2 x 2 in) sanded wood with decorative edges, mounted to the main supports with galvanized wood screws. The same 40 × 50 mm (1.6 x 2 in) decorative wood pieces are used and secured with galvanized screws. Seating Unit: The seating unit consists of six wooden legs measuring at least 4 × 9 cm (1.6 x 3.5 in), each leg attached at one end to the main support and at the other end to the seating frame. Four decorative wooden slats per side are shaped with diamond‑tipped motif blades and fastened with galvanized wood screws. Anchoring: Under each support leg a flange of 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) will be welded to a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) plate, which will be drilled for two anchor holes (13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in)) and three 6 mm (0.2 in) screw holes (15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in)). Anchors will be mounted with screws to the base and connected to the floor with steel dowels. This prevents wood from contacting water and secures the support legs to the ground. Gazebo anchors will be fabricated with a minimum 2.5 mm (0.1 in) weld seam, wrapped around at least two sides of the flange. Six special screws will be installed per leg for the vertical connection and two dowel screws per leg for the floor connection. All metal components will be powder‑coated with a polyester‑based finish. Impregnation: Further details not provided.
