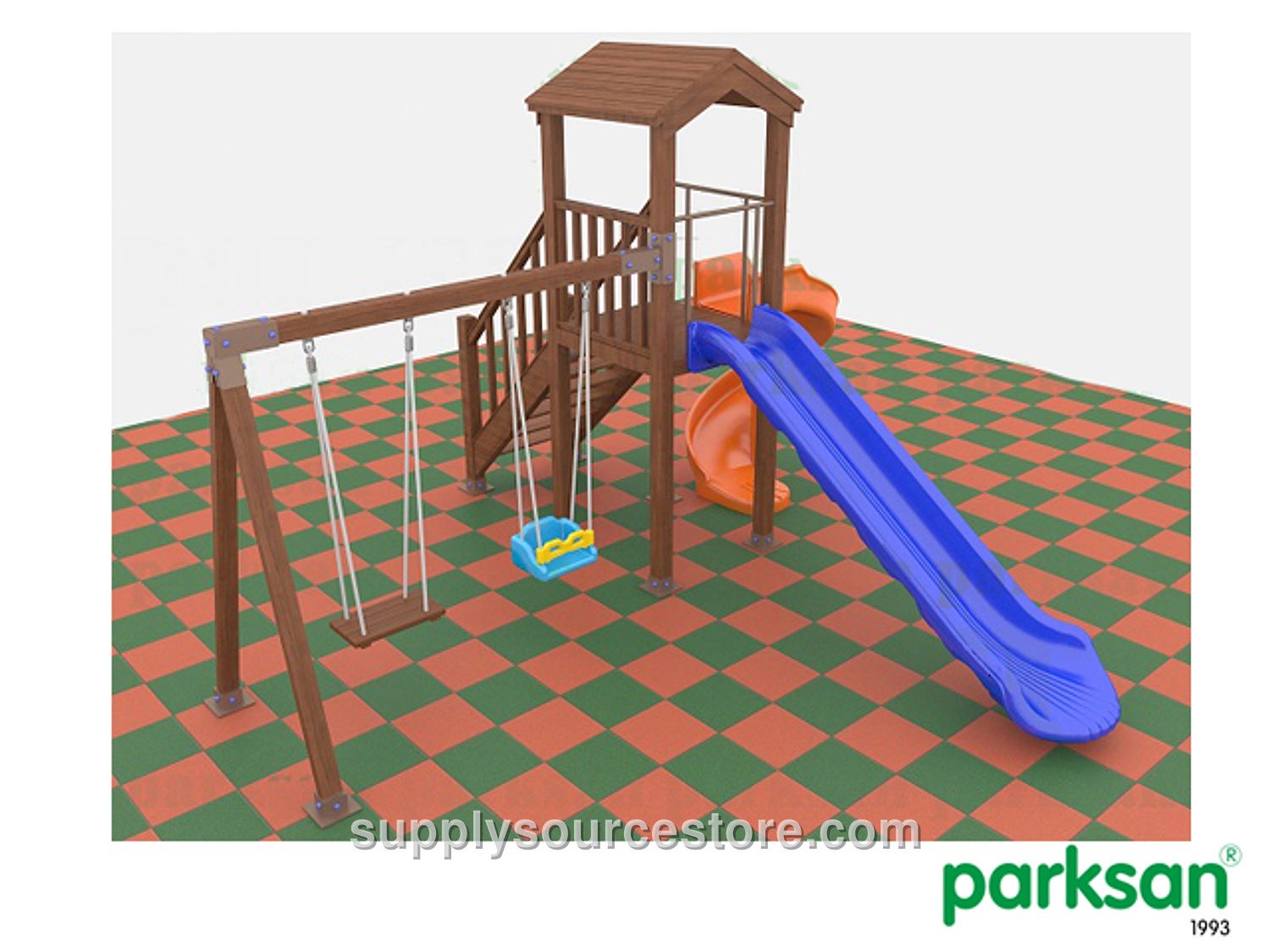

51502 Wooden Playground (Eco Series)
Price on request
SKU: PARKS-0506
Technical Specification – Wooden Playground 51502 (Eco Series) Product Technical Features Seating Area 550×530 cm (217 x 209 in) Safety Area 850×830 cm (335 x 327 in) Peak Height 310 cm (122 in) Slide Connection Height 150 cm (59.1 in) Age Group +3 YEARS Spare Parts - Swing wooden A pipe – 1 piece - Swing wooden carrier pipe – 1 piece - Polyethylene enclosed swing seat – 1 piece - Wooden swing seat – 1 piece - Wooden stair railing – 1 piece - Wooden stair step – 5 pieces - Wooden tower pipe – 4 pieces - Wooden platform – 1 piece - Wooden platform railing – 2 pieces - Wooden roof – 1 piece - Wooden slide entrance – 1 piece - H:150 cm (59.1 in) Polyethylene straight slide – 1 piece - H:150 cm (59.1 in) spiral slide – 1 piece Carrier Construction 1. The carrier uprights are 260 cm (102 in) long with a cross‑section of 9 × 9 cm (3.5 x 3.5 in). 2. Sharp corners and edges of the wooden slats used in the carrier construction are rounded to prevent accidents. 3. The foot anchors for the uprights are fabricated from a 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box profile. 4. All connections will use stainless‑steel wood screws. The screws will be recessed into the wooden slats and covered with polyurethane caps. 5. The wood material is pressure‑treated spruce/pine. Wooden Square Platform 1. The wooden platform measures 110 × 110 cm (43.3 x 43.3 in). 2. The platform is built by surrounding the carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) with wood, then placing two additional 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long slats between each pair of uprights. The remaining gaps are filled with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long slats placed side by side. 3. The wood material is pressure‑treated spruce/pine. Wooden Roof 1. The wooden roof measures 115 × 115 cm (45.3 x 45.3 in) and is 41 cm (16.1 in) high. 2. There is a 152.5 cm (60 in) gap between the lower edge of the roof eaves and the platform. 3. The square roof is formed by overlapping wooden lamellae. 4. The wood material is pressure‑treated spruce/pine. Straight Slide 1. The slide descends from a 100 cm (39.4 in) high platform with a maximum slope of 40°, never exceeding 60°. 2. Total slide width is 65 cm (25.6 in); the sliding section is 50 cm (19.7 in) wide and 240 cm (94.5 in) long. 3. The side walls of the slide are 19 cm (7.5 in) high. 4. At the slide entrance a wooden barrier ensures safe entry for children, and a 35 cm (13.8 in) long level section at the exit reduces the child’s speed. 5. Slides will be mounted to the platform with galvanized bolts; the bolts will be concealed with injection‑molded plastic caps for a cleaner appearance and longer durability. 6. The slide’s connection to the ground is made by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick pipe into a 10 × 22 cm (3.9 x 8.7 in) metal plate that is 4 mm (0.2 in) thick. Swing 1. The swing seating area measures 108 × 270 cm (42.5 x 106 in), with a height of 204 cm (80.3 in). 2. The swing carrier legs are made of wood with a cross‑section of 9 × 9 cm (3.5 x 3.5 in) and a length of 208.5 cm (82.1 in). At the points where the legs meet the ground, a 10 × 10 cm (3.9 x 3.9 in) steel box‑profile plate is used. 3. The piece that connects the two swing carrier legs is a 260 cm (102 in) long, 9 × 9 cm (3.5 x 3.5 in) wooden piece containing two swing attachment brackets for each swing. The connection points also use a 10 × 10 cm (3.9 x 3.9 in) steel box‑profile plate. 4. Two swing seats are provided. One seat is made of polyethylene, is three‑sided closed, and includes a front guard for safety. The other seat is unguarded and made of rubber material. 5. When stationary, the guarded swing is 35 cm (13.8 in) above the ground, while the unguarded swing is 40 cm (15.7 in) above the ground. 6. Swing chains are double‑row and galvanized. Wooden Staircase 1. Steps are 22 cm (8.7 in) deep, 20.5 cm (8.1 in) rise, and 74 cm (29.1 in) wide, created from 4 × 11 cm (1.6 x 4.3 in) wooden slats placed side by side at appropriate lengths. 2. Wooden slats of 4 × 11 cm (1.6 x 4.3 in) will extend from the ground to the platform to form the stair structure. 3. Steps will be positioned with no gaps when viewed from above and will be evenly spaced. 4. The handrail height is 75 cm (29.5 in) above the step surface. 5. Handrail balusters are made from 3 × 9 cm (1.2 x 3.5 in) wood and are spaced every 64 cm (25.2 in). 6. The wood material is pressure‑treated spruce/pine. Wooden Guardrails 1. Guardrails are 3 × 9 cm (1.2 x 3.5 in). 2. A guardrail consists of two horizontal slats (3 × 9 cm (1.2 x 3.5 in), 100 cm (39.4 in) long) and vertical slats (3 × 9 cm (1.2 x 3.5 in), 64 cm (25.2 in) long) joined together. 3. The spacing between vertical slats is 8.9 cm (3.5 in). 4. All edges and corners of the slats are rounded to prevent injuries. 5. The wood material is pressure‑treated spruce/pine.
