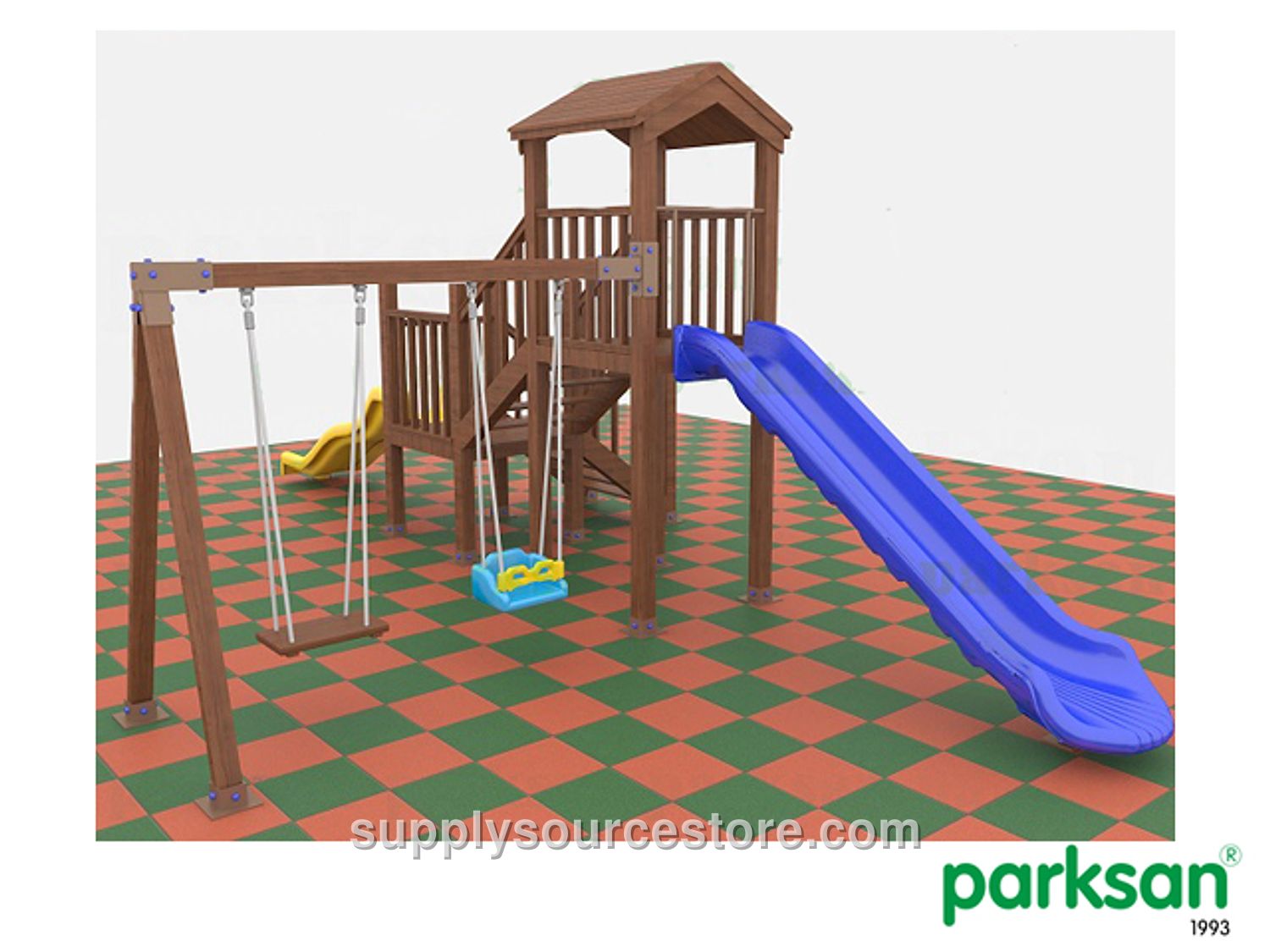

51503 – Wooden Children’s Playground (Eco Series)
Price on request
SKU: PARKS-0505
Product Technical Features Seating Area: 530×830 cm (209 x 327 in) Safety Area: 830×1130 cm (327 x 445 in) Top Height: 310 cm (122 in) Slide Attachment Height: 100-150 cm (39.4-59.1 in) Age Group: 3+ years Spare Parts: - Swing wooden A tube – 1 pcs - Swing wooden carrier tube – 1 pcs - Polyethylene guarded swing seat – 1 pcs - Wooden swing seat – 1 pcs - Wooden stair guard – 2 pcs - Wooden stair step – 10 pcs - Wooden tower pole H:150 cm (59.1 in) – 4 pcs - Wooden tower pole H:100 cm (39.4 in) – 4 pcs - Wooden platform – 2 pcs - Wooden platform guard – 3 pcs - Wooden roof – 1 pcs - Wooden slide entrance – 1 pcs - 150 cm (59.1 in) high polyethylene straight slide – 1 pcs - 100 cm (39.4 in) high wavy slide – 1 pcs Carrier Construction 1. Carrier uprights are 260 cm (102 in) long with 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp corners on the wooden slats used in the carrier construction are rounded to prevent accidents. 3. Brackets at the base of the uprights are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box‑profile steel. 4. All connections use stainless‑steel wood screws, concealed inside the wood and sealed with polyurethane caps. 5. The wood is pressure‑treated pine / fir. Wooden Square Platform 1. The wooden platform measures 110 × 110 cm (43.3 x 43.3 in). 2. When building the platform, carrier uprights of 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long, are wrapped around the perimeter, then two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long pieces are placed between each pair of uprights. The remaining gap is filled with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long slats placed side by side, completing the platform. 3. The wood is pressure‑treated pine / fir. Wooden Roof 1. The wooden roof measures 115 × 115 cm (45.3 x 45.3 in) and is 41 cm (16.1 in) high. 2. There is a 152.5 cm (60 in) gap between the roof eave and the platform. 3. The square roof is formed by overlapping wooden lamellas. 4. The wood is pressure‑treated pine / fir. Dual Slide 1. Designed to descend from a 100 cm (39.4 in) high platform with a maximum slope of 40°, never exceeding 60°. 2. Total slide width is 100 cm (39.4 in); the sliding section is 40 cm (15.7 in) wide and 210 cm (82.7 in) long. 3. Side walls of the slide are 15 cm (5.9 in) high. 4. The intermediate section height is 7 cm (2.8 in). 5. At the slide entrance, a wooden barrier ensures safe entry, and a 35 cm (13.8 in) long flat piece at the exit reduces child speed. 6. Slides are mounted to the platform with galvanized bolts covered by molded plastic washers to maintain appearance and durability. 7. The slide is anchored to the ground by a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick pipe welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Swing 1. Swing seating area measures 108 × 270 cm (42.5 x 106 in), height 204 cm (80.3 in). 2. Swing carrier legs are 9 × 9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long wooden members, with 10 × 10 cm (3.9 x 3.9 in) box‑profile steel plates at ground contact. 3. The connecting piece between swing carrier legs is a 9 × 9 cm (3.5 x 3.5 in), 260 cm (102 in) long wooden member that includes two swing attachment brackets for each swing. Steel plates are used where it meets the carrier legs. 4. Two swing seats are provided: one polyethylene seat with three sides closed and a safety front guard, and one rubber seat without a guard. 5. The protected swing sits 35 cm (13.8 in) above the ground, the open swing 40 cm (15.7 in). 6. Swing chains are double‑row and galvanized. Pull‑Up Bar 1. Total length of the pull‑up bar is 250 cm (98.4 in), width 82 cm (32.3 in). 2. It consists of eight 82 mm (3.2 in) diameter pipes positioned between two parallel wooden carriers, each 9 × 9 cm (3.5 x 3.5 in) and 250 cm (98.4 in) long. 3. A vertical climbing rung is formed by four 82 mm (3.2 in) diameter pipes spaced 25 cm (9.8 in) apart. 4. The pull‑up bar is attached to the main structure and carrier brackets with stainless‑steel wood screws and galvanized bolts. 5. The wood is pressure‑treated pine / fir.
