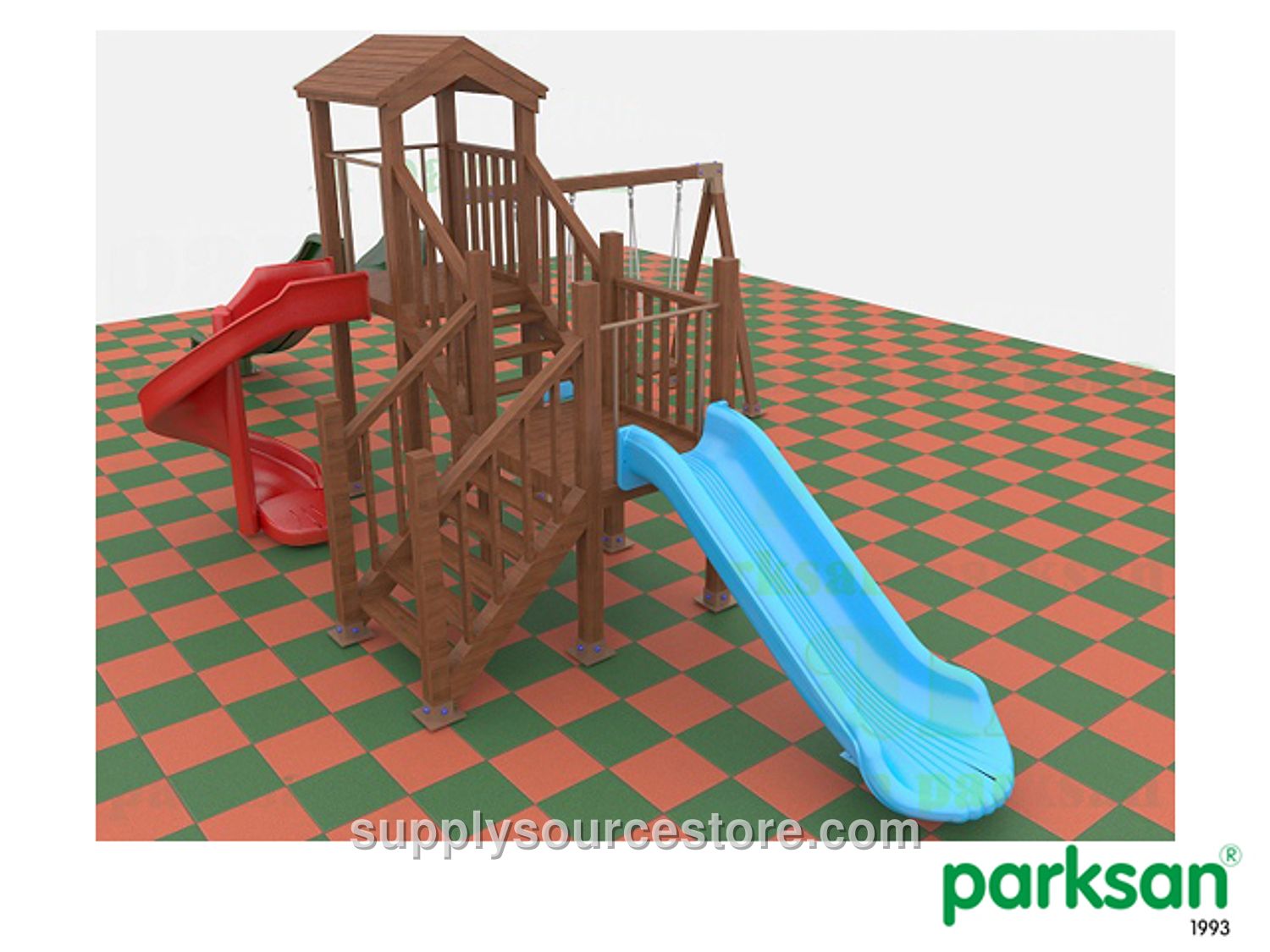

51506 – Wooden Children’s Playground (Eco Series)
Price on request
SKU: PARKS-0502
Technical Specifications Seating Area: 570 × 840 cm (224 x 331 in) Safety Area: 870 × 1140 cm (343 x 449 in) Peak Height: 311 cm (122 in) Slide Connection Height: 100–150 cm (39.4-59.1 in) Age Group: 3+ years Spare Parts: - Wooden swing A pipe (1 pc) - Wooden swing carrier pipe (1 pc) - Polyethylene swing seat with guard (1 pc) - Wooden swing seat (1 pc) - Wooden stair guard (2 pcs) - Wooden stair step (10 pcs) - Wooden tower pipe, height 150 cm (59.1 in) (4 pcs) - Wooden tower pipe, height 100 cm (39.4 in) (4 pcs) - Wooden square platform (2 pcs) - Wooden platform guard (4 pcs) - Wooden roof (1 pc) - Wooden slide entry (3 pcs) - Polyethylene straight slide, height 150 cm (59.1 in) (1 pc) - Polyethylene spiral slide, height 150 cm (59.1 in) (1 pc) - Polyethylene straight slide, height 100 cm (39.4 in) (1 pc) Carrier Construction: 1. Carrier uprights are 260 cm (102 in) long with a cross‑section of 9 × 9 cm (3.5 x 3.5 in). 2. Sharp corners on the wooden beams are rounded to prevent accidents. 3. Anchor plates at the foot of the uprights are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box‑profile steel. 4. The foot sections of the 150 cm (59.1 in) tower uprights are wrapped with 5 × 9 cm (2 x 3.5 in) wood to create a sand pit area of 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long. 5. All connections use stainless‑steel wood screws that are recessed into the wooden beams and covered with polyurethane caps. 6. The wood is pressure‑treated fir / spruce. Wooden Square Platform: - Platform dimensions: 110 × 110 cm (43.3 x 43.3 in). - Platform is built by surrounding the carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) and inserting two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long wooden members between them. The remaining gaps are filled with nine pieces of 4 × 9 cm (1.6 x 3.5 in) wood, each 100 cm (39.4 in) long. - The wood is pressure‑treated fir / spruce. Wooden Roof: - Roof dimensions: 115 × 115 cm (45.3 x 45.3 in), height 41 cm (16.1 in). - Gap between the roof eave and the platform: 152.5 cm (60 in). - Roof is assembled by overlapping wooden lamellas. - The wood is pressure‑treated fir / spruce. Straight Slide: - Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60°. - Total slide width: 65 cm (25.6 in); sliding section width: 50 cm (19.7 in); length: 330 cm (130 in). - Side walls are 16 cm (6.3 in) high. - At the start, a wooden safety barrier guides children onto the slide; at the exit, a 35 cm (13.8 in) flat section reduces speed. - Slides are bolted to the platform with galvanized bolts, concealed with injection‑molded plastic washers. - Slide is anchored to the ground by a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall pipe welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Spiral Slide: - Attached to the 150 cm (59.1 in) platform; the sliding surface is formed as a single piece that never exceeds 60° and averages no more than 40° relative to the slide’s longitudinal axis. - Exit includes a 40 cm (15.7 in) flat section to slow the child. - Overall dimensions: width 110 cm (43.3 in), length 190 cm (74.8 in), sliding section width 45 cm (17.7 in). - Side walls are 20 cm (7.9 in) high. - Installation uses galvanized bolts with concealed plastic washers, and grounding as described for the straight slide. Wave Slide: - Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60°. - Total width: 65 cm (25.6 in); sliding section width: 40 cm (15.7 in); length: 320 cm (126 in). - Side walls are 16 cm (6.3 in) high. - Safety barrier at the start and a 35 cm (13.8 in) flat exit section reduce speed. - Mounted with galvanized bolts and plastic washers; ground connection identical to other slides. Swing: - Seating area: 108 × 270 cm (42.5 x 106 in); height: 204 cm (80.3 in). - Carrier legs: 9 × 9 cm (3.5 x 3.5 in) cross‑section, 208.5 cm (82.1 in) long, made of wood; base plates are 10 × 10 cm (3.9 x 3.9 in) box‑profile steel. - Connecting member between carrier legs: 9 × 9 cm (3.5 x 3.5 in), 260 cm (102 in) long, with two swing‑mount brackets for each swing. - Two swing seats are provided: one polyethylene seat with three‑sided guard, the other a rubber seat without guard. - Height of the guarded swing when static: 35 cm (13.8 in); height of the open swing: 40 cm (15.7 in). - Swing chains are double‑row and galvanized. Wooden Stair: - Steps are...
