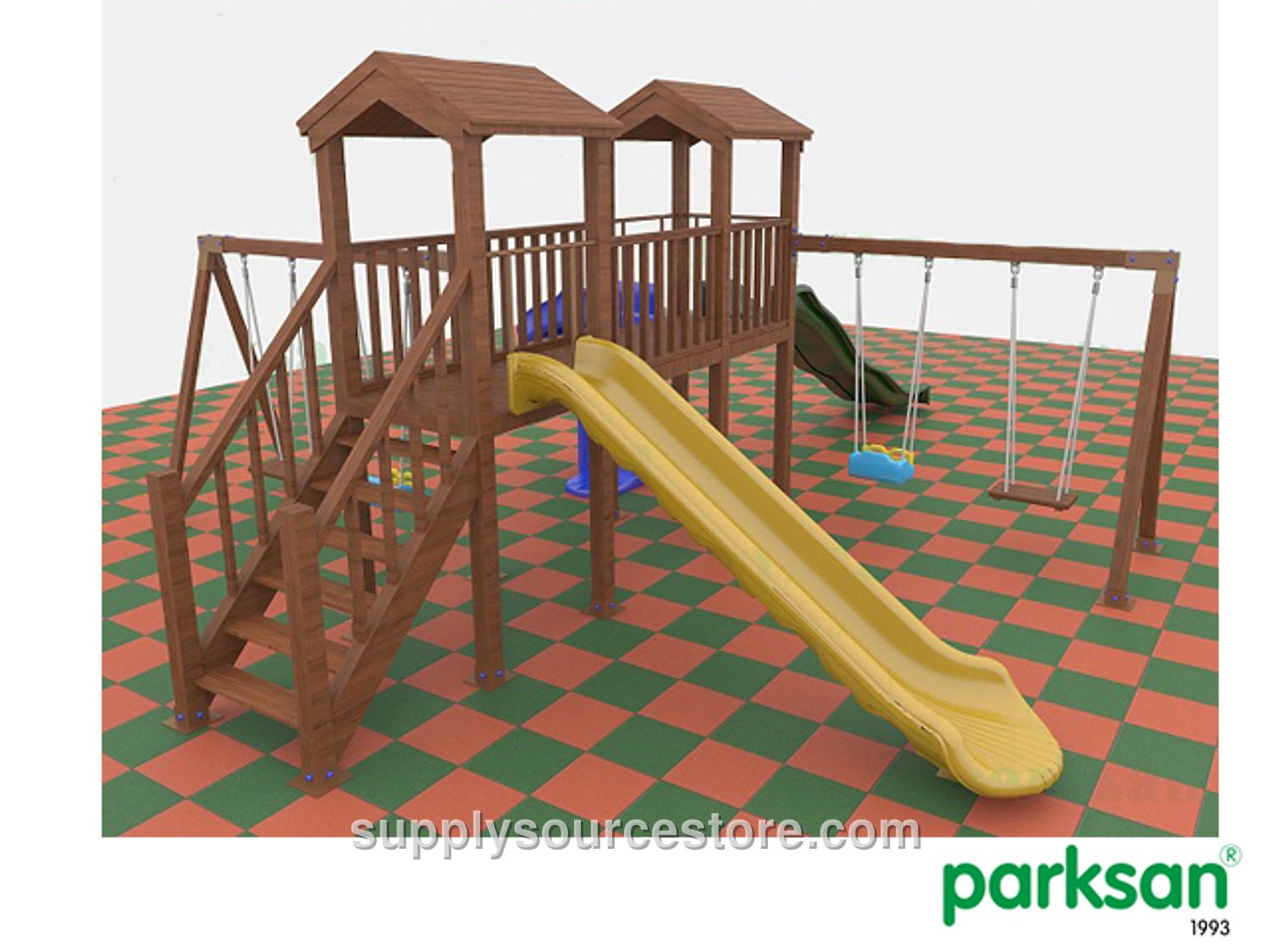

51507 – Wooden Playground (Eco Series)
Price on request
SKU: PARKS-0501
Technical Specifications Seating Area: 730×760 cm (287 x 299 in) Safety Area: 1030×1060 cm (406 x 417 in) Peak Height: 311 cm (122 in) Slide Connection Height: 150‑150 cm (59.1 in) Age Group: 3+ years Spare Parts - Wooden swing A post – 1 piece - Wooden swing carrier pipe – 1 piece - Polyethylene covered swing seat – 1 piece - Wooden swing seat – 1 piece - Wooden stair handrail – 1 piece - Wooden stair step – 6 pieces - H:150 cm (59.1 in) wooden tower pipe – 8 pieces - Wooden square platform – 3 pieces - Wooden platform handrail – 4 pieces - Wooden roof – 2 pieces - Wooden slide entrance – 3 pieces - H:150 cm (59.1 in) polyethylene tube slide – 1 piece - H:150 cm (59.1 in) polyethylene spiral slide – 1 piece - H:150 cm (59.1 in) polyethylene straight slide – 1 piece Carrier Construction 1. The carrier uprights are 260 cm (102 in) long with a 9×9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp corners on the wooden beams are rounded to prevent accidents. 3. The foot anchors are fabricated from 10×10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box profile. 4. The lower sections of the 150 cm (59.1 in) tower uprights are wrapped with 5×9 cm (2 x 3.5 in) wood, 110 cm (43.3 in) long, forming a sand‑pit area. 5. All connections use stainless‑steel wood screws, which are recessed into the beams and sealed with polyurethane caps. 6. The wood is pressure‑treated spruce / fir. Wooden Square Platform - Platform dimensions: 110×110 cm (43.3 x 43.3 in). - Construction details: carrier uprights of 5×9 cm (2 x 3.5 in), 110 cm (43.3 in) long are wrapped around the platform. Between each pair of uprights, two wooden members (4×9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long) are installed. Remaining gaps are filled with nine pieces of 4×9 cm (1.6 x 3.5 in) wood, each 100 cm (39.4 in) long, completing the platform. - Material: pressure‑treated spruce / fir. Wooden Roof - Roof dimensions: 115×115 cm (45.3 x 45.3 in), height 41 cm (16.1 in). - Clearance between the roof eave and the platform: 152.5 cm (60 in). - Constructed by overlapping square roof wooden slats. - Material: pressure‑treated spruce / fir. Twin Slide - Designed to descend from a 100 cm (39.4 in) high platform at a maximum angle of 40°, never exceeding 60°. - Total slide width: 100 cm (39.4 in); sliding section width: 40 cm (15.7 in); length: 210 cm (82.7 in). - Side walls height: 15 cm (5.9 in). - Intermediate section height: 7 cm (2.8 in). - At the slide entrance a wooden safety barrier is provided, and a 35 cm (13.8 in) flat slab at the exit reduces the child’s speed. - Slides are mounted with galvanized bolts; bolts are concealed with injection‑molded plastic washers. - The slide is anchored to the ground by a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick pipe welded to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide - Designed to descend from a 150 cm (59.1 in) high platform at a maximum angle of 40°, never exceeding 60°. - Total slide width: 65 cm (25.6 in); sliding section width: 50 cm (19.7 in); length: 330 cm (130 in). - Side walls height: 16 cm (6.3 in). - Entrance safety barrier and 35 cm (13.8 in) flat exit slab as above. - Mounted and anchored as described for the Twin Slide. Spiral Slide - Connected to a 150 cm (59.1 in) high platform; the sliding surface is manufactured as a single piece such that the incline never exceeds 60° and averages about 40° relative to the slide’s longitudinal axis. - Exit slab of 40 cm (15.7 in) length slows the child’s speed. - Total slide width: 110 cm (43.3 in); length: 190 cm (74.8 in); sliding section width: 45 cm (17.7 in). - Side walls height: 20 cm (7.9 in). - Mounted and anchored as described for the Twin Slide. Wave Slide - Designed to descend from a 150 cm (59.1 in) high platform at a maximum angle of 40°, never exceeding 60°. - Total slide width: 65 cm (25.6 in); sliding section width: 40 cm (15.7 in); length: 320 cm (126 in). - Side walls height: 16 cm (6.3 in). - Entrance safety barrier and 35 cm (13.8 in) flat exit slab as above. - Mounted and anchored as described for the Twin Slide. Swing - Seating area: 108×270 cm (42.5 x 106 in); height: 204 cm (80.3 in). - Carrier legs: 9×9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long wooden members.
