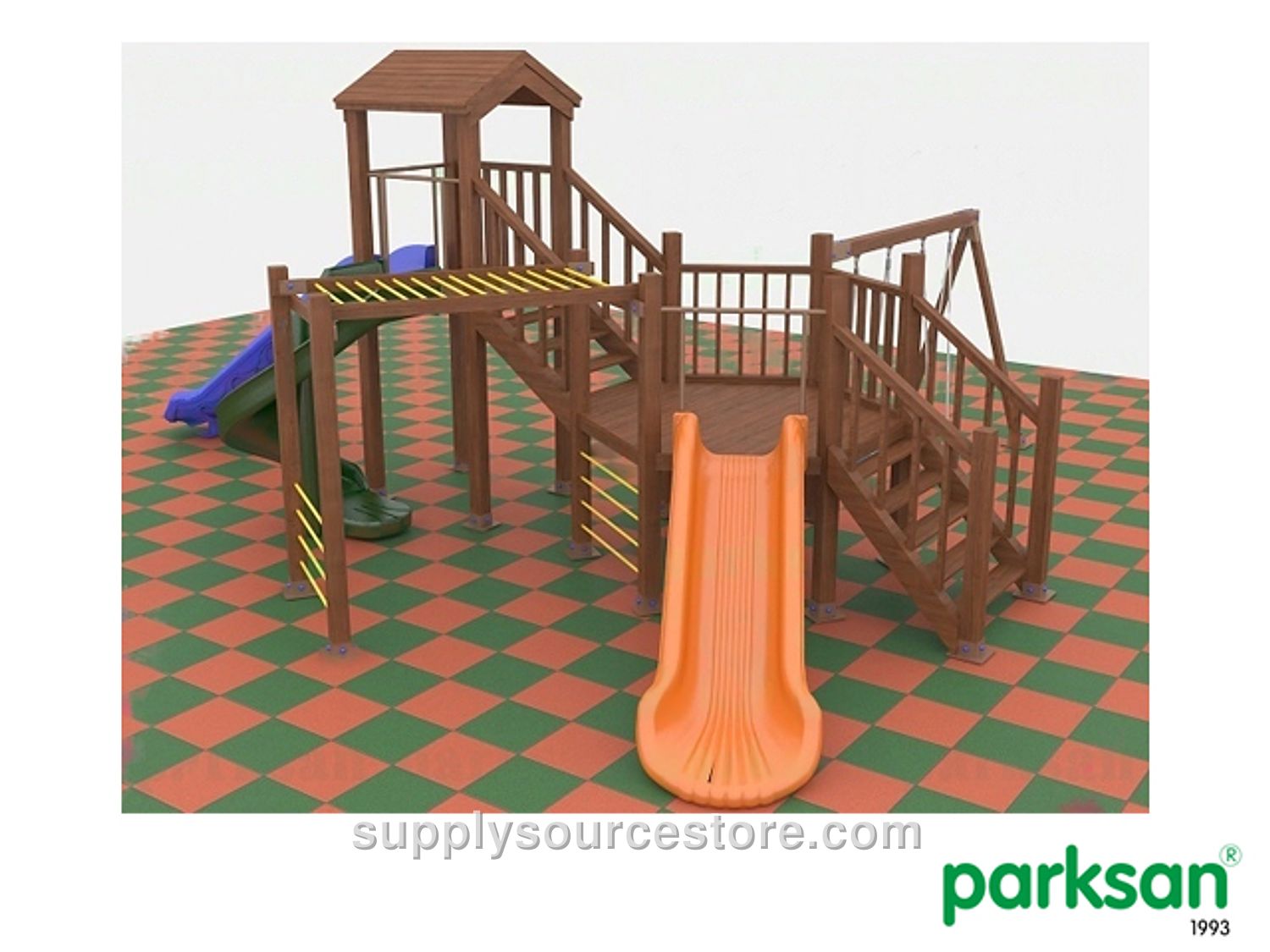

51508 – Wooden Children Playground (Eco Series)
Price on request
SKU: PARKS-0500
Product Technical Specifications Seating Area: 690×820 cm (272 x 323 in) Safety Area: 990×1120 cm (390 x 441 in) Peak Height: 311 cm (122 in) Slide Connection Height: 100-150 cm (39.4-59.1 in) Age Group: 3+ years Spare Parts: - Wooden swing A pipe – 1 piece - Wooden swing transport pipe – 1 piece - Polyethylene-covered swing seat – 1 piece - Wooden swing seat – 1 piece - Wooden stair railing – 2 pieces - Wooden stair step – 10 pieces - Wood tower pipe, H:150 cm (59.1 in) – 4 pieces - Wood tower pipe, H:100 cm (39.4 in) – 6 pieces - Wooden hexagon platform – 1 piece - Wooden platform railing – 3 pieces - Wooden roof – 1 piece - Wooden slide entry – 2 pieces - Polyethylene straight slide, H:150 cm (59.1 in) – 1 piece - Polyethylene spiral slide, H:150 cm (59.1 in) – 1 piece - Polyethylene straight slide, H:100 cm (39.4 in) – 1 piece - Pull‑up bar climbing element, H:100 cm (39.4 in) – 1 piece Carrier Construction 1. The carrier uprights are 260 cm (102 in) long with a 9×9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp edges on the wooden beams used in the carrier construction are rounded to prevent accidents. 3. Anchors at the base of the uprights are made from 10×10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box profiles. 4. The foot sections of the 150 cm (59.1 in) tower uprights are wrapped with 5×9 cm (2 x 3.5 in) wood pieces, 110 cm (43.3 in) long, to create space for a sand pit. 5. All joints use stainless‑steel wood screws that are recessed into the wood and covered with polyurethane caps. 6. The wood is pressure‑treated spruce / fir. Wooden Square Platform 1. Platform dimensions are 110×110 cm (43.3 x 43.3 in). 2. The platform is built by surrounding the carrier uprights (5×9 cm (2 x 3.5 in), 110 cm (43.3 in) long) and inserting two 4×9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long wooden members between them. The remaining gap is filled with nine 4×9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long wooden pieces placed side by side. 3. The wood is pressure‑treated spruce / fir. Wooden Roof 1. Roof dimensions are 115×115 cm (45.3 x 45.3 in) with a height of 41 cm (16.1 in). 2. There is a 152.5 cm (60 in) gap between the roof eaves and the platform. 3. The square roof is formed by overlapping wooden slats. 4. The wood is pressure‑treated spruce / fir. Dual Slide 1. Designed to descend from a 100 cm (39.4 in) high platform at a maximum slope of 40°, never exceeding 60°. 2. Total slide width 100 cm (39.4 in); sliding section width 40 cm (15.7 in); length 210 cm (82.7 in). 3. Side walls are 15 cm (5.9 in) high. 4. The intermediate section is 7 cm (2.8 in) high. 5. At the slide entry, a wooden barrier ensures safe entry, and a 35 cm (13.8 in) flat surface at the exit reduces the child's speed. 6. Slides are mounted with galvanized bolts; the bolt heads are covered with injection‑molded plastic washers. 7. The slide is anchored to the ground with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick pipe welded to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide 1. Designed to descend from a 150 cm (59.1 in) high platform at a maximum slope of 40°, never exceeding 60°. 2. Total slide width 65 cm (25.6 in); sliding section width 50 cm (19.7 in); length 330 cm (130 in). 3. Side walls are 16 cm (6.3 in) high. 4. Entry barrier and 35 cm (13.8 in) flat exit surface as above. 5. Mounted with galvanized bolts with plastic washers. 6. Ground connection as described above. Spiral Slide 1. The slide attached to a 150 cm (59.1 in) high platform is manufactured in one piece so that the angle of the sliding surface never exceeds 60° and averages around 40° relative to the slide’s longitudinal axis. 2. A 40 cm (15.7 in) flat surface at the exit reduces speed. 3. Total width 110 cm (43.3 in); length 190 cm (74.8 in); sliding section width 45 cm (17.7 in). 4. Side walls are 20 cm (7.9 in) high. 5. Mounted with galvanized bolts and plastic washers. 6. Ground connection as described above. Wave Slide 1. Designed to descend from a 150 cm (59.1 in) high platform at a maximum slope of 40°, never exceeding 60°. 2. Total slide width 65 cm (25.6 in); sliding section width 40 cm (15.7 in); length 320 cm (126 in). 3. Side walls are 16 cm (6.3 in) high. 4. Entry barrier and 35 cm (13.8 in) flat exit surface as above. 5. Mounted with galvanized bolts and plastic washers. 6. Ground connection as described above. Swing 1. Swing seating area measures 108×270 cm (42.5 x 106 in), height 204 cm (80.3 in).
