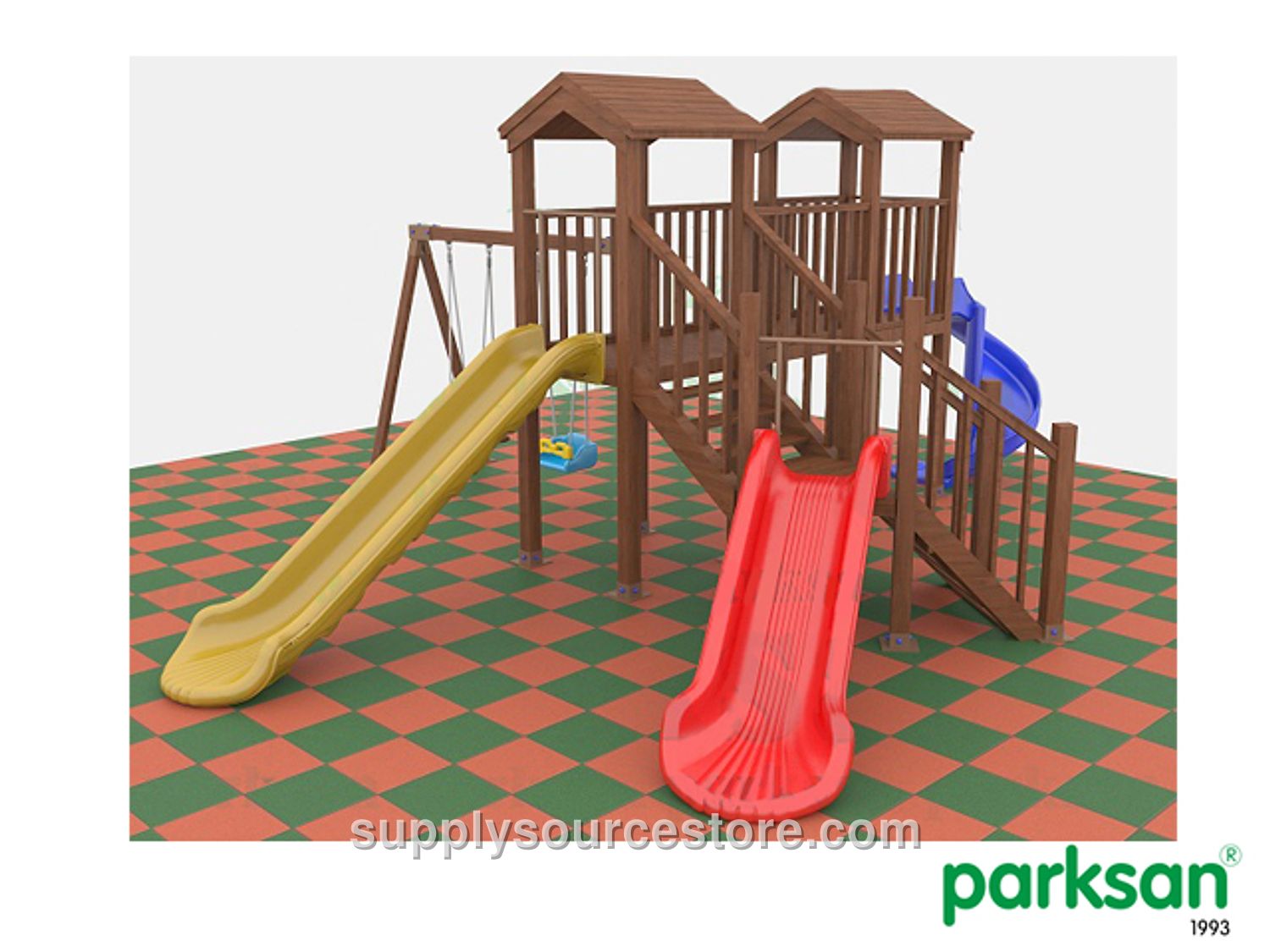

51509 – Wooden Playground (Eco Series)
Price on request
SKU: PARKS-0499
Product Technical Specifications Seating Area: 730 × 760 cm (287 x 299 in) Safety Area: 1030 × 1060 cm (406 x 417 in) Peak Height: 311 cm (122 in) Slide Connection Height: 100‑150‑150 cm (59.1 in) Age Group: +3 Years Spare Parts: - Wooden swing A pipe – 1 piece - Wooden swing carrier pipe – 1 piece - Polyethylene swing seat with guard – 1 piece - Wooden swing seat – 1 piece - Wooden stair guard – 2 pieces - Wooden stair step – 10 pieces - 150 cm (59.1 in) wooden tower pipe – 8 pieces - Wooden square platform – 3 pieces - Wooden platform guard – 5 pieces - Wooden roof – 2 pieces - Wooden slide entrance – 3 pieces - 150 cm (59.1 in) polyethylene straight slide – 1 piece - 150 cm (59.1 in) polyethylene spiral slide – 1 piece - 150 cm (59.1 in) polyethylene straight slide – 1 piece Carrier Construction: 1. Carrier uprights are 260 cm (102 in) long with a cross‑section of 9 × 9 cm (3.5 x 3.5 in). 2. Sharp edges on the wooden laths used in the carrier structure are rounded to prevent accidents. 3. Anchor blocks at the base of the uprights are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box‑profile steel. 4. The base of the 150 cm (59.1 in) tower uprights is wrapped with 5 × 9 cm (2 x 3.5 in) wooden pieces, 110 cm (43.3 in) long, to create space for a sand pit. 5. All joints use stainless‑steel wood screws that are recessed into the laths and covered with polyurethane caps. 6. The wood is pressure‑treated spruce / fir. Wooden Square Platform: 1. Platform dimensions are 110 × 110 cm (43.3 x 43.3 in). 2. The platform is built by surrounding the carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) with wood, then placing two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long members between them. The remaining gaps are filled with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long pieces placed side‑by‑side. 3. The wood is pressure‑treated spruce / fir. Wooden Roof: 1. Roof dimensions are 115 × 115 cm (45.3 x 45.3 in) with a height of 41 cm (16.1 in). 2. There is a 152.5 cm (60 in) gap between the lower edge of the roof overhang and the platform. 3. The square roof is formed by overlapping wooden lamellas. 4. The wood is pressure‑treated spruce / fir. Dual Slide: 1. Designed to descend from a 100 cm (39.4 in) high platform with a maximum slope of 40°, never exceeding 60°. 2. Total width 100 cm (39.4 in); slide width 40 cm (15.7 in); length 210 cm (82.7 in). 3. Side walls are 15 cm (5.9 in) high. 4. Intermediate section height is 7 cm (2.8 in). 5. A wooden barrier at the slide entrance ensures safe entry, and a 35 cm (13.8 in) flat surface at the exit slows the child’s speed. 6. Slides are mounted with galvanized bolts; the bolt heads are concealed with injection‑molded plastic washers. 7. The slide is anchored to the ground with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter pipe (wall thickness 2 mm (0.1 in)) welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide: 1. Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60°. 2. Total width 65 cm (25.6 in); slide width 50 cm (19.7 in); length 330 cm (130 in). 3. Side walls are 16 cm (6.3 in) high. 4. A wooden barrier at the entrance and a 35 cm (13.8 in) flat surface at the exit provide safe entry and speed control. 5. Galvanized bolts and plastic washers are used as described for the dual slide. 6. Ground attachment is identical to the dual slide. Spiral Slide: 1. Attached to a 150 cm (59.1 in) high platform, the slide’s angle never exceeds 60° and averages about 40° along its length. 2. A 40 cm (15.7 in) flat surface at the exit reduces the child’s speed. 3. Total width 110 cm (43.3 in); length 190 cm (74.8 in); slide width 45 cm (17.7 in). 4. Side walls are 20 cm (7.9 in) high. 5. Installation uses galvanized bolts with plastic washers as above. 6. Ground anchoring follows the same method as the other slides. Wavy Slide: 1. Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60°. 2. Total width 65 cm (25.6 in); slide width 40 cm (15.7 in); length 320 cm (126 in). 3. Side walls are 16 cm (6.3 in) high. 4. Entry barrier and 35 cm (13.8 in) exit flat surface ensure safety and speed control. 5. Galvanized bolts with plastic washers are used for mounting. 6. Ground connection identical to other slides. Swing: 1. Seating area is 108 × 270 cm (42.5 x 106 in); height is 204 cm (80.3 in). 2. Support legs are 9 × 9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long, made from wooden material.
