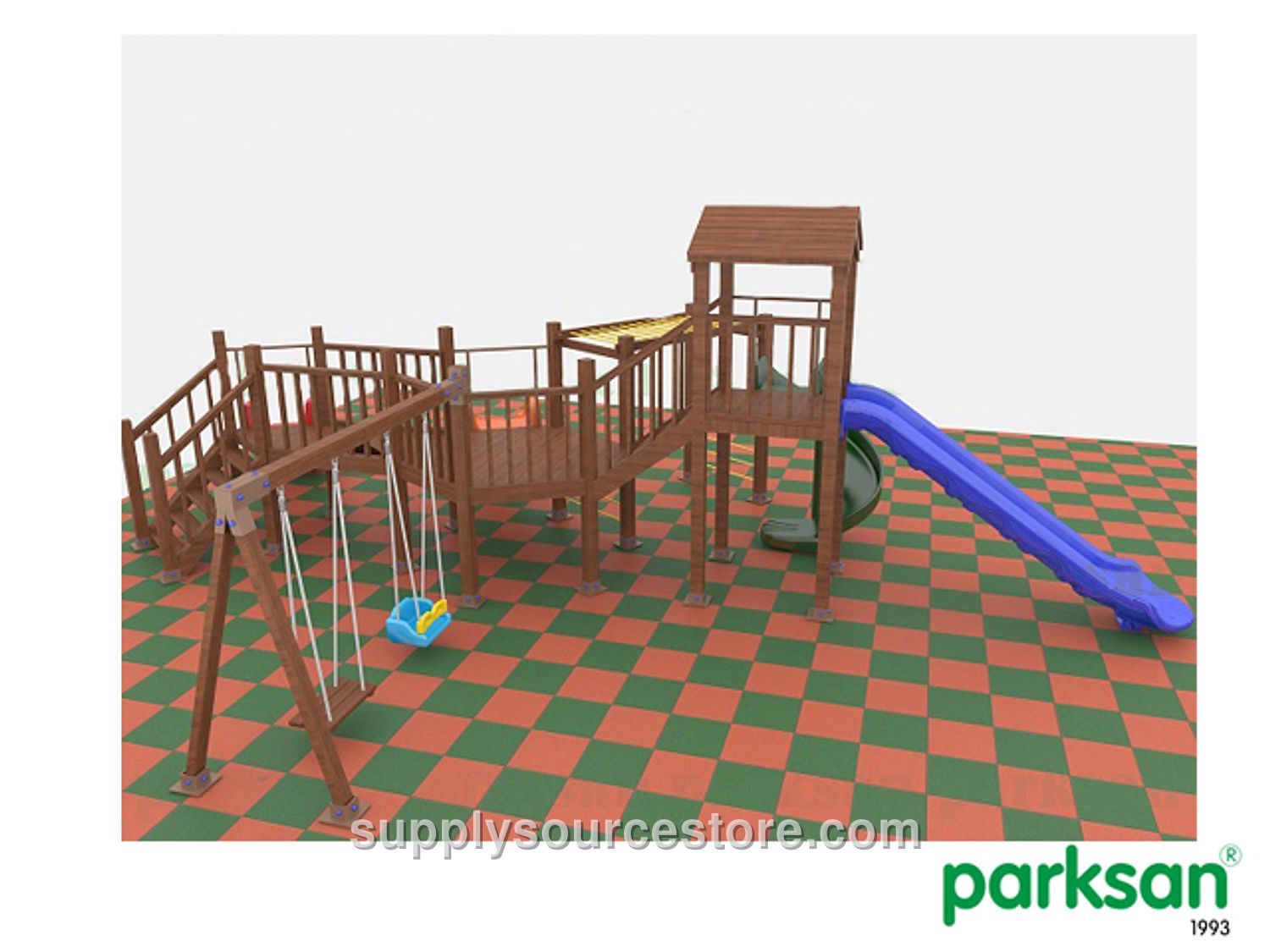

51510 – Wooden Playground Set (Eco Series)
Price on request
SKU: PARKS-0498
Product Technical Specifications Seating Area 770 × 1020 cm (303 x 402 in) Safety Area 1070 × 1320 cm (421 x 520 in) Peak Height 311 cm (122 in) Slide Connection Height 100‑150 cm (59.1 in) Age Group +3 Years Spare Parts - 1 wooden swing A pipe - 1 wooden swing carrier pipe - 1 polyethylene guarded swing seat - 1 wooden swing seat - 2 wooden stair guards - 10 wooden stair steps - 8 wooden tower pipes (100 cm (39.4 in)) - 4 wooden tower pipes (150 cm (59.1 in)) - 2 wooden square platforms - 1 wooden triangular platform - 1 wooden hexagonal platform - 5 wooden platform guards - 1 wooden roof - 3 wooden slide entries - 1 polyethylene wavy slide (100 cm (39.4 in)) - 1 polyethylene straight slide (150 cm (59.1 in)) - 1 polyethylene spiral slide (150 cm (59.1 in)) - 1 polyethylene straight slide (100 cm (39.4 in)) - 1 pull‑up bar climbing element (100 cm (39.4 in)) Carrier Construction 1. The carrier uprights are 260 cm (102 in) long with a cross‑section of 9 × 9 cm (3.5 x 3.5 in). 2. Sharp corners and edges on the wooden slats used in the carrier construction are rounded to prevent accidents. 3. The anchors at the base of the uprights are made from 2 mm (0.1 in) thick box‑profile steel with dimensions of 10 × 10 cm (3.9 x 3.9 in). 4. The foot section of the 150 cm (59.1 in) tower uprights is wrapped with 5 × 9 cm (2 x 3.5 in) wood, forming a sand‑filled area of 110 cm (43.3 in) length. 5. All connection points use stainless‑steel wood screws that are recessed inside the wooden slats and sealed with polyurethane caps. 6. The wood material is pressure‑treated pine / spruce. Wooden Square Platform - The platform measures 110 × 110 cm (43.3 x 43.3 in). - The platform is built by surrounding the carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) with wood, inserting two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long wooden members between the uprights, and filling the remaining space with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long wooden pieces placed side‑by‑side. - The wood material is pressure‑treated pine / spruce. Wooden Roof - The roof measures 115 × 115 cm (45.3 x 45.3 in) and is 41 cm (16.1 in) high. - There is a 152.5 cm (60 in) gap between the lower edge of the roof overhang and the platform. - The square roof is formed by overlapping wooden lamellas. - The wood material is pressure‑treated pine / spruce. Dual Slide - Designed to descend from a 100 cm (39.4 in) high platform with a maximum slope of 40° and no point exceeding 60°. - Total slide width is 100 cm (39.4 in); slide section width is 40 cm (15.7 in); length is 210 cm (82.7 in). - Side walls are 15 cm (5.9 in) high. - The intermediate section height is 7 cm (2.8 in). - At the slide entrance, a wooden barrier ensures safe entry, and a 35 cm (13.8 in) flat section at the exit reduces the child’s speed. - Slides are mounted to the platform with galvanized bolts; the bolt heads are covered with injection‑molded plastic washers for a clean look and durability. - The slide is anchored to the ground by a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick pipe welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide - Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40° and no point exceeding 60°. - Total slide width is 65 cm (25.6 in); slide section width is 50 cm (19.7 in); length is 330 cm (130 in). - Side walls are 16 cm (6.3 in) high. - The entrance includes a wooden safety barrier, and a 35 cm (13.8 in) flat section at the exit controls speed. - Installation uses galvanized bolts with injection‑molded plastic washers. - Ground connection is the same 23 cm (9.1 in) pipe and metal plate assembly as described above. Spiral Slide - The spiral slide attached to a 150 cm (59.1 in) high platform is fabricated as a single piece so that the angle of the slide section never exceeds 60°, with an average of 40°. - A 40 cm (15.7 in) flat section at the exit reduces the child’s speed. - Total slide width is 110 cm (43.3 in), length is 190 cm (74.8 in), and slide section width is 45 cm (17.7 in). - Side walls are 20 cm (7.9 in) high. - The slide is secured with galvanized bolts and plastic washers. - Ground anchoring follows the same pipe‑to‑metal‑plate method as above. Wavy Slide - Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40° and no point exceeding 60°. - Total slide width is 65 cm (25.6 in); slide section width is 40 cm (15.7 in); length is 320 cm (126 in). - Side walls are 16 cm (6.3 in) high. - The entrance includes a wooden safety barrier, and a 35 cm (13.8 in) flat section at the exit controls speed. - Installation uses galvanized bolts with plastic washers. - Ground connection uses the same 23 cm (9.1 in) pipe and metal plate assembly.
