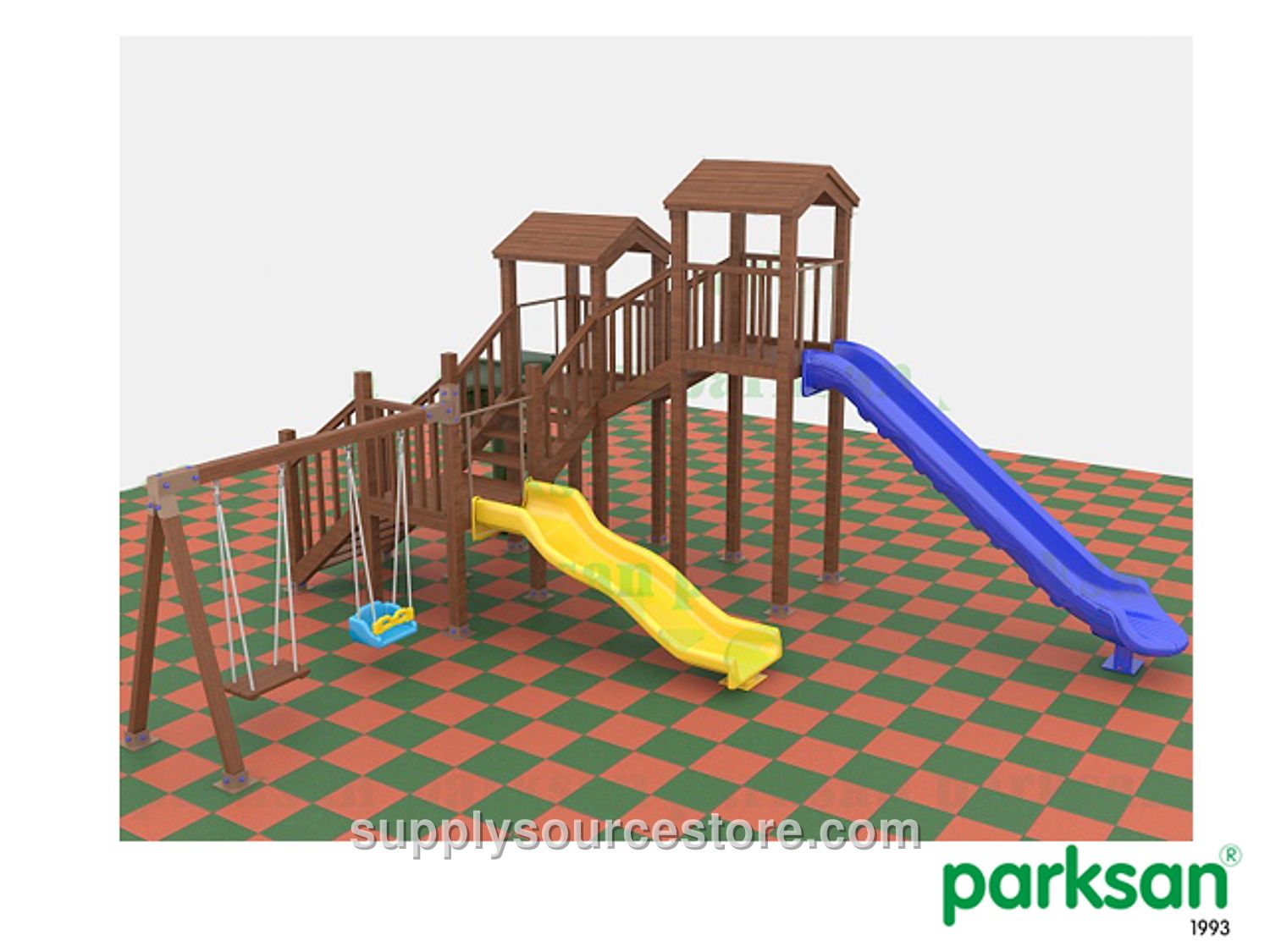

51511 Wooden Playground (Eco Series)
Price on request
SKU: PARKS-0497
Product Technical Specifications Seating Area: 700×800 cm (276 x 315 in) Safety Area: 1000×1100 cm (394 x 433 in) Peak Height: 390 cm (154 in) Slide Connection Height: 100‑150‑200 cm (78.7 in) Age Group: 3+ years Spare Parts: - Wooden swing A tube – 1 piece - Wooden swing carrier tube – 1 piece - Polyethylene swing seat with guard – 1 piece - Wooden swing seat – 1 piece - Wooden stair guard – 3 pieces - Wooden stair step – 15 pieces - Wooden tower tube, H:100 cm (39.4 in) – 4 pieces - Wooden tower tube, H:150 cm (59.1 in) – 4 pieces - Wooden tower tube, H:200 cm (78.7 in) – 4 pieces - Wooden square platform – 3 pieces - Wooden platform guard – 4 pieces - Wooden roof – 2 pieces - Wooden slide entrance – 3 pieces - Polyethylene wavy slide, H:100 cm (39.4 in) – 1 piece - Polyethylene spiral slide, H:150 cm (59.1 in) – 1 piece - Polyethylene straight slide, H:200 cm (78.7 in) – 1 piece Carrier Construction: 1. Carrier uprights are 260 cm (102 in) long with a 9×9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp edges on the wooden slats used in the carrier structure are rounded to prevent accidents. 3. Anchor blocks at the base of the uprights are made from 10×10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick square profile. 4. The base of the 150 cm (59.1 in) tower uprights is wrapped with 5×9 cm (2 x 3.5 in) wood to create a sand‑pit area of 5×9 cm (2 x 3.5 in), 110 cm (43.3 in) long. 5. All connections use stainless‑steel wood screws that are recessed into the slats and covered with polyurethane caps. 6. The wood is pressure‑treated pine / fir. Wooden Square Platform: - The platform measures 110×110 cm (43.3 x 43.3 in). - It is built by surrounding the carrier uprights (5×9 cm (2 x 3.5 in), 110 cm (43.3 in) long) with wood, then placing two 4×9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long wooden members between each pair of uprights. The remaining gaps are filled with nine 4×9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long wooden pieces placed side‑by‑side. - The wood is pressure‑treated pine / fir. Wooden Roof: - The roof measures 115×115 cm (45.3 x 45.3 in) and is 41 cm (16.1 in) high. - There is a 152.5 cm (60 in) clearance between the underside of the roof eave and the platform. - The square roof is formed by overlapping wooden lamellas. - The wood is pressure‑treated pine / fir. Dual Slide (Straight Slide): - Designed to descend from a 100 cm (39.4 in) high platform with a maximum slope of 40° and no point exceeding 60°. - Total width: 100 cm (39.4 in); slide width: 40 cm (15.7 in); length: 210 cm (82.7 in). - Side walls are 15 cm (5.9 in) high. - The intermediate section is 7 cm (2.8 in) high. - At the slide entrance, a wooden barrier ensures safe entry, and a 35 cm (13.8 in) flat plate at the exit reduces the child’s speed. - Slides are mounted with galvanized bolts; the bolts are concealed with injection‑molded plastic washers. - The slide is anchored to the ground with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick tube welded to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide: - Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40° and no point exceeding 60°. - Total width: 65 cm (25.6 in); slide width: 50 cm (19.7 in); length: 330 cm (130 in). - Side walls are 16 cm (6.3 in) high. - A 35 cm (13.8 in) flat plate at the entrance provides safe entry, and another at the exit slows the child. - Installation uses galvanized bolts covered with plastic washers. - Ground connection is identical to the dual slide. Spiral Slide: - Connected to a 150 cm (59.1 in) high platform; the slide’s slope never exceeds 60° and averages no more than 40°. - A 40 cm (15.7 in) flat plate at the exit reduces speed. - Total width: 110 cm (43.3 in); length: 190 cm (74.8 in); slide width: 45 cm (17.7 in). - Side walls are 20 cm (7.9 in) high. - Mounted with galvanized bolts concealed by plastic washers. - Ground anchoring follows the same method as other slides. Wavy Slide: - Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40° and no point exceeding 60°. - Total width: 65 cm (25.6 in); slide width: 40 cm (15.7 in); length: 320 cm (126 in). - Side walls are 16 cm (6.3 in) high. - A 35 cm (13.8 in) flat plate at the entrance ensures safe entry, and another at the exit slows the child. - Installed with galvanized bolts and plastic washers. - Ground connection identical to other slides. Swing: - Seating area: 108×270 cm (42.5 x 106 in); height: 204 cm (80.3 in). -... (additional swing details would follow here).
