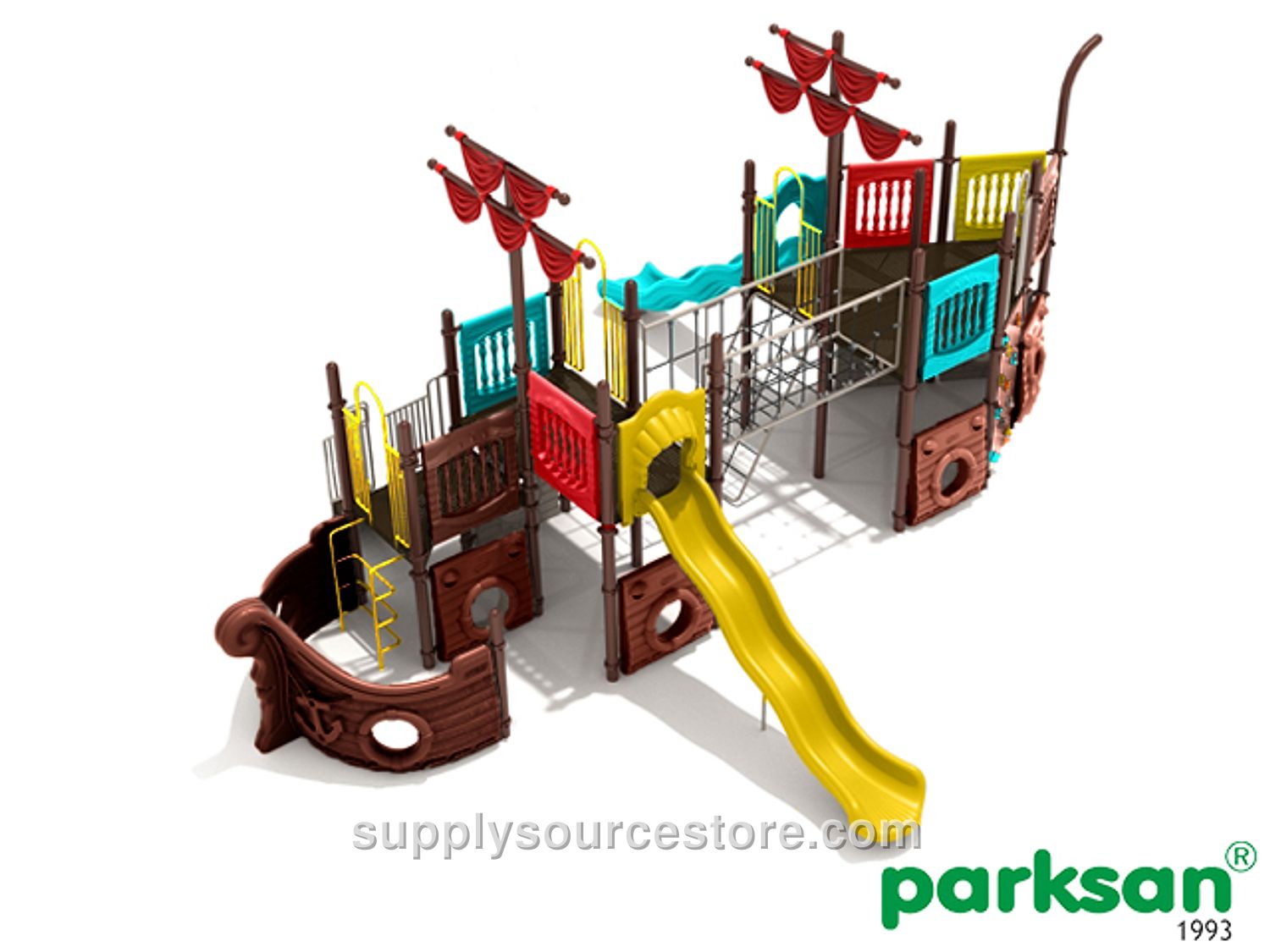

Children's Playground - Ship Series
Price on request
SKU: PS-0050709
Product Technical Specifications Age Range: 5-12 years Fall Height: 180 cm (70.9 in) Safety Area: 162 m (6378 in)² Product Spare Parts • Polyethylene Ship Nose Assembly – 1 piece • Polyethylene Ship Panel – 7 pieces • Polyethylene Deck Barrier – 7 pieces • Stair Step – 5 pieces • Metal Stair Railing – 1 piece • Metal Square Platform – 5 pieces • Metal Triangular Platform – 4 pieces • 150 cm (59.1 in) Wave Slide – 2 pieces • Metal Climbing Entrance – 4 pieces • Metal Climbing Element – 4 pieces • 150 cm (59.1 in) Tower Tube – 17 pieces • Polyethylene Ship Figure – 2 pieces • Rope Crossing Bridge – 1 piece Polyethylene Products Low‑density linear polyethylene (LLDPE) is a thermoplastic used in various products. It is a semi‑permeable, softening, highly durable polymer that is inexpensive and highly resistant, making it popular in industry. Polyethylene is classified according to density and chemical properties. Its mechanical characteristics depend on molecular weight, crystal structure and branching type. Although properties vary by type, general features include good resistance to outdoor conditions and moisture, flexibility, low mechanical strength, and excellent chemical resistance. Polyethylene is used for slides, stairs, railings, barriers, accessories, roofs, etc. To prevent color fading, the masterbatch pigments used for coloring must have a light fastness value of 6 or higher. The material thickness must be at least 6 mm (0.2 in) for parts exposed to pressure and friction, and at least 4 mm (0.2 in) for non‑load‑bearing barrier and shade components. Thickness tolerance is ±5 %. Carrier Construction The carrier construction consists of steel tubes with a minimum diameter of 114 mm (4.5 in), wall thickness of at least 2 mm (0.1 in), cold‑formed according to TS EN 10219‑2, TS‑6476, DIN 2394 standards, and welded by high‑frequency welding. The tubes are sandblasted and then coated with a polyester‑based electrostatic powder paint applied in a furnace. Electrostatic Powder Coating All metal components are sandblasted to remove oil, dirt, and rust, creating a porous surface for better paint adhesion. A fine‑ball powder is introduced with pressurized air to open pores and clean the metal. After forming, the components are coated with polyester‑based electrostatic paint and baked at 200‑220 °C for 20 minutes. Following fabrication, metal parts undergo a 10‑minute, 70 °C, 5 % degreasing bath, then a 15‑minute, 50 °C, 1 % iron bath, followed by rinsing and drying. Finally, the entire assembly is painted in a single coat and cured at 180‑200 °C for 20‑30 minutes to ensure corrosion‑free welds.
