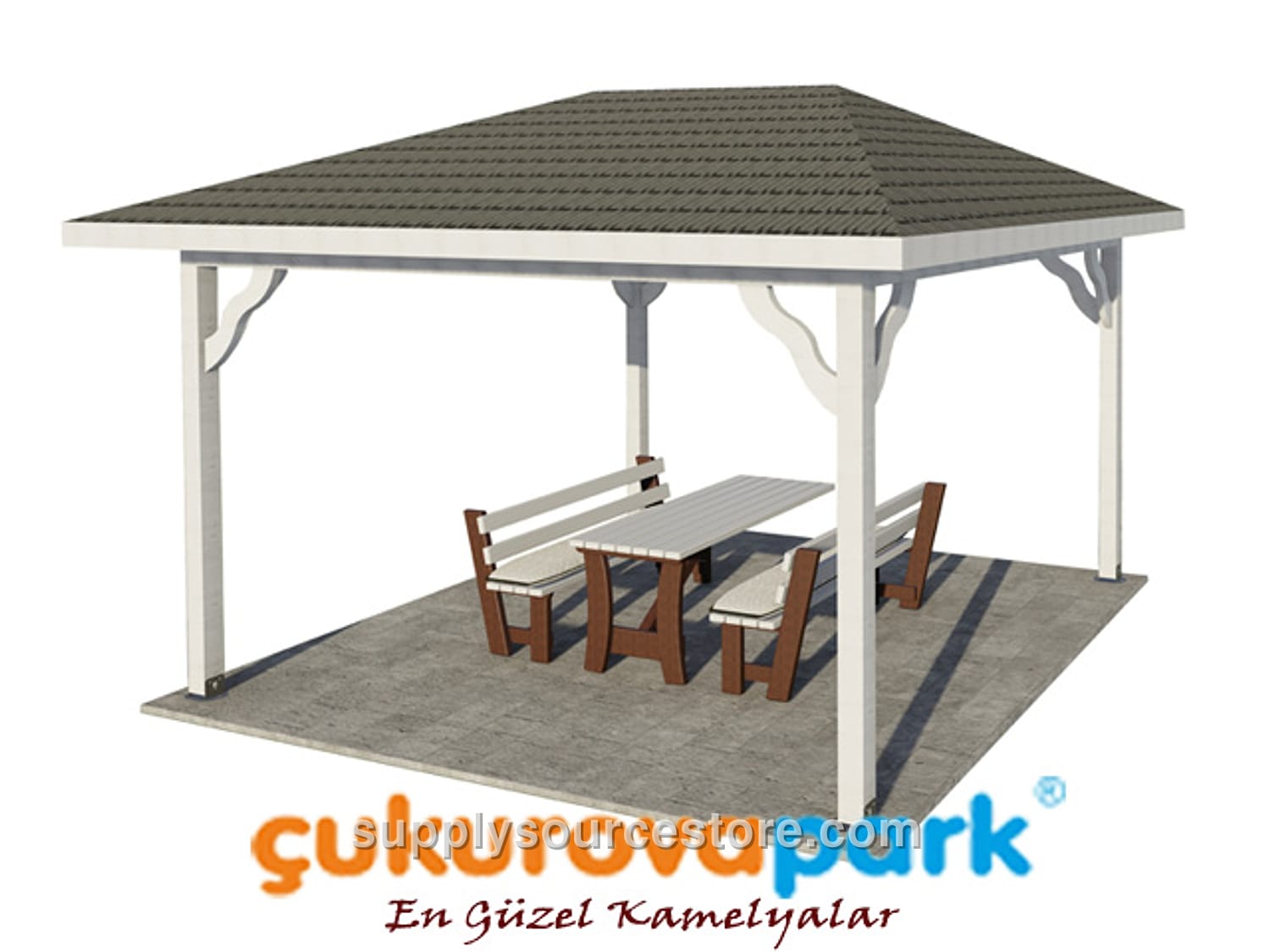

White Wooden Gazebo 300x300x250 (L×W×H)
Price on request
SKU: SS-012804
Product Features – Session Area: 300 × 300 cm (118 x 118 in); Roof Size: 370 × 370 cm (146 x 146 in); Height: 330 cm (130 in). Wood: First‑class pine/fir, finished in white. Roof covering: Special roofing material composed of shingle or fiberglass over cladding, with gray‑colored shingles. Seating unit: None. Table: None. Wood characteristics: The gazebo is constructed from first‑class Scots pine (Pinus sylvestris) lumber. Wood sections are cut to a maximum tolerance of ±2 mm (0.1 in), and overall dimensions to ±20 mm (0.8 in). Required wood properties include: - Knots: Up to four solid knots per meter, total knot diameter not exceeding one‑quarter of the piece width; no rotten, split, partially fused, or fallen knots. - Cracks: No ring cracks; micro‑cracks of 1–2 mm (0-0.1 in) are permissible. Pressure‑treated cracks are allowed within tolerance limits. - Resin pockets: Maximum one pocket per meter, not longer than 10 cm (3.9 in); no leaking or pulling resin. - No inner bark, rot holes, insect holes, or manufacturing defects beyond the specified tolerances. - Deflection: Not to exceed 1/50 of the member length; impact dents not to exceed 1/100 of the member width. - Twist: Not to exceed 2 mm (0.1 in) per meter of length. - Bow: Between 1/50 and 1/100 of the member length. - Sanding: All visible surfaces are sanded smooth and painted with white lacquer. Main carriers: Four carrier legs made from 90 × 90 mm (3.5 x 3.5 in) pine lumber, machined with diamond‑tipped knives to create a motif. Leg height is 240 cm (94.5 in). Roof structure: Support slats are 50 × 100 mm (2 x 3.9 in) wood, with two corners routed for shaping. Slats are fastened with wood screws to the cladding or fiber material. Shingles (American Kiremidi) are installed with wide‑head special nails, followed by galvanized screws for the roof slats. Additional 30 × 130 mm (1.2 x 5.1 in) slats with diamond‑tipped motifs are mounted on the roof ridge using galvanized screws. The roof connection frame consists of eight 50 × 50 mm (2 x 2 in) slats cut at specific angles and shaped with diamond‑tipped knives. All fixed connections use stainless‑steel wood screws or polymer adhesive; galvanized wood screws are used where the main carrier meets the roof. Anchoring: Under each carrier leg, an 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) flange with a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) welded washer is installed. Two anchor holes are drilled in a 13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in) plate, and three 6 mm (0.2 in) screw holes are drilled in each 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) plate. Anchors are screwed to the carrier legs and bolted to the ground with steel dowels, preventing water contact with the wood and providing a secure footing. Gazebo anchors are fabricated from 2.5 mm (0.1 in) steel flanges welded on at least two sides. Six special screws are installed per leg for the anchor‑to‑post connection, and two dowel screws per leg for the anchor‑to‑ground connection. All metal components are powder‑coated with a polyester‑based finish. Impregnation: (description ends here)
