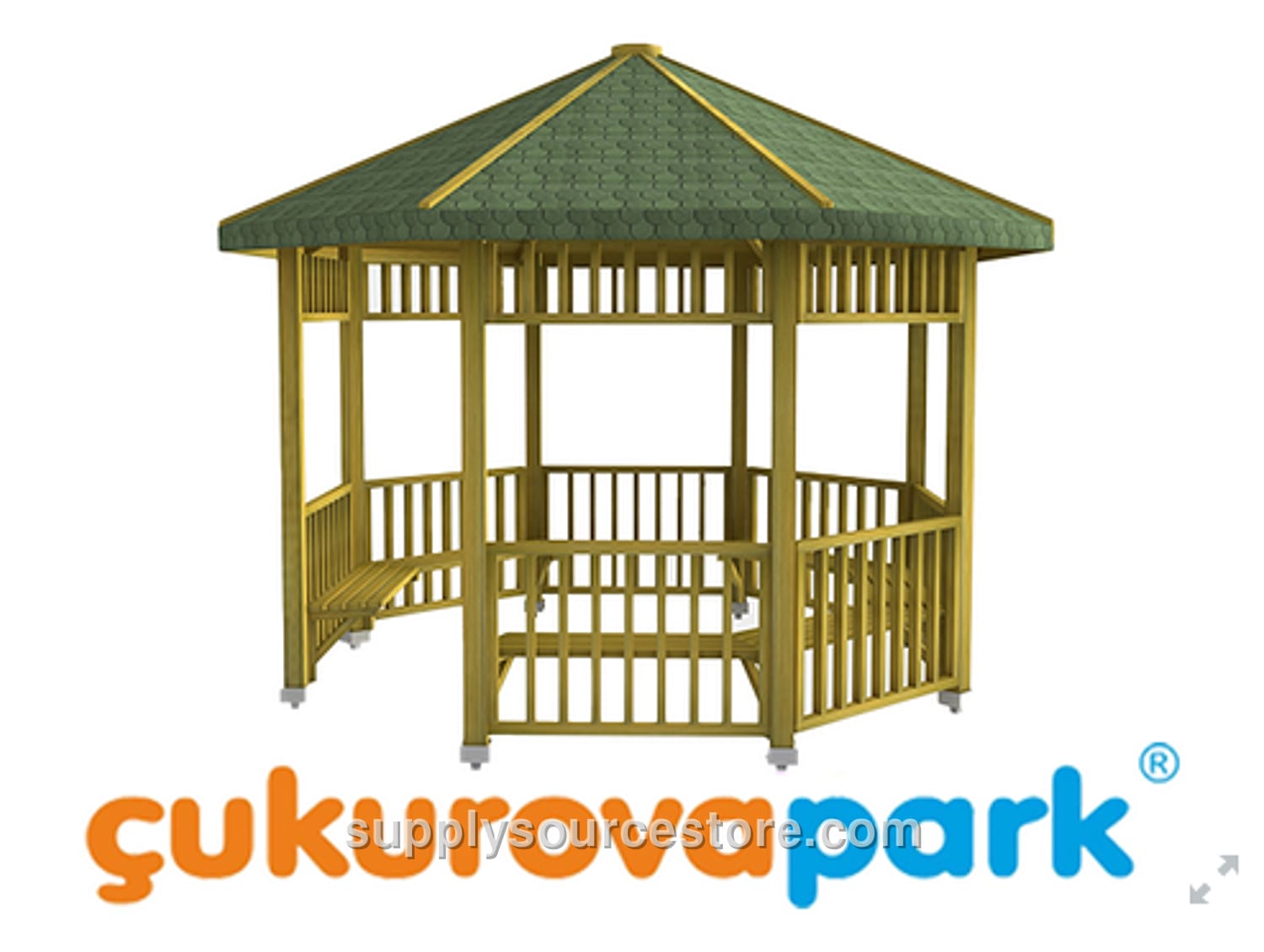

Wooden Octagonal Gazebo 300x300x290 (L×W×H)
Price on request
SKU: SS-012792
Product Features Seating area: 300 × 300 cm (118 x 118 in) Roof size: 470 × 470 cm (185 x 185 in) Height: 300 cm (118 in) Wood: First‑class spruce/pine Wood colour: Green Roof covering: Custom shingle over lambert or fiberglass, shingle colour green Seating unit: Included Table: Not included Wood characteristics The lumber used is first‑class spruce (Pinus sylvestris). Wood sections are cut to a maximum tolerance of ± 2 mm (0.1 in), and overall dimensions to ± 20 mm (0.8 in). Required wood qualities: - Knots: Up to four solid knots per metre, with total knot width not exceeding one‑quarter of the piece width. No rot, decay, fused or dropped knots. - Cracks: No ring cracks; micro‑cracks (1‑2 mm (0.1 in)) are permissible. Pressure‑treated cracks may appear within specification limits. - Resin pockets: Maximum length 10 cm (3.9 in) per metre, with at most one pocket. No leaking resin, inner shell, rot cavities, or insect holes. - Deflection: Not more than 1/50 of the member length. - Impact marks: Not more than 1/100 of the member width. - Twist: Maximum 2 mm (0.1 in) per metre. - Bending: Deflection tolerated between 1/50 and 1/100 of the member length. - Sanding: All visible surfaces are sanded smooth. Main supports Support legs consist of six pine pieces, each at least 90 × 90 mm (3.5 x 3.5 in), cut with diamond‑tipped blades and finished with a motif. Height of the legs is 240 cm (94.5 in). Roof The roof’s bearing rafters are 50 × 100 mm (2 x 3.9 in) wood, with two corners of each rafter routed. Tops are fastened with wooden laminate or fiber material. Laminated boards receive zinc‑coated membranes attached with wide‑head special nails. The roof is then covered with American cedar shingle ("American kiremidi") using the same nails. In the eave board area, wooden slats of at least 30 × 130 mm (1.2 x 5.1 in) are mounted to the rafters with special galvanized wood screws. The roof frame is built from eight pieces of 50 × 50 mm (2 x 2 in) wood, each end cut at specific angles and shaped with diamond‑tipped blades, connecting the main support to the eave board. All fixed connections use stainless‑steel wood screws; galvanized wood screws are used for the main‑support‑to‑roof connections. Upper panels (guardrail) Guardrail width: 35 cm (13.8 in). Frames are 50 × 50 mm (2 x 2 in) wood, sanded on all sides and edged with diamond‑tipped blades, installed with special galvanized wood screws. Intermediate motifs are 40 × 50 mm (1.6 x 2 in) wood, also fixed with galvanized screws. Lower panels (guardrail) Guardrail height: 75 cm (29.5 in). Frames are 50 × 50 mm (2 x 2 in) sanded wood with diamond‑tipped edges, attached with special galvanized wood screws. Intermediate motifs of 40 × 50 mm (1.6 x 2 in) wood are mounted with galvanized screws and transparent wood adhesive. Seating unit The seating unit has eight wooden legs, each at least 4 × 9 cm (1.6 x 3.5 in), attached at one end to the support and at the other to the seating slats. Four diamond‑tipped, motif‑giving blades shape each side of the slats, which are fastened with special galvanized screws. Anchorage Under each support leg, an 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) flange is welded to a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) plate, drilled with two anchor holes (13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in)). Each plate includes three 6 mm (0.2 in) screw holes (15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in)). Anchors are mounted with screws and connected to the ground using steel dowels, preventing water contact with the wood and ensuring a secure foot installation. Gazebo anchors are welded to the flanges with a minimum 2.5 mm (0.1 in) weld bead on at least two sides. Six special screws are placed per leg for the vertical connection and two dowel screws per leg for the ground connection. All metal parts are powder‑coated with a polyester‑based paint. Impregnation: (information not provided).
