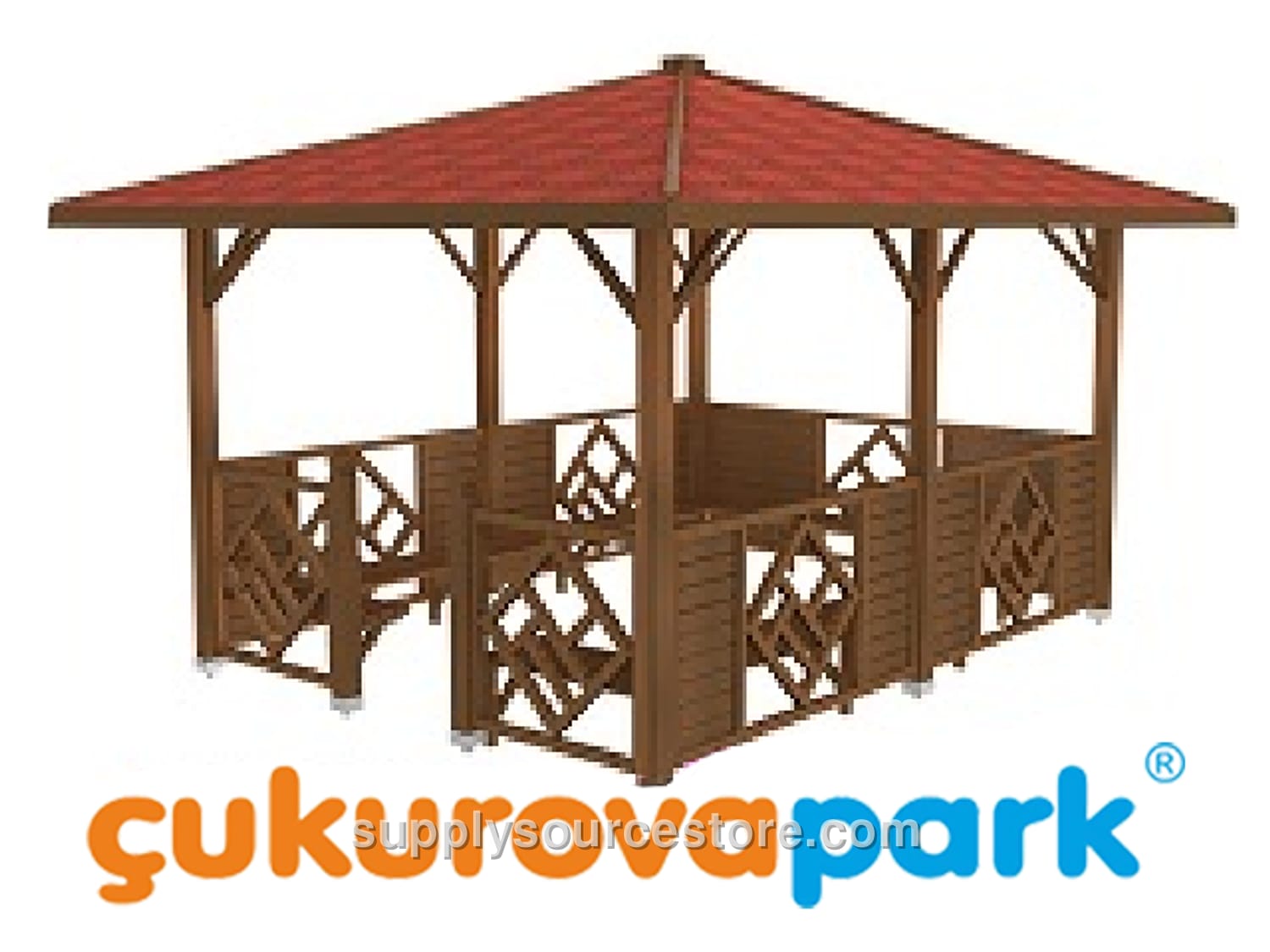

Wooden Rectangular Pavilion 300x400x300 (L×W×H)
Price on request
SKU: SS-012788
Product Technical Specifications Seating Area: 300 × 400 cm (118 x 157 in) Roof Area: 370 × 470 cm (146 x 185 in) Height: 300 cm (118 in) Wood Features: First‑class yellow pine (Pinus sylvestris) timber Wood tolerances: sections ± 2 mm (0.1 in), overall dimensions ± 20 mm (0.8 in) Wood qualities: - Knots: up to four solid knots per metre, each ≤ ¼ of width; no rot, defective, fused or fallen knots - Cracks: No ring cracks; fine cracks 1–2 mm (0-0.1 in) may occur; pressure‑treated cracks allowed within tolerance - Resin pockets: max one per metre, ≤ 10 cm (3.9 in) long; no dripping, inner bark, rot or insect holes - Manufacturing defects: none beyond specified tolerances - Bending: deflection ≤ 1/50 of length - Impact: marks ≤ 1/100 of width - Twisting: ≤ 2 mm (0.1 in) per metre - Flexural tolerance: between 1/50 and 1/100 of length - Sanding: all visible surfaces sanded smooth Primary Supports: - Six pine timber pieces, each at least 90 × 90 mm (3.5 x 3.5 in), cut with diamond‑tip knives; leg height 240 cm (94.5 in) Roof: - Frame of 50 × 100 mm (2 x 3.9 in) wooden slats; two corners of each slat shaped on a router - Covered with wooden veneer or fiber material, fastened with zinc‑coated nails and American cedar‑style shingle - Front board 30 × 130 mm (1.2 x 5.1 in), diamond‑cut, attached with galvanized wood screws - Fixed connections use stainless‑steel screws; main support‑to‑roof connections use special galvanized screws Lower Panels (Railings): - Height: 75 cm (29.5 in) - Frames: 50 × 100 mm (2 x 3.9 in) and 50 × 50 mm (2 x 2 in) wood, sanded and edged with diamond knives; mounted with galvanized screws - Intermediate motifs: 40 × 50 mm (1.6 x 2 in) diamond‑tip patterned wood, fastened with galvanized screws - Gate: two pine timber pieces, each at least 90 × 90 mm (3.5 x 3.5 in) Seating Unit: - Nine L‑shaped wooden legs (minimum 4 × 9 cm (1.6 x 3.5 in)); each leg attaches to a support and a seating slat with four galvanized screws - Twelve slats (minimum 4 × 9 cm (1.6 x 3.5 in), 300 cm (118 in) long) and eight slats (minimum 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long) shaped with diamond‑tip knives and fixed with galvanized screws Anchoring: - Flanges 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) welded to the bottom of support legs, slots for 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) anchoring bolts and 6 mm (0.2 in) screw holes - Anchors bolted to supports and ground via steel dowels to keep wood dry - Six dedicated screws per leg for structural connections and two screws per leg for ground attachment - All metal components powder‑coated with a polyester‑based finish Impregnation:...
