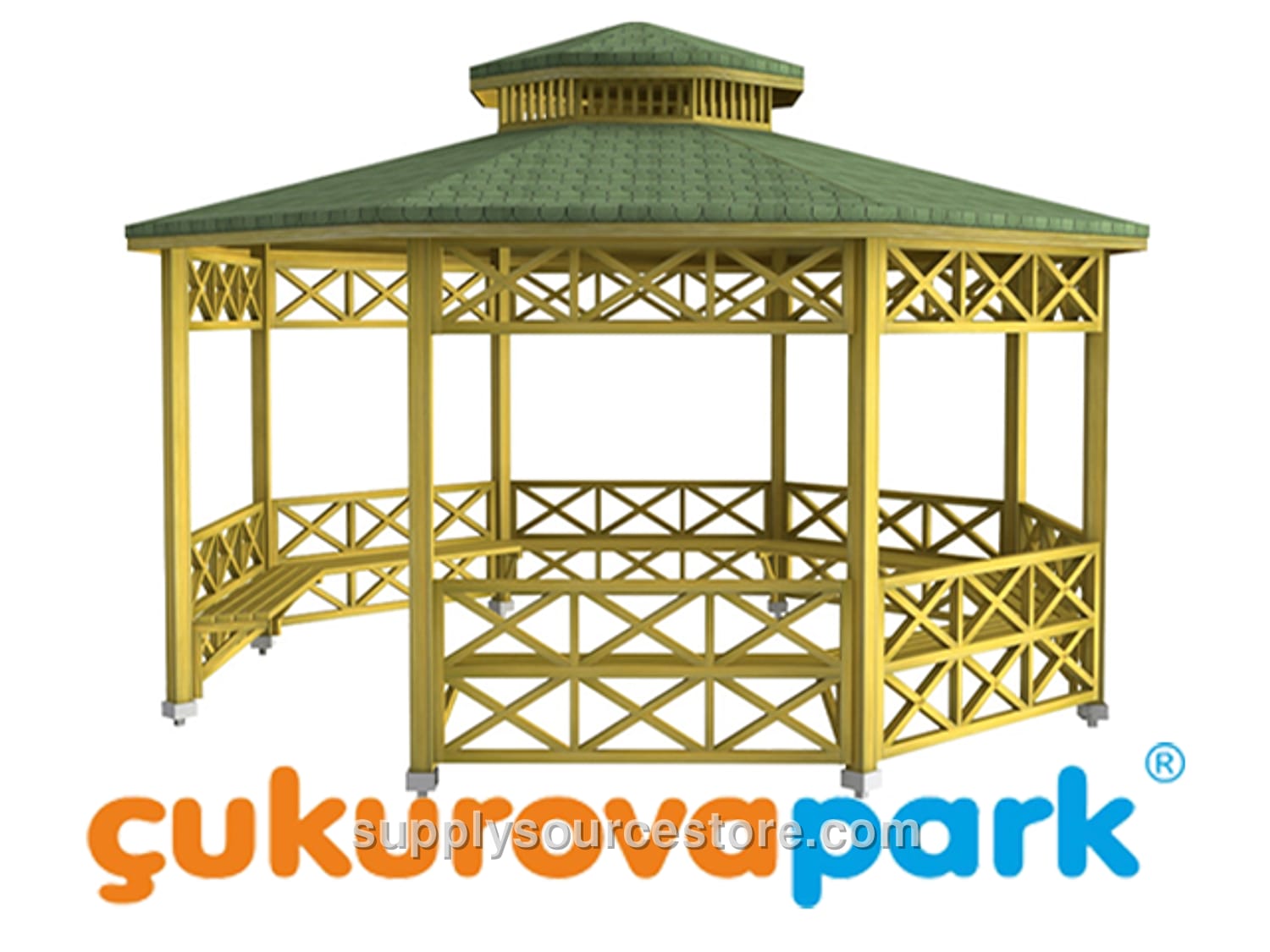

Wooden Octagonal Gazebo 500(L)x500(W)x330(H)
Price on request
SKU: SS-012786
Technical Specifications Seating area: 500 × 500 cm (197 x 197 in) Roof area: 570 × 570 cm (224 x 224 in) Height: 330 cm (130 in) Wood: First‑grade Yellow Pine (Pinus sylvestris). Lumber is cut to a maximum tolerance of ±2 mm (0.1 in); overall dimensions tolerance ±20 mm (0.8 in). Acceptable wood characteristics: - Knots: up to four solid knots per meter, total knot diameter ≤ ¼ of part width. No rotten, split, partially fused or fallen knots. - Cracks: no ring cracks; fine hairline cracks (1‑2 mm (0.1 in)) permitted; pressure‑treated cracks allowed within tolerance. - Resin pockets: max one per meter, ≤ 10 cm (3.9 in) long. No leaking resin, core rot, insect holes, or other defects. - Bending: deflection ≤ 1/50 of part length. - Impact: marks ≤ 1/100 of part width. - Twisting: ≤ 2 mm (0.1 in) per meter. - Compression: deflection between 1/50 and 1/100 of part length. - Sanding: all visible surfaces sanded smooth. Primary supports: Eight legs made from 90 × 90 mm (3.5 x 3.5 in) pine, cut with diamond‑tipped knives and decorative motifs; each leg 240 cm (94.5 in) tall. Roof structure: Roof beams 50 × 100 mm (2 x 3.9 in) wood, two corners routed for shape. Beams are covered with wooden cladding or fiber panels, fastened with wide‑head nails and a zinc‑coated membrane. Roof finished with American cedar shingles secured with wide‑head nails. Additional decorative beams (min. 30 × 130 mm (1.2 x 5.1 in)) mounted to eaves with galvanized screws. Roof framing consists of eight 50 × 50 mm (2 x 2 in) beams, cut at specific angles and attached to main supports and eave board with galvanized wood screws. All fixed connections use stainless‑steel wood screws; main‑support‑to‑roof joints use special galvanized wood screws. Pigeon: Height 450 mm (17.7 in), built from 50 × 50 mm (2 x 2 in) roof beams. Between upper and lower 50 × 50 mm (2 x 2 in) members, 30 mm (1.2 in)‑spaced 30 × 15 mm (1.2 x 0.6 in) wooden slats are installed. Beams are covered with shiplap, zinc‑coated membrane, and American cedar shingles as above. Eave boards use 90 × 20 mm (3.5 x 0.8 in) wood shaped with diamond‑tipped knives. Upper panels: Guardrails 40 cm (15.7 in) wide. Frames 50 × 50 mm (2 x 2 in) wood, sanded on all sides and edged with diamond‑tipped knives, attached to main supports with galvanized wood screws. Motif pieces 40 × 50 mm (1.6 x 2 in) wood, shaped with diamond‑tipped knives, fastened with galvanized screws. Lower panels (guardrail): Height 75 cm (29.5 in). Frames 50 × 50 mm (2 x 2 in) wood, sanded and edged similarly, mounted with galvanized wood screws. Motif pieces 40 × 50 mm (1.6 x 2 in) wood installed with galvanized screws and transparent specialty wood adhesive. Seating unit: Eight L‑shaped wooden legs 4 × 9 cm (1.6 x 3.5 in), each attached at one end to a main support and at the other to the seating frame. Four decorative wooden slats per side, shaped with diamond‑tipped motif knives, fastened with galvanized screws. Anchoring: Under each support leg a 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) flange receives a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) welded plate; a 13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in) plate has two anchor holes, each with three 6 mm (0.2 in) screw holes. Anchors are bolted to the supports and to the concrete floor with steel dowels, keeping metal away from water. Flanged anchor plates are welded on at least two sides with a 2.5 mm (0.1 in) seam. Six special screws secure each leg to the anchor, and two dowelled screws attach the anchor to the floor. All metal components are powder‑coated with polyester paint in a furnace.
