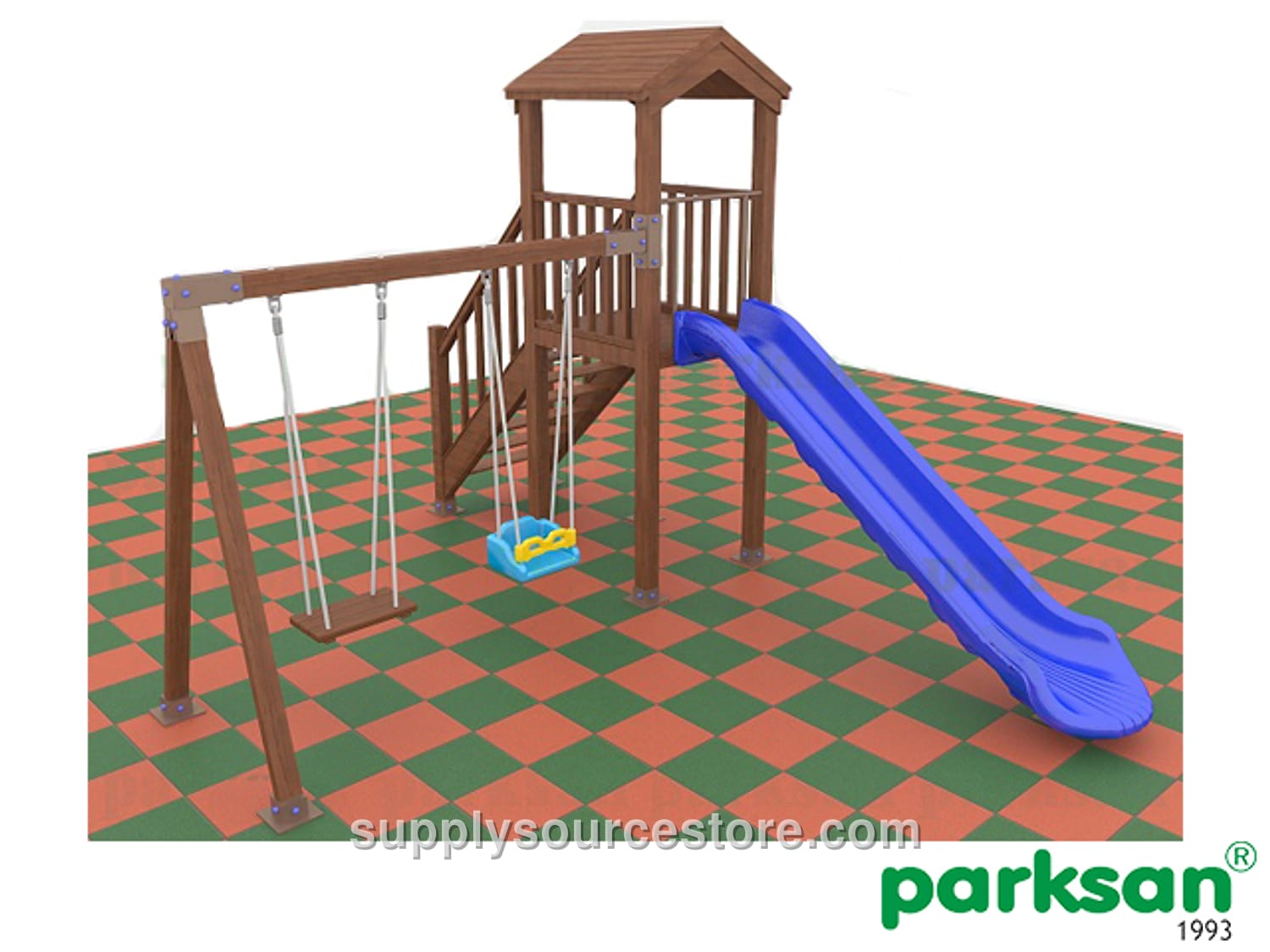

51501 – Wooden Playground (Eco Series)
Price on request
SKU: SS-012632
Seating area 380 × 470 cm (150 x 185 in); safety area 680 × 770 cm (268 x 303 in); total height 291 cm (115 in); slide connection height 150 cm (59.1 in); recommended age 3 years and up. Spare parts: wooden swing A‑ – 1 piece; wooden swing carrier – 1 piece; polyethylene‑guarded swing seat – 1 piece; wooden swing seat – 1 piece; wooden stair guard – 1 piece; wooden stair steps – 5 pieces; wooden tower pipes – 4 pieces; wooden platform – 1 piece; wooden platform guards – 2 pieces; wooden roof – 1 piece; 150 cm (59.1 in) polyethylene straight slide – 1 piece. Carrier construction: 1) Carrier uprights are 260 cm (102 in) long with a 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2) Sharp edges on the wooden laths used in the carrier are rounded for safety. 3) Anchor brackets at the base of the uprights are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box‑profile steel. 4) All connections use stainless‑steel wood screws recessed into the wood and covered with polyurethane caps. 5) The wood is treated spruce/fir. Wooden square platform: – Dimensions 110 × 110 cm (43.3 x 43.3 in). – The platform is built by encircling the carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) with wood, then inserting two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long laths between each pair of uprights, and filling the remaining gap with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long laths placed side by side. – Treated spruce/fir is used. Wooden roof: – Dimensions 115 × 115 cm (45.3 x 45.3 in) with a height of 41 cm (16.1 in). – A 152.5 cm (60 in) gap exists between the roof’s eave edge and the platform. – The square roof is formed by overlapping wooden lambris. – Treated spruce/fir is used. Straight slide: – Designed to descend from a 100 cm (39.4 in) high platform at a maximum slope of 40°, never exceeding 60°. – Total width 65 cm (25.6 in); sliding section 50 cm (19.7 in) wide and 240 cm (94.5 in) long. – Side walls are 19 cm (7.5 in) high. – A wooden safety barrier at the slide entrance ensures secure entry, and a 35 cm (13.8 in) flat section at the exit reduces speed. – Slides are mounted to the platform with galvanized bolts; bolt heads are concealed with injection‑molded plastic washers for a clean look and longer service life. – The slide is anchored to the ground by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick into a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Swing: – Swing seating area 108 × 270 cm (42.5 x 106 in) with a height of 204 cm (80.3 in). – Swing carrier legs are 9 × 9 cm (3.5 x 3.5 in) and 208.5 cm (82.1 in) long, made from wood; ground contact points use 10 × 10 cm (3.9 x 3.9 in) box‑profile steel plates. – The connecting piece between carrier legs is 9 × 9 cm (3.5 x 3.5 in) and 260 cm (102 in) long, with two swing connection fittings for each swing. – Steel plate brackets (10 × 10 cm (3.9 x 3.9 in)) are used where it meets the carrier legs. – Two swing seats are provided: one polyethylene seat with three sides closed and a front safety guard, and one uncovered rubber seat. – When stationary, the guarded swing sits 35 cm (13.8 in) above the ground, while the open swing sits 40 cm (15.7 in) above the ground. – Swing chains are double‑row and galvanized. Wooden stairs: – Steps are 22 cm (8.7 in) deep, 20.5 cm (8.1 in) high, and 74 cm (29.1 in) wide, formed from 4 × 11 cm (1.6 x 4.3 in) laths placed side by side. – Additional 4 × 11 cm (1.6 x 4.3 in) laths extend from the ground to the platform to create the stair structure. – Steps are positioned without gaps and at equal intervals. – Handrail height is 75 cm (29.5 in) above the stepped surface. – Handrail balusters are 3 × 9 cm (1.2 x 3.5 in) wood pieces spaced every 64 cm (25.2 in). – Treated spruce/fir is used. Wooden guardrails: – Guardrail dimensions 3 × 9 cm (1.2 x 3.5 in). – Each guardrail consists of two horizontal laths (100 cm (39.4 in) long) and vertical laths (64 cm (25.2 in) long) of the same size, joined together. – Spacing between vertical laths is 8.9 cm (3.5 in). – All sharp edges are rounded for safety. – Treated spruce/fir is used.
