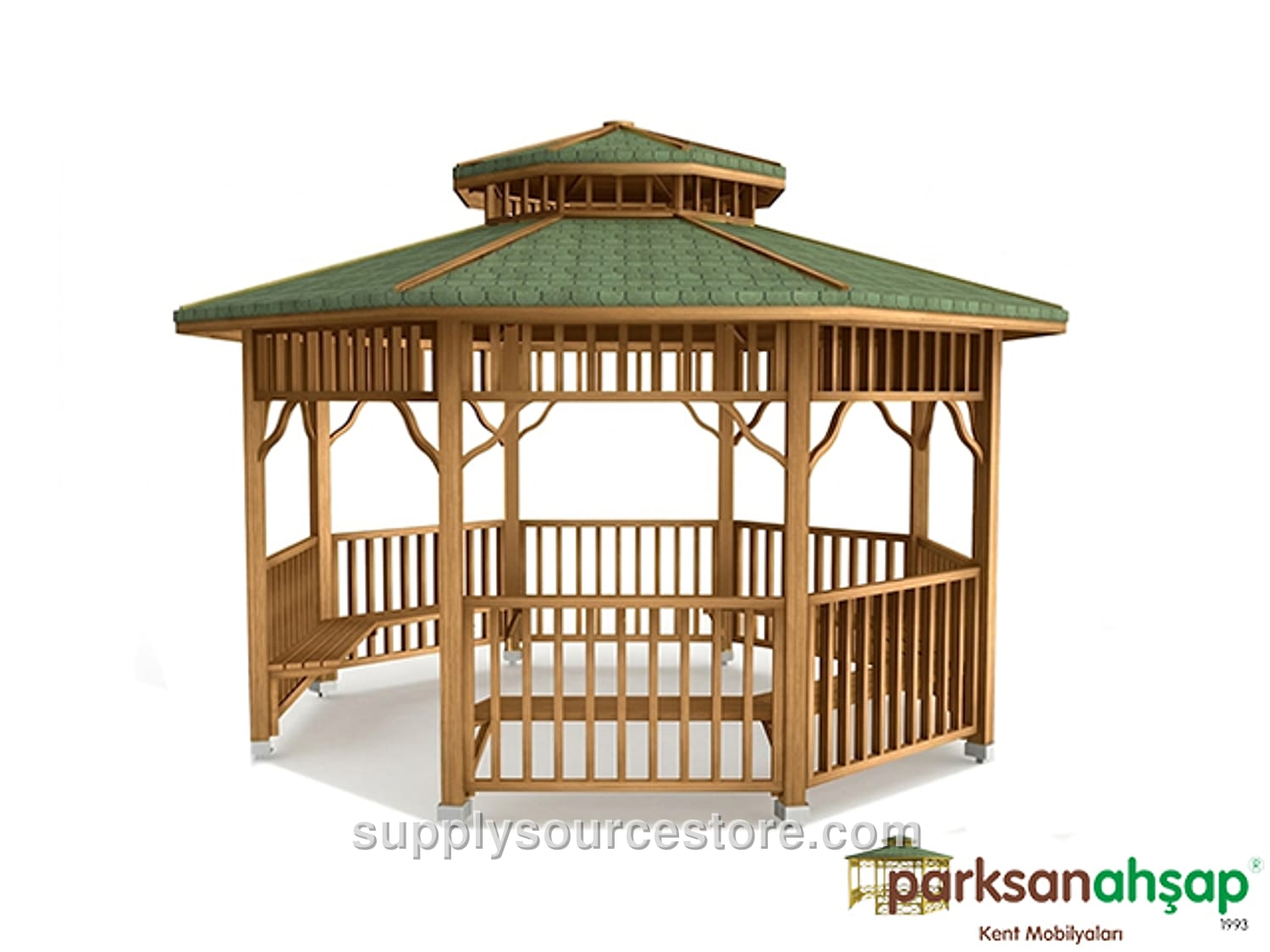

Wooden Octagonal Gazebo 400(L) x 400(W) x 330(H) · SS-012437
Price on request
SKU: SS-012437
Seating area: 400 × 400 cm (157 x 157 in); roof area: 470 × 470 cm (185 x 185 in); overall height: 330 cm (130 in). Wood specifications: The structure uses first‑grade yellow pine (Pinus sylvestris). Individual wood sections are cut with a maximum tolerance of ±2 mm (0.1 in), and overall dimensions are allowed a tolerance of ±20 mm (0.8 in). Required wood quality includes: - Knots: up to four solid knots per meter, with total knot diameter not exceeding one‑quarter of the piece width. No rotten, split, partially fused, or fallen knots. - Cracks: no ring cracks. Micro‑cracks (1–2 mm (0-0.1 in)) are acceptable if they fall within the tolerance limits defined by the pressure‑impregnation specification. - Resin pockets: no more than one per meter, not longer than 10 cm (3.9 in). No leaking resin, no inner bark, rot cavities, or insect holes. - Manufacturing defects: none; only the permitted tolerances may cause deviation. - Bending: deflection shall not exceed 1/50 of the member length. - Impact: impact marks shall not exceed 1/100 of the member width. - Twisting: twist shall not exceed 2 mm (0.1 in) per meter of length. - Compression bowing: allowed between 1/50 and 1/100 of the member length. - Sanding: all visible surfaces will be sanded smooth to remove splinters. Primary supports: Eight legs made from 90 × 90 mm (3.5 x 3.5 in) pine lumber, each shaped with a diamond‑tip special knife. Leg height is 240 cm (94.5 in). Roof structure: Roof‑bearing slats are 50 × 100 mm (2 x 3.9 in) timber, routed at both ends. The slats are fastened with wood‑grade screws to a wooden sheathing or fiber. Zipped membranes are installed on the sheathing using wide‑head specialty nails, followed by American‑style cedar shingle roofing. A front board at least 30 × 130 mm (1.2 x 5.1 in), also cut with a diamond‑tip knife, is mounted to the roof slats with galvanized screws. The roof frame is reinforced with eight 50 × 50 mm (2 x 2 in) slats, each cut at specific angles and shaped with a diamond‑tip knife, connecting the main supports to the front board. All fixed connections use stainless‑steel wood screws; connections between the main supports and the roof employ specialty galvanized wood screws. Pigeon: height is 450 mm (17.7 in). roof slats are 50 × 50 mm (2 x 2 in) timber. Additional 30 × 15 mm (1.2 x 0.6 in) wooden battens are installed between the upper and lower 50 × 50 mm (2 x 2 in) slats at 30 mm (1.2 in) spacing. The slats are secured with wooden laths, zipped membranes, and wide‑head nails, then covered with shingle roofing that mimics a clover‑leaf pattern. Eave boards use 90 × 20 mm (3.5 x 0.8 in) timber shaped with a diamond‑tip motif knife. Upper panels (guardrail): Guardrail width is 40 cm (15.7 in). Frames are 50 × 50 mm (2 x 2 in) timber, sanded on all sides and edged with a specialty diamond‑tip knife, and fastened to the main supports with galvanized wood screws. Intermediate motifs are 40 × 50 mm (1.6 x 2 in) timber, also shaped with a diamond‑tip motif knife and attached with galvanized screws. Lower panels (guardrail): Guardrail height is 75 cm (29.5 in). Frames are 50 × 50 mm (2 x 2 in) timber, sanded on all sides and edged with a diamond‑tip knife, fastened to the main supports with galvanized wood screws. Intermediate motifs are 40 × 50 mm (1.6 x 2 in) timber, shaped with a diamond‑tip motif knife, and attached with galvanized screws and a transparent specialty wood glue. Seating unit: The seat uses eight 4 × 9 cm (1.6 x 3.5 in) L‑shaped wooden legs, each attached at one end to a main support and at the other end to a seating slat. Four decorative wooden slats per side, cut with a diamond‑tip motif knife, are secured with special galvanized screws. Anchoring: For each support leg, a 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) flange is welded to a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) plate; each plate receives two anchor holes (13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in)) and three 6 mm (0.2 in) screw holes (15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in)). Anchors are bolted to the legs with screws and to the ground with steel dowels, preventing wood contact with moisture and securing the legs to the substrate. Gazebo anchors are fabricated from 2.5 mm (0.1 in)‑thick flanges, welded on at least two sides. Six specialty screws are installed per leg for the anchor‑to‑leg connection, and two dowel screws per leg for the ground connection. All metal components are powder‑coated with a polyester‑based finish and baked in a furnace.
