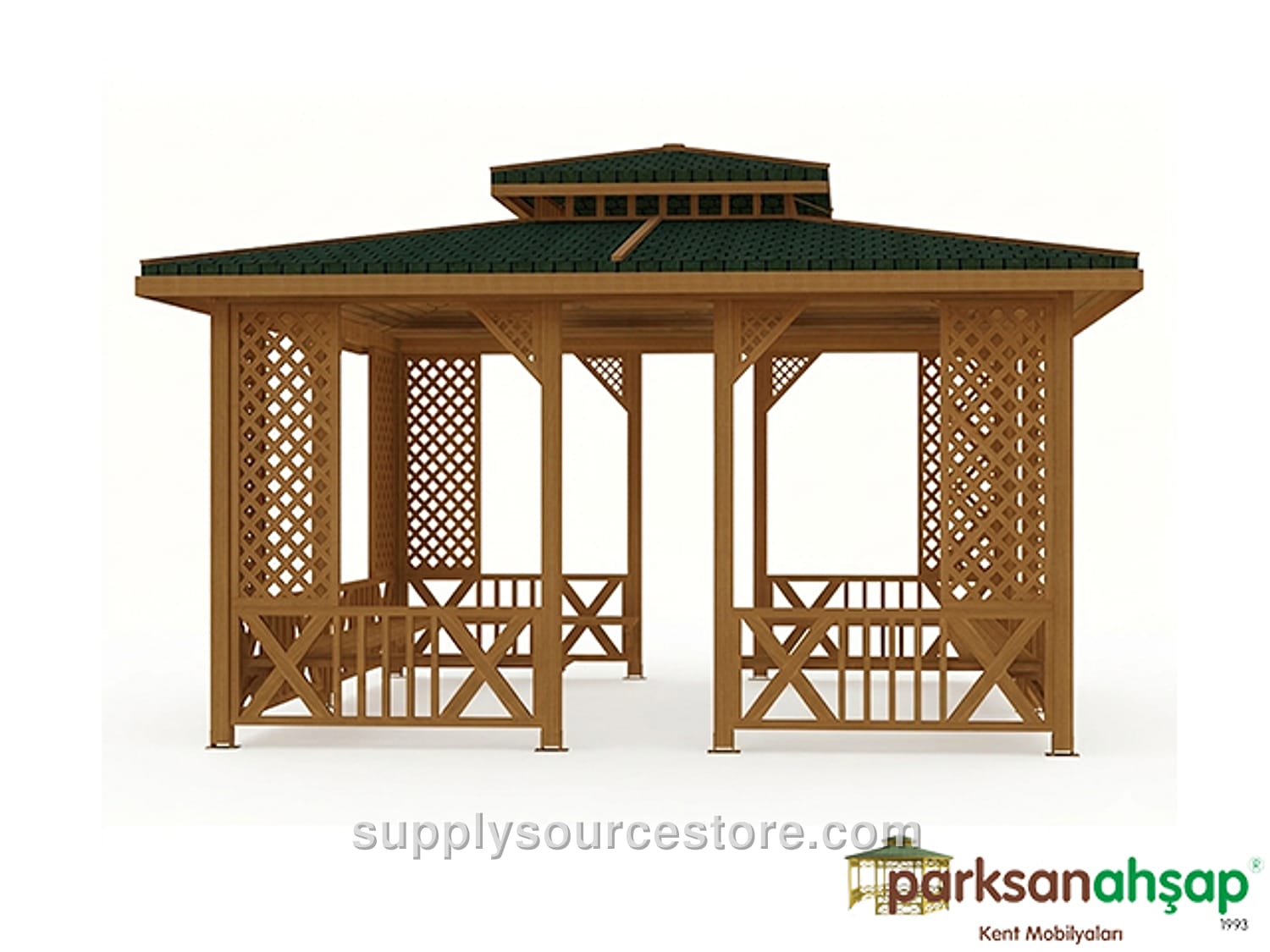

Wooden Gazebo Rectangular 400(L) x 500(W) x 330(H)
Price on request
SKU: SS-012396
Seating area: 300 × 400 cm (118 x 157 in). Roof area: 370 × 470 cm (146 x 185 in). Height: 330 cm (130 in). Wood: First‑class yellow pine (Pinus sylvestris). Lumber sections are cut with a tolerance of ±2 mm (0.1 in); overall dimensions with a tolerance of ±20 mm (0.8 in). Each piece may contain up to four sound knots, with the total knot diameter not exceeding one‑quarter of the piece width. No rot, defects, partially fused or missing knots are allowed. Only fine hairline cracks (1–2 mm (0-0.1 in)) are permitted; ring cracks are prohibited. Resin pockets are limited to one per piece and may not exceed 10 cm (3.9 in) in length; no leaking, pulling resin, inner bark, rot cavities, or insect holes are permitted. Manufacturing defects are limited to the tolerances listed. Deflection shall not exceed 1/50 of the member length; impact shall not exceed 1/100 of the member width. Twist shall not exceed 2 mm (0.1 in) per meter. Bending tolerances are between 1/50 and 1/100 of the member length. All visible surfaces are sanded smooth. Main supports: Four legs made from 90 × 90 mm (3.5 x 3.5 in) pine timber, cut with diamond‑tipped knives. Leg height is 240 cm (94.5 in). Roof: Roof joists are 50 × 100 mm (2 x 3.9 in) timber, routed at both ends. Joists are fastened with wooden deck boards or fiber material, covered with bitumen‑impregnated membranes and large‑head nails, and finished with American cedar shingles. The eave board uses 30 × 130 mm (1.2 x 5.1 in) timber, attached to the joists with galvanized screws. The roof‑connection frame consists of eight 50 × 50 mm (2 x 2 in) joists, cut at specific angles and shaped with diamond‑tipped knives, mounted between the main support and the eave board. All fixed connections use stainless‑steel wood screws; main‑to‑roof connections use special galvanized wood screws. Dovecote: Height 450 mm (17.7 in), built from 50 × 50 mm (2 x 2 in) roof joists. Additional 30 × 15 mm (1.2 x 0.6 in) wooden slats are installed at 30 mm (1.2 in) intervals between the upper and lower joists. The slats are fastened with shiplap boards, bitumen membranes, and large‑head nails, then covered with shingle roofing in a cloverleaf pattern. The eave board uses 90 × 20 mm (3.5 x 0.8 in) timber shaped with a diamond‑tipped knife. Lower panels (railings): Railing height 75 cm (29.5 in). Frames are made from 50 × 50 mm (2 x 2 in) timber, fully sanded and edge‑finished with diamond‑tipped knives, and mounted to the main support with galvanized screws. Intermediate motifs are 40 × 50 mm (1.6 x 2 in) timber pieces shaped with diamond‑tipped knives and attached with galvanized screws and clear wood glue. Six pieces of 90 × 90 mm (3.5 x 3.5 in) timber form the gate. Seating unit: Consists of nine 4 × 9 cm (1.6 x 3.5 in) L‑shaped wooden legs, each attached at one end to the main support and at the other to the seating frame, with four diamond‑tipped motif‑cut slats per side, fastened with special galvanized screws. Anchorage: Flanges (18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in)) are welded to 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) tabs, drilled for anchors, and secured with six 6 mm (0.2 in) screws per leg and two anchoring screws per leg to the ground using steel dowels. All metal parts are powder‑coated with a polyester‑based paint.
