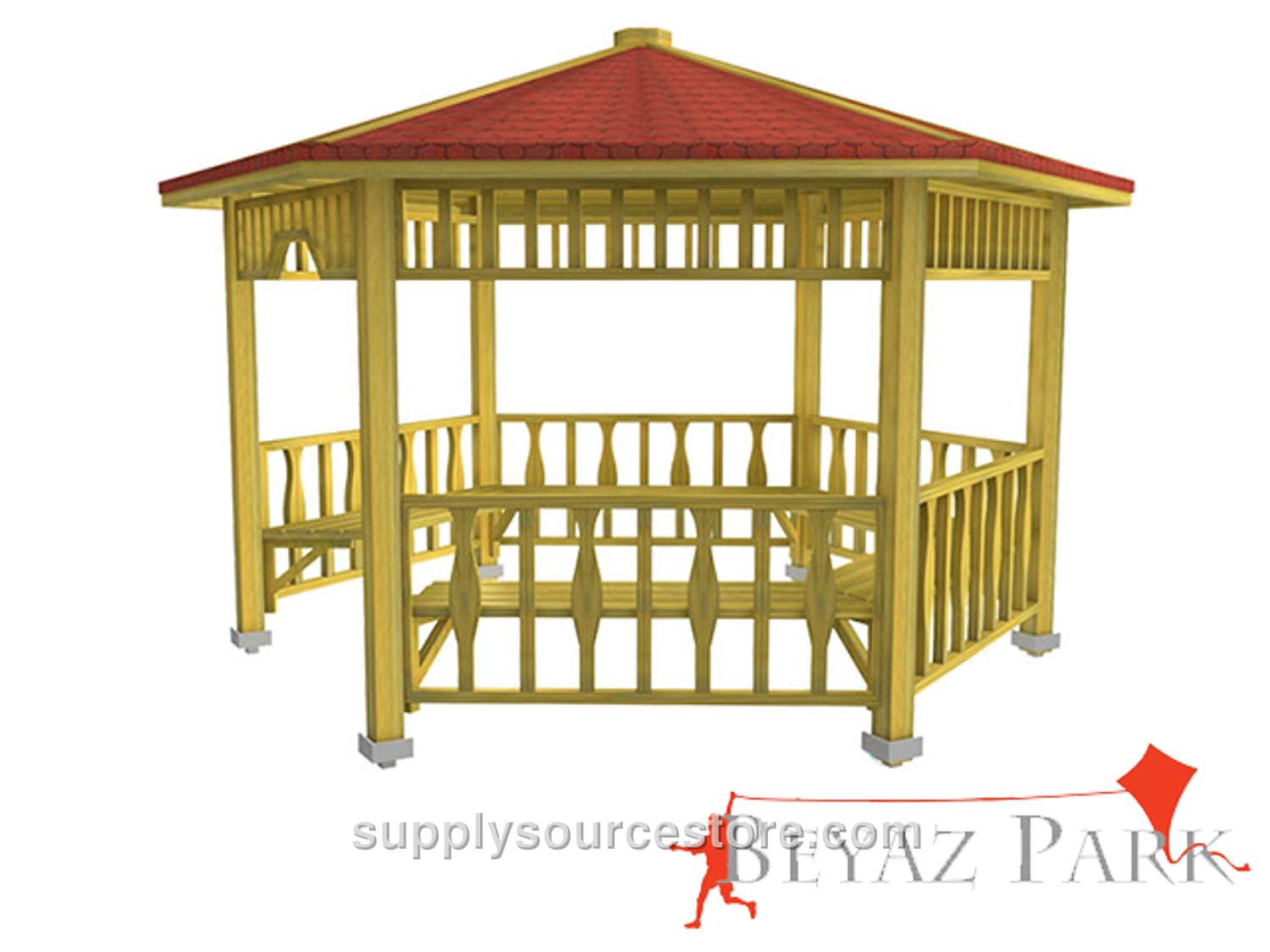

Wooden Hexagonal Gazebo 300x300x290 (L*W*H) · SS-012337
Price on request
SKU: SS-012337
Technical Specifications: - Seating area: 300 × 300 cm (118 x 118 in) - Roof area: 370 × 370 cm (146 x 146 in) - Height: 290 cm (114 in) Wood Characteristics: - Made from first‑grade Yellow Pine (Pinus sylvestris) lumber. - Wood sections cut to a maximum tolerance of ±2 mm (0.1 in); overall dimensions toleranced to ±20 mm (0.8 in). - Acceptable per‑meter criteria: up to four sound knots (each ≤ ¼ of the part width), no rot, decay, split knots, or ring cracks (only fine micro‑cracks 1‑2 mm (0.1 in) allowed), pressure‑treated resin pockets ≤ 10 cm (3.9 in) long with no dripping, no inner bark, decay cavities, or insect holes. - No manufacturing defects beyond the stated tolerances. - Deflection ≤ 1/50 of member length; impact tolerance ≤ 1/100 of width; twist ≤ 2 mm (0.1 in) per meter; bend tolerance between 1/50 and 1/100 of length. - All visible surfaces are sanded smooth. Main Supports: - Six support legs, each minimum 90 × 90 mm (3.5 x 3.5 in), cut with diamond‑tipped knives to add a decorative motif. Legs are 240 cm (94.5 in) high. Roof Structure: - Roof frame uses 50 × 100 mm (2 x 3.9 in) wooden rafters. Two corners of each rafter are routed, then covered with wood‑laminated sheathing or fiberboard and fastened with screws. - Zinc‑plated nails secure tar‑coated membranes, followed by American cedar shingles attached with wide‑head nails. - Eaves feature 30 × 130 mm (1.2 x 5.1 in) decorative wooden strips fastened with galvanized wood screws. - Roof connection employs eight 50 × 50 mm (2 x 2 in) rafters with angled cuts, attached to supports and eaves with galvanized screws. - All fixed connections use stainless‑steel wood screws; support‑to‑roof joints use special galvanized wood screws. Lower Panels (Railings): - Railing height: 75 cm (29.5 in). - Frames are 50 × 50 mm (2 x 2 in) wood, sanded on all sides and edged with decorative diamond‑cut knives, mounted to the main supports with galvanized wood screws. - Intermediate decorative pieces are 40 × 50 mm (1.6 x 2 in) wood cut with diamond‑tipped knives, bonded with transparent wood adhesive and galvanized screws. Upper Panels: - Upper railings are 35 cm (13.8 in) wide, constructed with 50 × 50 mm (2 x 2 in) sanded, diamond‑cut wood frames and 40 × 50 mm (1.6 x 2 in) decorative inserts, all fastened with galvanized screws. Seating Unit: - Includes six wooden legs (minimum 4 × 9 cm (1.6 x 3.5 in)) attached to the support structure, with four decorative diamond‑cut wooden slats per side, secured with galvanized screws. Anchoring: - Each support leg has an 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) flange; on top a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) plate is welded, then a 13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in) plate is drilled for two anchor bolts (each plate with three 6 mm (0.2 in) screw holes). - Anchors are bolted to the legs and to the ground with steel dowels, protecting the wood from moisture and providing a secure footing. - Gazebo anchors are welded with a minimum 2.5 mm (0.1 in) weld bead on at least two sides of the flange. - Each leg receives six specialty screws for the vertical connection and two dowel screws for ground attachment. - All metal components are powder‑coated with a polyester finish. Impregnation: (details not provided.)
