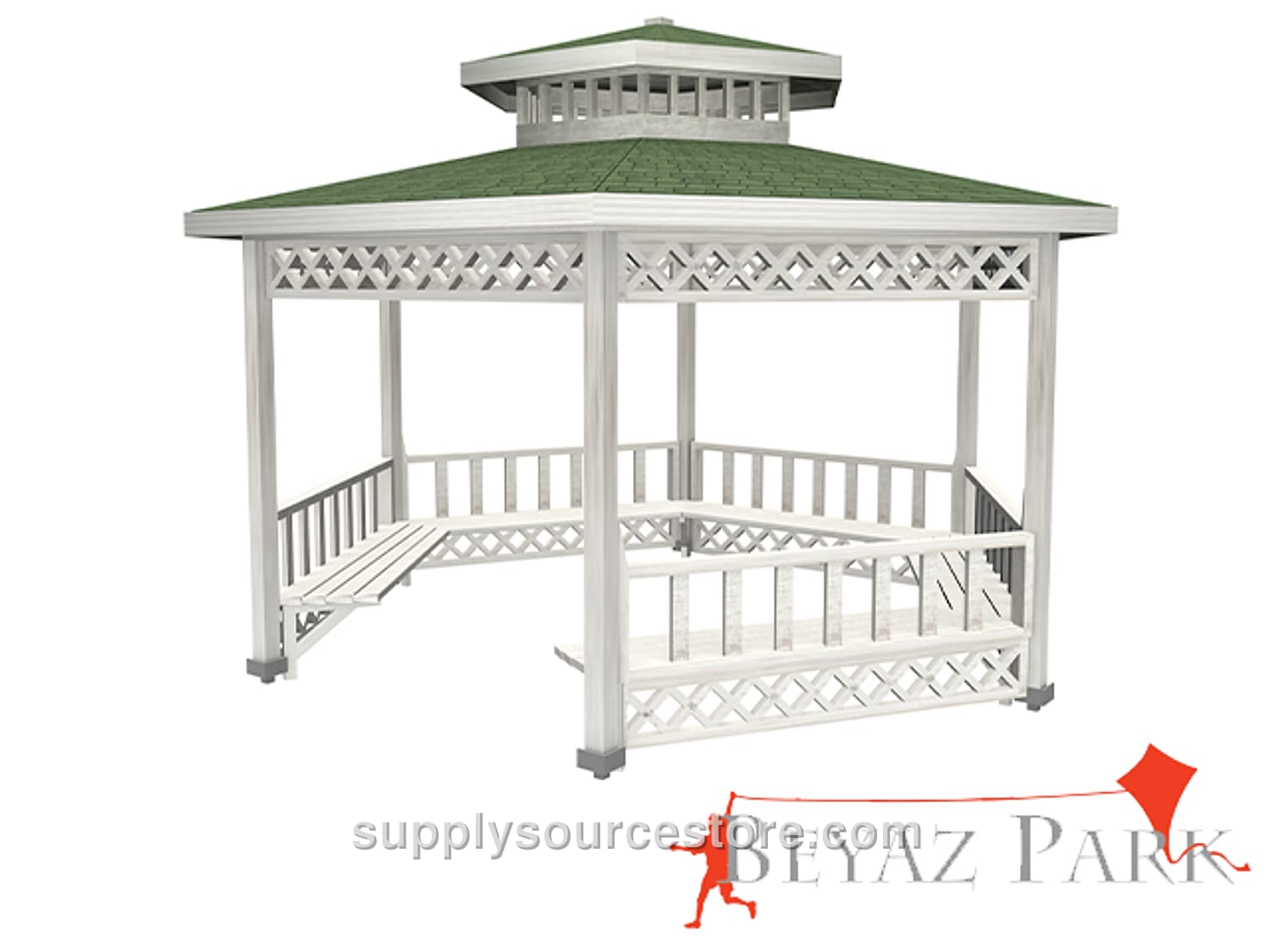

Wooden Gazebo Hexagon 400(L) x 400(W) x 330(H) · SS-012336
Price on request
SKU: SS-012336
Technical Specifications: - Seating area: 400 × 400 cm (157 x 157 in) - Roof area: 470 × 470 cm (185 x 185 in) - Height: 330 cm (130 in) - Wood: First‑grade Yellow Pine (Pinus sylvestris). Lumber is cut with a maximum tolerance of ±2 mm (0.1 in); dimensions tolerate ±20 mm (0.8 in). Knot limits: up to four solid knots per meter, total knot diameter not exceeding one‑quarter of the piece width. No rotten, defective, partially fused, or fallen knots. No ring cracks; micro‑cracks of 1–2 mm (0-0.1 in) are permissible, as are pressure‑treated cracks within tolerance. Resin pockets: maximum one per meter, no longer than 10 cm (3.9 in); no dripping, no inner shell, no rot cavities, and no insect holes. No manufacturing defects beyond the specified tolerances. Deflection limit: ≤ 1⁄50 of member length. Impact limit: ≤ 1⁄100 of member width. Twist limit: ≤ 2 mm (0.1 in) per meter. Blade deflection: between 1⁄50 and 1⁄100 of member length. All visible surfaces are sanded smooth and free of splinters, then finished with a white lacquer. Primary Supports: - Six pine legs, each at least 90 × 90 mm (3.5 x 3.5 in), cut with diamond‑tipped knives and given a decorative motif. Height: 240 cm (94.5 in). Roof: - Supporting slats: 50 × 100 mm (2 x 3.9 in) wood, two corners routed. Fastened with wood screws to wooden cladding or fiber material. Over the cladding, oil‑based membranes are installed with wide‑head nails, then covered with American cedar shingles secured with the same nails. Fascia board: 30 × 130 mm (1.2 x 5.1 in) decorative slats, also cut with diamond‑tipped knives, attached to roof slats with galvanized wood screws. Roof frame: eight pieces of 50 × 50 mm (2 x 2 in) slats, cut at specific angles and routed, connecting the primary support to the fascia board. All fixed connections use stainless‑steel wood screws; connections between primary support and roof use special galvanized wood screws. Pigeon: - Height: 450 mm (17.7 in). Roof slats: 50 × 50 mm (2 x 2 in) wood with additional 30 × 15 mm (1.2 x 0.6 in) battens placed at 30 mm (1.2 in) intervals between the upper and lower slats. Fastened with gable‑style wooden lathes, then covered with oil‑based membranes, wide‑head nails, and shingle roofing in a clover‑leaf pattern. Bottom Panels (Railing): - Height: 75 cm (29.5 in). Frames: 50 × 50 mm (2 x 2 in) wood, sanded all sides and edged with diamond‑tipped knives, mounted to the primary support with galvanized wood screws. Decorative pieces: 40 × 50 mm (1.6 x 2 in), cut with diamond‑tipped knives, attached with galvanized screws and clear specialty wood adhesive. Upper Panels: - Width: 35 cm (13.8 in). Construction mirrors the lower railing: 50 × 50 mm (2 x 2 in) sanded wood frames with diamond‑tipped edges, mounted with galvanized wood screws, and decorated with 40 × 50 mm (1.6 x 2 in) motif pieces installed with galvanized screws. Seating Unit: - Six wooden L‑legs, each at least 4 × 9 cm (1.6 x 3.5 in). One end attaches to the primary support, the other to a seating slat. Four decorative wooden slats per side, cut with diamond‑tipped knives, fastened with galvanized screws. Anchors: - Under each support leg a 18 × 13 × 3 mm (0.7 x 0.5 x 0.1 in) flange is welded to a 15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in) plate, drilled for two anchor bolts (13 × 8 × 3 mm (0.5 x 0.3 x 0.1 in)) and three 6 mm (0.2 in) screw holes (15 × 8 × 2 mm (0.6 x 0.3 x 0.1 in)). Anchors bolt to footings, which are secured to the ground with steel dowels, preventing water contact with the wood. Gazebo anchors are welded to flanges that wrap around at least two sides of the vertical members, using a minimum 2.5 mm (0.1 in) weld bead. Six special screws are placed on each leg for connection to the verticals, and two dowel screws per leg for grounding. All metal components receive a powder‑coated polyester finish and are baked. Impregnation: Technical details on impregnation would follow here.
