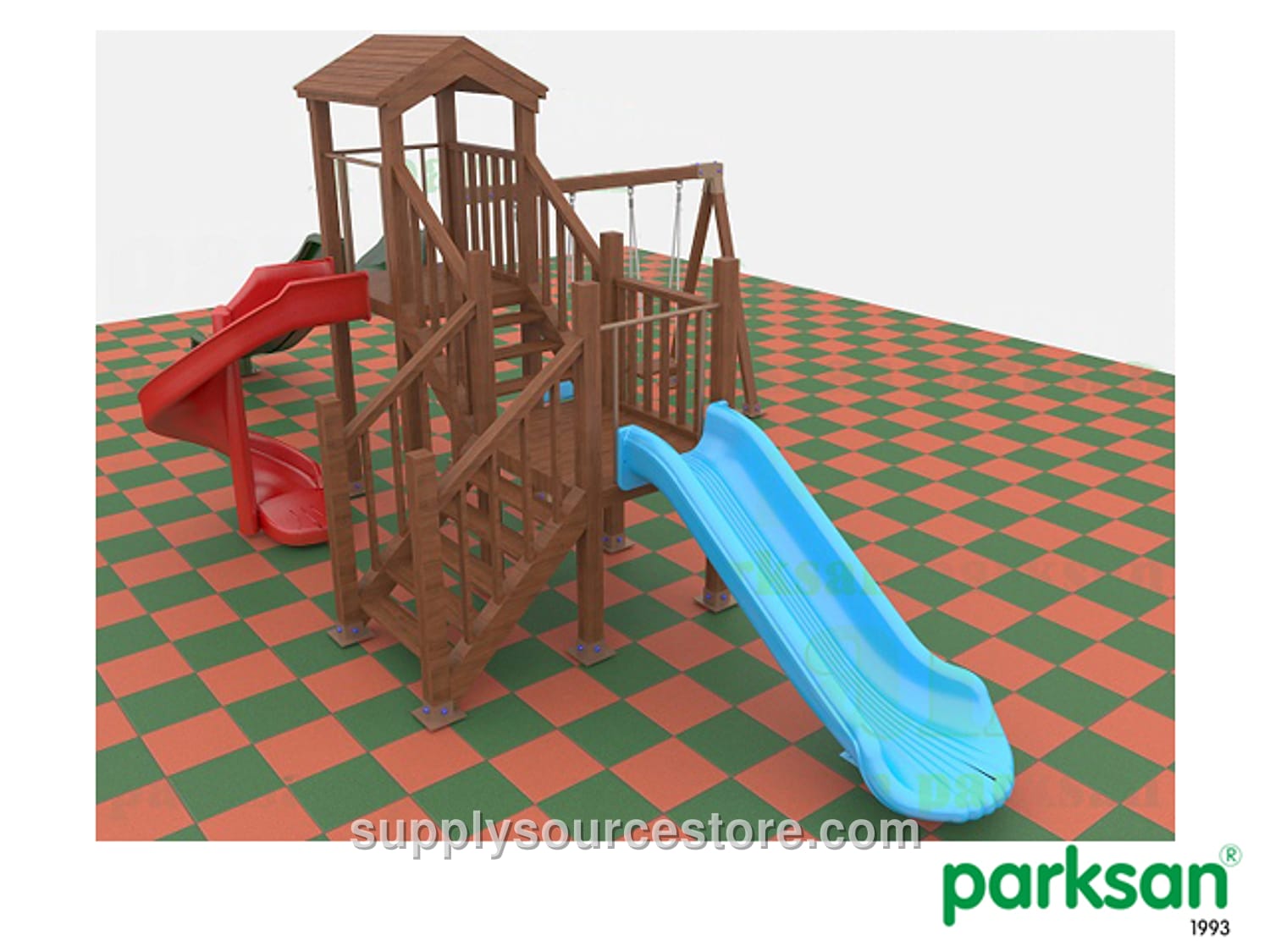

51503 – Wooden Children’s Playground (Eco Series)
Price on request
SKU: SS-012277
Product Technical Specifications: - Seating area: 530 × 830 cm (209 x 327 in) - Safety area: 830 × 1130 cm (327 x 445 in) - Maximum height: 310 cm (122 in) - Slide connection height: 100‑150 cm (59.1 in) - Suitable for ages 3 years and up Spare Parts: - Swing wooden A‑tube – 1 piece - Swing wooden carrier tube – 1 piece - Polyethylene enclosed swing seat – 1 piece - Wooden swing seat – 1 piece - Wooden stair guard – 2 pieces - Wooden stair tread – 10 pieces - 150 cm (59.1 in) wooden tower tube – 4 pieces - 100 cm (39.4 in) wooden tower tube – 4 pieces - Wooden platform – 2 pieces - Wooden platform guard – 3 pieces - Wooden roof – 1 piece - Wooden slide entrance – 1 piece - 150 cm (59.1 in) polyethylene straight slide – 1 piece - 100 cm (39.4 in) wavy slide – 1 piece Carrier Construction: 1. Carrier uprights are 260 cm (102 in) long with a 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2. All sharp corners and edges of the wooden slats are rounded for safety. 3. Base anchors are 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box‑profile steel. 4. Joints use stainless‑steel wood screws; screw heads are recessed and covered with polyurethane caps. 5. Wood is pressure‑treated spruce/fir. Wooden Square Platform: 1. Platform dimensions: 110 × 110 cm (43.3 x 43.3 in). 2. Platform frame consists of 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long uprights wrapped around the perimeter. Between each pair of uprights, two pieces of wood (4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long) are installed, with the remaining gap filled by nine pieces of wood (4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long) placed side‑by‑side. 3. Wood is pressure‑treated spruce/fir. Wooden Roof: 1. Roof size: 115 × 115 cm (45.3 x 45.3 in); height 41 cm (16.1 in). 2. Gap between lower edge of the roof eaves and the platform is 152.5 cm (60 in). 3. Roof is formed by overlapping wooden lamellas. 4. Wood is pressure‑treated spruce/fir. Double Slide: 1. Designed to descend from a 100 cm (39.4 in) high platform with a slope not exceeding 60° (maximum 40°). 2. Overall slide width: 100 cm (39.4 in); sliding section: 40 cm (15.7 in) wide × 210 cm (82.7 in) long. 3. Side walls are 15 cm (5.9 in) high; intermediate section is 7 cm (2.8 in) high. 4. A wooden barrier at the start ensures safe entry, and a 35 cm (13.8 in) flat section at the exit reduces speed. 5. Slides are mounted to the platform with galvanized bolts; bolt heads are covered with injection‑molded plastic caps. 6. The slide is anchored to the ground by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick to a metal plate measuring 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick. Swing: 1. Swing seating area measures 108 × 270 cm (42.5 x 106 in); height 204 cm (80.3 in). 2. Swing carrier legs are 9 × 9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long wood pieces; a 10 × 10 cm (3.9 x 3.9 in) box‑profile steel plate is used at the ground contact point. 3. The connector between carrier legs is a 9 × 9 cm (3.5 x 3.5 in), 260 cm (102 in) long wooden piece with two swing‑connection fittings per swing; the joint also uses a 10 × 10 cm (3.9 x 3.9 in) steel plate. 4. Two swing seats are included: one polyethylene seat that is three‑sided closed with a front safety guard, and one open rubber seat. 5. When not in use, the protected swing sits 35 cm (13.8 in) above the ground; the open swing sits 40 cm (15.7 in) above the ground. 6. Swing chains are double‑row and galvanized. Pull‑Up Bar: 1. Total length: 250 cm (98.4 in); width: 82 cm (32.3 in). 2. Composed of eight 82 mm (3.2 in) diameter rods positioned between two parallel wooden carriers (9 × 9 cm (3.5 x 3.5 in), 250 cm (98.4 in) long). 3. The vertical climbing ladder attached to the bar includes four 82 mm (3.2 in) diameter rods spaced 25 cm (9.8 in) apart. 4. The bar is fastened to the main structure and carrier frame with stainless‑steel wood screws and galvanized bolts. 5. Wood is pressure‑treated spruce/fir.
