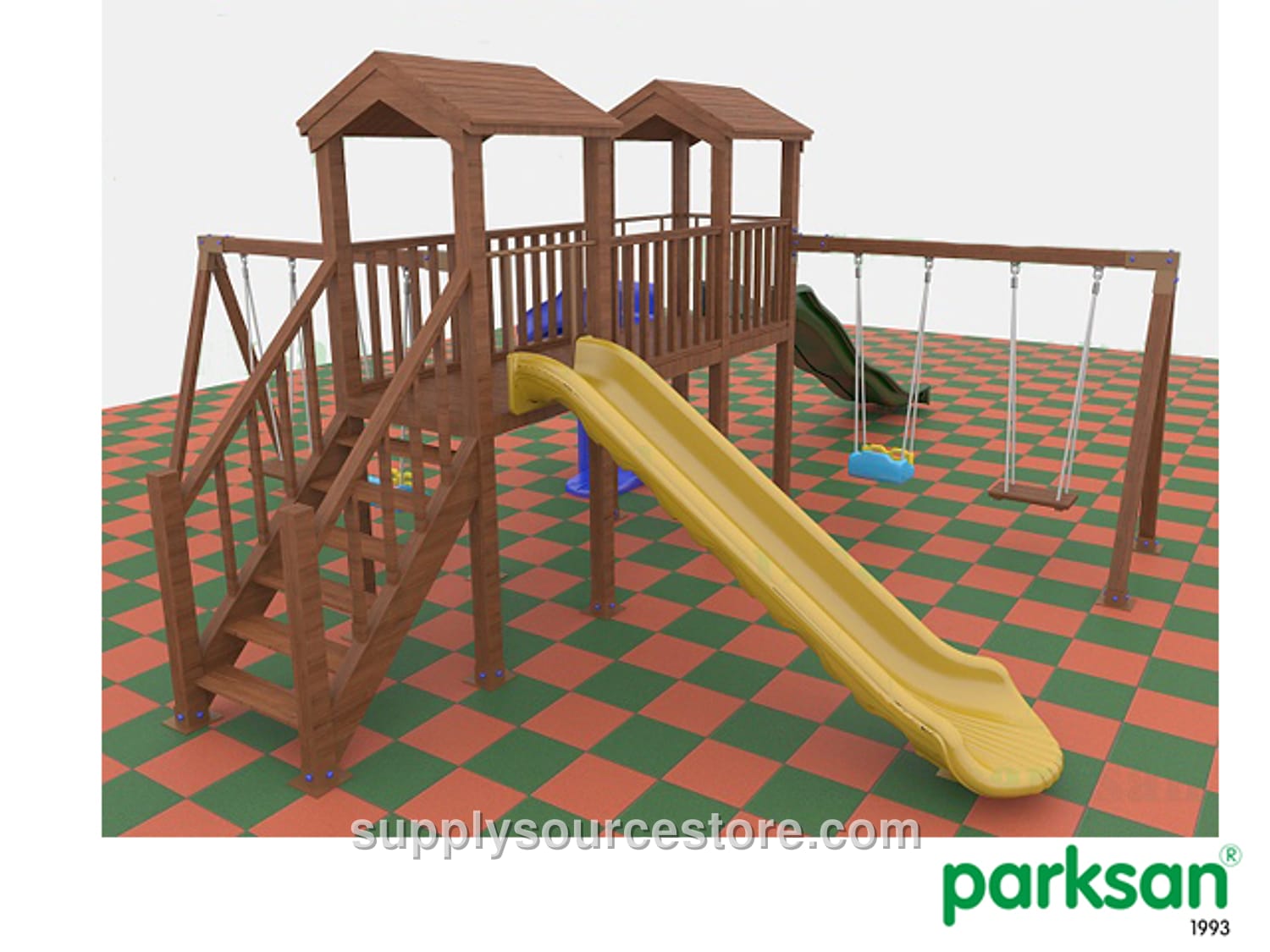

51504 – Wooden Play Structure (Eco Series)
Price on request
SKU: SS-012276
Technical Specifications: - Seating area: 430 × 810 cm (169 x 319 in) - Safety area: 730 × 1110 cm (287 x 437 in) - Peak height: 311 cm (122 in) - Slide connection height: 100–150 cm (39.4-59.1 in) - Age group: 3 + years - Spare parts included: • 1 wooden swing‑A (1 pc) • 1 wooden swing‑carrier (1 pc) • 1 polyethylene swing seat with guard (1 pc) • 1 wooden swing seat (1 pc) • 2 wooden stair handrails (2 pcs) • 10 wooden stair steps (10 pcs) • 4 wooden tower pipes, H = 150 cm (59.1 in) (4 pcs) • 4 wooden tower pipes, H = 100 cm (39.4 in) (4 pcs) • 2 wooden platforms (2 pcs) • 3 wooden platform handrails (3 pcs) • 1 wooden roof (1 pc) • 1 wooden slide entrance (1 pc) • 1 polyethylene straight slide, H = 100 cm (39.4 in) (1 pc) • 1 spiral slide, H = 150 cm (59.1 in) (1 pc) Carrier Construction: 1. Upright posts are 9 × 9 cm (3.5 x 3.5 in) and 260 cm (102 in) long. 2. All sharp corners on the wooden slats are rounded for safety. 3. Anchor brackets at the base are 10 × 10 cm (3.9 x 3.9 in) steel box‑profile, 2 mm (0.1 in) thick. 4. The base of the 150 cm (59.1 in) tower uprights is wrapped with 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long wooden pieces to form a sand‑pit area. 5. Connections use stainless‑steel wood screws recessed into the slats and capped with polyurethane. 6. Wood is pressure‑treated fir/pine. Wooden Square Platform: - Dimensions: 110 × 110 cm (43.3 x 43.3 in). - Formed by surrounding the carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) and inserting two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) members between each upright pair. Remaining gaps are filled with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) pieces placed side‑by‑side. - Wood: pressure‑treated fir/pine. Wooden Roof: - Dimensions: 115 × 115 cm (45.3 x 45.3 in), height 41 cm (16.1 in). - Gap between roof eaves and platform: 152.5 cm (60 in). - Constructed from overlapping square wooden lamellas. - Wood: pressure‑treated fir/pine. Straight Slide: - Serves a 150 cm (59.1 in) high platform; maximum angle 40°, never exceeding 60°. - Total width: 65 cm (25.6 in); sliding surface width: 50 cm (19.7 in); length: 330 cm (130 in). - Side walls: 16 cm (6.3 in) high. - Wooden safety barrier at the entrance; a 35 cm (13.8 in) flat surface at the exit slows descent. - Mounted with concealed galvanized bolts sealed with injection‑molded plastic washers. - Ground anchor: 23 cm (9.1 in) long, 88 mm (3.5 in) diameter (wall 2 mm (0.1 in)) welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Spiral Slide: - Attached to the same 150 cm (59.1 in) platform; fabricated as a single piece with an average angle of 40°, never exceeding 60°. - Exit includes a 40 cm (15.7 in) flat surface to reduce speed. - Total width: 110 cm (43.3 in); length: 190 cm (74.8 in); sliding surface width: 45 cm (17.7 in). - Side walls: 20 cm (7.9 in) high. - Uses the same concealed galvanized bolts, plastic washers, and ground‑anchoring method as the straight slide. Swing: - Seating area: 108 × 270 cm (42.5 x 106 in); height: 204 cm (80.3 in). - Carrier legs: 9 × 9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long wooden pieces with 10 × 10 cm (3.9 x 3.9 in) steel box‑profile brackets at ground contact. - Connecting piece between legs: 9 × 9 cm (3.5 x 3.5 in), 260 cm (102 in) long wood with two swing‑attachment brackets. - Two swing seats: one polyethylene seat with a three‑sided guard, one unguarded rubber seat. - Guarded swing sits 35 cm (13.8 in) above ground; unguarded swing sits 40 cm (15.7 in) above ground. - Chains are double‑row and galvanized. Wooden Staircase: - Treads: 22 cm (8.7 in) deep, 74 cm (29.1 in) wide, made from 4 × 11 cm (1.6 x 4.3 in) slats placed side‑by‑side; risers: 20.5 cm (8.1 in) high. - Additional 4 × 11 cm (1.6 x 4.3 in) slats extend from ground to platform to form the stair structure. - Handrail height: 75 cm (29.5 in) above tread surface; balusters: 3 × 9 cm (1.2 x 3.5 in) wood spaced every 64 cm (25.2 in). - Wood: pressure‑treated fir/pine. Wooden Guardrails: - Each guardrail consists of two horizontal slats (3 × 9 cm (1.2 x 3.5 in), 100 cm (39.4 in) long) and vertical slats (3 × 9 cm (1.2 x 3.5 in), 64 cm (25.2 in) long). - Material: 3 × 9 cm (1.2 x 3.5 in) wood.
