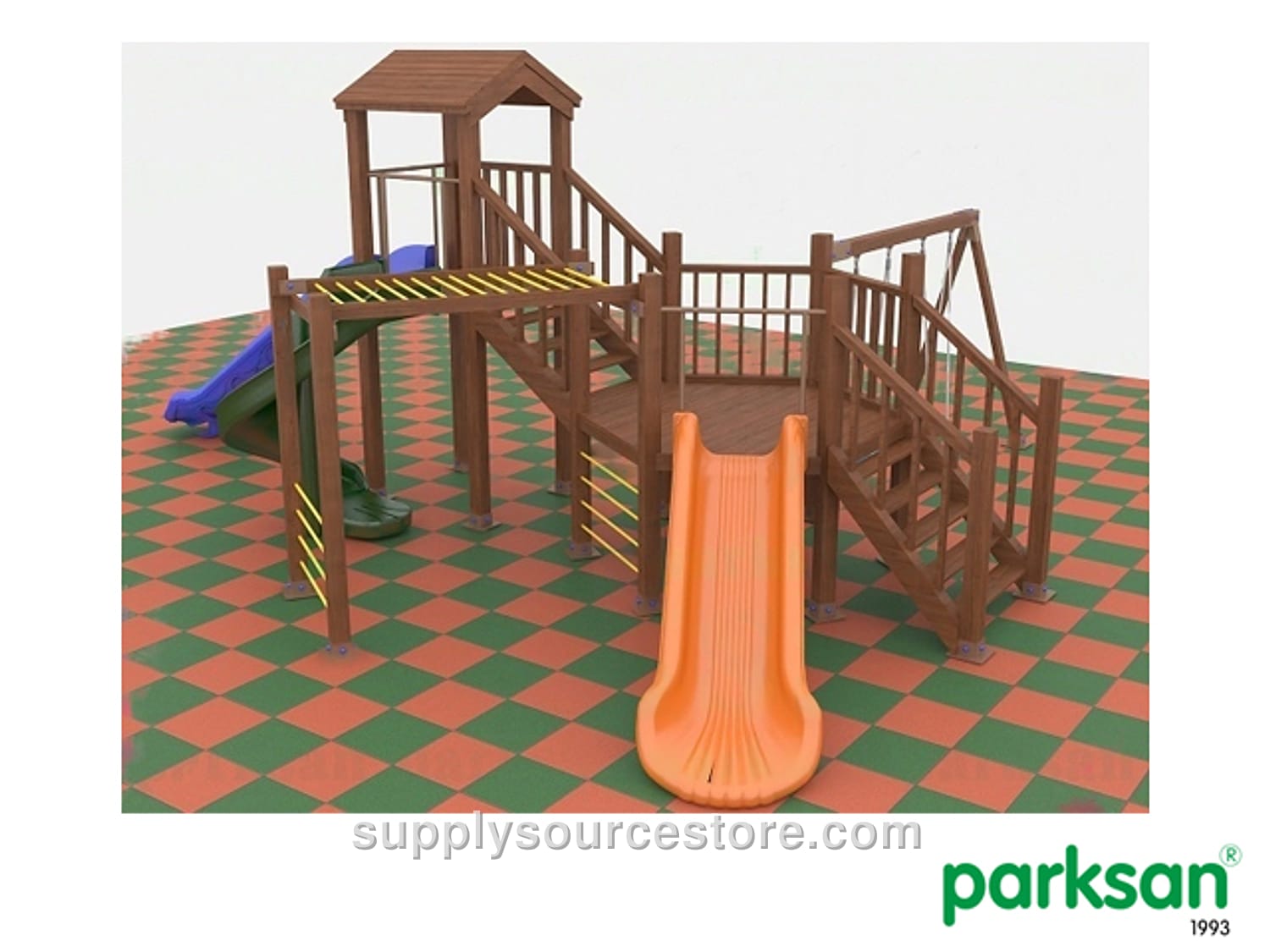

51505 – Wooden Playground Play Set (Eco Series)
Price on request
SKU: SS-012271
Product Technical Specifications Seating Area: 590 × 720 cm (232 x 283 in) Safety Area: 890 × 1020 cm (350 x 402 in) Peak Height: 311 cm (122 in) Slide Connection Height: 100–150 cm (39.4-59.1 in) Age Group: 3+ years Spare Parts – Wooden swing • Tube – 1 piece • Swing support tube – 1 piece • Polyethylene safety swing seat – 1 piece • Wooden swing seat – 1 piece • Stair rail – 2 pieces • Stair step – 10 pieces • Tower tube (H = 150 cm (59.1 in)) – 4 pieces • Tower tube (H = 100 cm (39.4 in)) – 4 pieces • Square platform – 1 piece • Triangular platform – 1 piece • Platform rail – 1 piece • Roof – 1 piece • Slide entrance – 2 pieces • Straight slide (H = 150 cm (59.1 in)) – 1 piece • Spiral slide (H = 100 cm (39.4 in)) – 1 piece • Pull‑up bar climbing element (H = 100 cm (39.4 in)) – 1 piece Supporting Construction 1. Carrier uprights are 9 × 9 cm (3.5 x 3.5 in) and 260 cm (102 in) long. 2. All sharp corners on the wooden beams are rounded for safety. 3. Anchor brackets at the base of the uprights are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in)‑thick box‑profile steel. 4. The base of the 150 cm (59.1 in) tower uprights is wrapped with 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long wood to create the sand‑pit area. 5. All connections use stainless‑steel wood screws, recessed into the beams and covered with polyurethane caps. 6. Wood is pressure‑treated fir/spruce. Wooden Square Platform • Platform size: 110 × 110 cm (43.3 x 43.3 in). • Construction: 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in)‑long carrier uprights surround the platform; two additional beams of 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long are placed between uprights; the remaining gaps are filled with nine beams of 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long placed side‑by‑side. • Material: pressure‑treated fir/spruce. Wooden Roof • Dimensions: 115 × 115 cm (45.3 x 45.3 in), height 41 cm (16.1 in). • Gap between roof eave and platform: 152.5 cm (60 in). • Assembled by overlapping wooden slats. • Material: pressure‑treated fir/spruce. Dual Slide • Designed to descend from a 100 cm (39.4 in) high platform; maximum slope 40°, never exceeding 60°. • Overall width: 100 cm (39.4 in); sliding section width: 40 cm (15.7 in); length: 210 cm (82.7 in). • Side walls: 15 cm (5.9 in) high. • Entry barrier and a 35 cm (13.8 in) flat exit section to reduce speed. • Mounted with galvanized bolts concealed by injection‑molded plastic washers. • Ground connection uses a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter (2 mm (0.1 in) wall) welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Spiral Slide • Attached to a 150 cm (59.1 in) high platform; slope never exceeds 60° and averages about 40°. • Exit flat section: 40 cm (15.7 in) long to reduce speed. • Overall width: 110 cm (43.3 in); length: 190 cm (74.8 in); sliding section width: 45 cm (17.7 in). • Side walls: 20 cm (7.9 in) high. • Same mounting and grounding method as the dual slide. Wave Slide • Descends from a 150 cm (59.1 in) high platform; maximum slope 40°, never reaching 60°. • Overall width: 65 cm (25.6 in); sliding section width: 40 cm (15.7 in); length: 320 cm (126 in). • Side walls: 16 cm (6.3 in) high. • Entry barrier and 35 cm (13.8 in) flat exit section for speed control. • Same mounting and grounding method as the dual slide. Swing • Seating area: 108 × 270 cm (42.5 x 106 in); height 204 cm (80.3 in). • Carrier legs: 9 × 9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long wooden members; base plates are 10 × 10 cm (3.9 x 3.9 in) box‑profile steel. • Connecting beam between carrier legs: 9 × 9 cm (3.5 x 3.5 in), 260 cm (102 in) long wood with two swing‑attachment brackets per side; base plates of 10 × 10 cm (3.9 x 3.9 in) box‑profile steel at connection points. • Two swing seats: one polyethylene seat with three sides closed and a front safety guard; one rubber seat without guard. • Height of protected swing when stationary: 35 cm (13.8 in); height of open swing: 40 cm (15.7 in).
