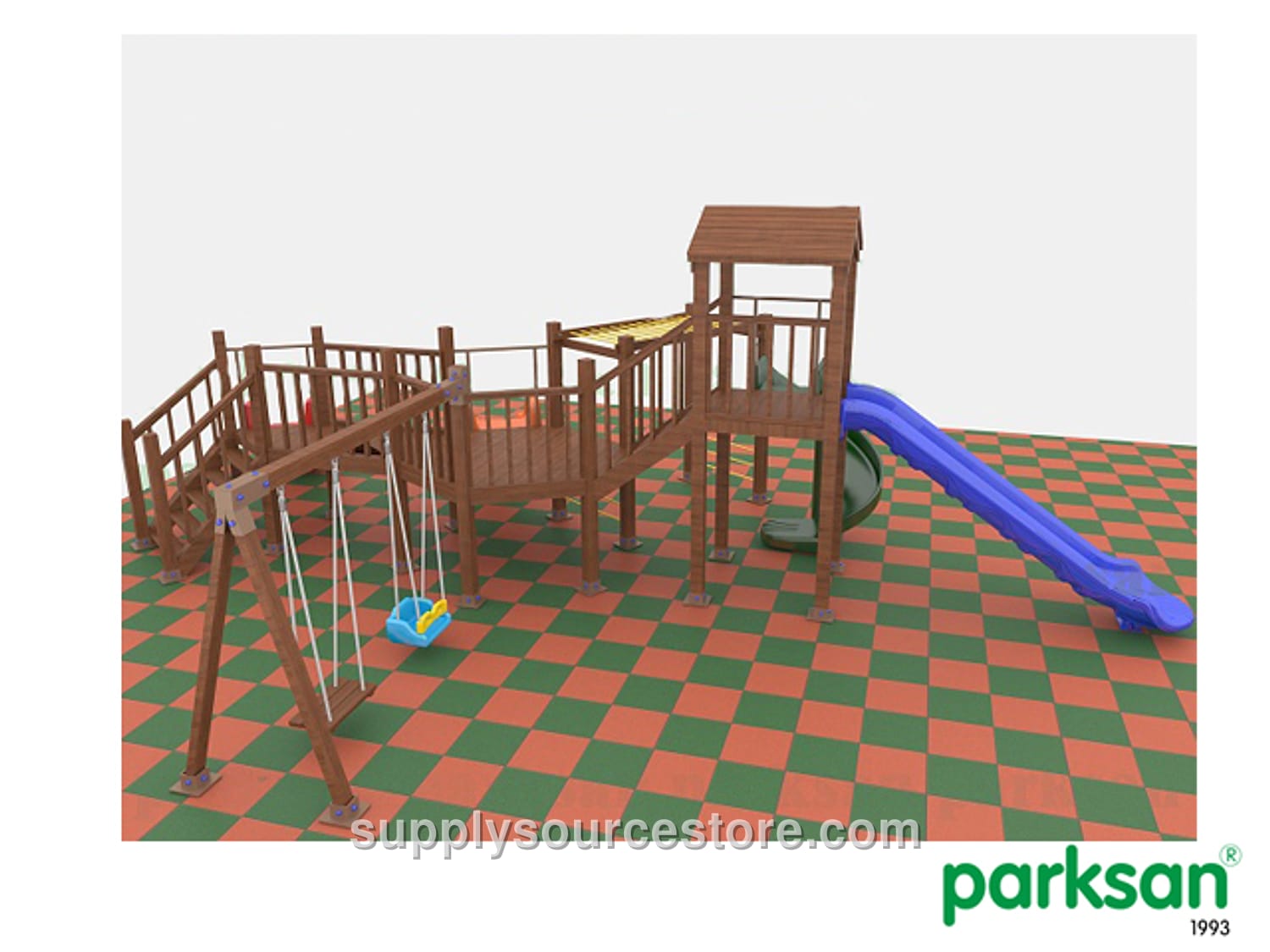

51507 – Wooden Children Playground (Eco Series)
Price on request
SKU: SS-012268
Product Technical Specifications Seating Area 730×760 cm (287 x 299 in) Safety Area 1030×1060 cm (406 x 417 in) Peak Height 311 cm (122 in) Slide Connection Height 150‑150 cm (59.1 in) Age Group +3 YEARS Spare Parts • Wooden Swing A – 1 pc • Wooden Swing Transport – 1 pc • Polyethylene Covered Swing Seat – 1 pc • Wooden Swing Seat – 1 pc • Wooden Stair Railing – 1 pc • Wooden Stair Step – 6 pcs • H:150 cm (59.1 in) Wooden Tower – 8 pcs • Wooden Square Platform – 3 pcs • Wooden Platform Railing – 4 pcs • Wooden Roof – 2 pcs • Wooden Slide Entrance – 3 pcs • H:150 cm (59.1 in) Polyethylene Tube Slide – 1 pc • H:150 cm (59.1 in) Polyethylene Spiral Slide – 1 pc • H:150 cm (59.1 in) Polyethylene Straight Slide – 1 pc Transport Construction 1. Transport vertical supports measure 9×9 cm (3.5 x 3.5 in) and are 260 cm (102 in) long. 2. Sharp corners and edges on the wooden beams used in the transport construction are rounded to prevent accidents. 3. Anchors used at the base of the vertical supports are fabricated from 10×10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box profile. 4. The foot sections of the 150 cm (59.1 in) tower’s vertical supports are wrapped with 5×9 cm (2 x 3.5 in) wooden pieces, 110 cm (43.3 in) long, creating the area needed for a sand pit. 5. Stainless steel wood screws will be used at all connection points. The screws will be recessed inside the wooden beams and covered with polyurethane caps. 6. The wooden material used is pressure‑treated spruce/pine. Wooden Square Platform 1. The wooden platform measures 110×110 cm (43.3 x 43.3 in). 2. When constructing the platform, the transport vertical supports of 5×9 cm (2 x 3.5 in), 110 cm (43.3 in) long, are wrapped around the perimeter. Then, between each pair of verticals, two wooden pieces of 4×9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long, are placed. The remaining gap is filled with nine pieces of wood measuring 4×9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long, placed side by side, completing the platform. 3. The wooden material used is pressure‑treated spruce/pine. Wooden Roof 1. The wooden roof measures 115×115 cm (45.3 x 45.3 in) and stands 41 cm (16.1 in) high. 2. There is a 152.5 cm (60 in) gap between the lower edge of the roof eaves and the platform. 3. The square roof is formed by overlapping wooden lambris. 4. The wooden material used is pressure‑treated spruce/pine. Double Slide 1. Designed to descend from a 100 cm (39.4 in) high platform with a maximum slope of 40°, never exceeding 60° at any point. 2. Total slide width is 100 cm (39.4 in); sliding section width is 40 cm (15.7 in); length is 210 cm (82.7 in). 3. The outer side walls of the slide are 15 cm (5.9 in) high. 4. The intermediate section height is 7 cm (2.8 in). 5. At the slide entrance, a wooden barrier ensures safe entry for children, and a 35 cm (13.8 in) flat section at the exit reduces the child's speed. 6. Slides will be mounted to the platform with galvanized bolts, which will be concealed with injection‑molded plastic washers for a cleaner look and longer durability. 7. The slide’s connection to the ground is achieved by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide 1. Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60° at any point. 2. Total slide width is 65 cm (25.6 in); sliding section width is 50 cm (19.7 in); length is 330 cm (130 in). 3. The outer side walls of the slide are 16 cm (6.3 in) high. 4. At the slide entrance, a wooden barrier ensures safe entry for children, and a 35 cm (13.8 in) flat section at the exit reduces the child's speed. 5. Slides will be mounted to the platform with galvanized bolts, which will be concealed with injection‑molded plastic washers for a cleaner look and longer durability. 6. The slide’s connection to the ground is achieved by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Spiral Slide 1. The slide attached to a 150 cm (59.1 in) high platform is manufactured as a single piece so that the angle of the sliding surface never exceeds 60° and on average stays below 40° when measured against the slide’s longitudinal axis. 2. A 40 cm (15.7 in) flat section at the slide exit reduces the child's speed. 3. Total slide width is 110 cm (43.3 in); length is 190 cm (74.8 in); sliding section width is 45 cm (17.7 in). 4. The outer side walls of the slide are 20 cm (7.9 in) high. 5. Slides will be mounted to the platform with galvanized bolts, which will be concealed with injection‑molded plastic washers for a cleaner look and longer durability. 6. The slide’s connection to the ground is achieved by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Wavy Slide 1. Designed to descend from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60° at any point. 2. Total slide width is 65 cm (25.6 in); sliding section width is 40 cm (15.7 in); length is 320 cm (126 in). 3. The outer side walls of the slide are 16 cm (6.3 in) high. 4. At the slide entrance, a wooden barrier ensures safe entry for children, and a 35 cm (13.8 in) flat section at the exit reduces the child's speed. 5. Slides will be mounted to the platform with galvanized bolts, which will be concealed with injection‑molded plastic washers for a cleaner look and longer durability. 6. The slide’s connection to the ground is achieved by welding a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) thick to a 10×22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Swing 1. Swing seating area measures 108×270 cm (42.5 x 106 in); height is 204 cm (80.3 in). 2. Swing support legs are 9×9 cm (3.5 x 3.5 in) and 208.5 cm (82.1 in) long, made of wood.
