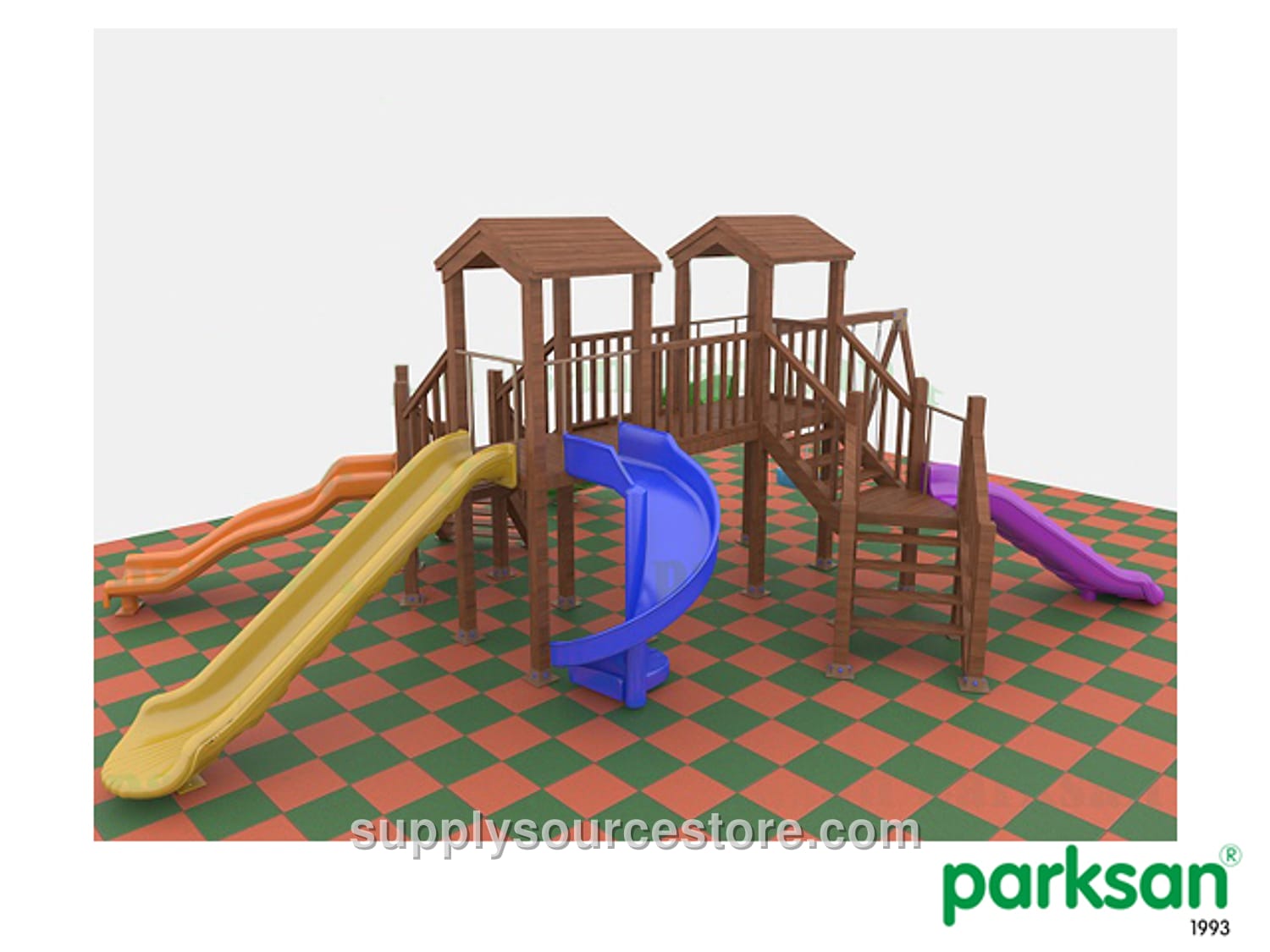

51509 – Wooden Children’s Playground (Eco Series)
Price on request
SKU: SS-012263
Product Technical Specifications - Seating Area: 730 × 760 cm (287 x 299 in) - Safety Area: 1030 × 1060 cm (406 x 417 in) - Peak Height: 311 cm (122 in) - Slide Attachment Height: 100 – 150 – 150 cm (39.4-59.1-59.1 in) - Age Group: 3+ years Spare Parts: - Swing wooden A‑ – 1 piece - Swing wooden carrier – 1 piece - Polyethylene padded swing seat – 1 piece - Wooden swing seat – 1 piece - Wooden stair handrail – 2 pieces - Wooden stair step – 10 pieces - H 150 cm (59.1 in) wooden tower post – 8 pieces - Wooden square platform – 3 pieces - Wooden platform handrail – 5 pieces - Wooden roof – 2 pieces - Wooden slide entry – 3 pieces - H 150 cm (59.1 in) polyethylene straight slide – 1 piece - H 150 cm (59.1 in) polyethylene spiral slide – 1 piece - H 150 cm (59.1 in) polyethylene straight slide – 1 piece Carrier Construction 1. Carrier uprights are 260 cm (102 in) long with a 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp corners and edges on the wooden beams are rounded for safety. 3. Base anchors are made from a 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in) thick box profile. 4. The base of the 150 cm (59.1 in) tower uprights is wrapped with 5 × 9 cm (2 x 3.5 in) wood, 110 cm (43.3 in) long, to create space for a sand pit. 5. All connections use stainless‑steel wood screws, recessed into the beams and covered with polyurethane caps. 6. Wood is pressure‑treated fir/spruce. Wooden Square Platform - Platform dimensions: 110 × 110 cm (43.3 x 43.3 in). - Carrier uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) are wrapped around the perimeter; two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long pieces are placed between each pair of uprights. The remaining space is filled with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long pieces placed side by side, completing the platform. - Wood is pressure‑treated fir/spruce. Wooden Roof - Roof dimensions: 115 × 115 cm (45.3 x 45.3 in), height 41 cm (16.1 in). - Clearance between roof eaves and platform: 152.5 cm (60 in). - The square roof is formed by overlapping wooden slats. - Wood is pressure‑treated fir/spruce. Dual Slide - Descends from a 100 cm (39.4 in) high platform with a maximum slope of 40°, never exceeding 60°. - Total width: 100 cm (39.4 in); sliding section width: 40 cm (15.7 in); length: 210 cm (82.7 in). - Side walls: 15 cm (5.9 in) high. - Intermediate section height: 7 cm (2.8 in). - Wooden barrier at entry for safe access; a 35 cm (13.8 in) flat section at exit reduces speed. - Mounted with galvanized bolts; bolt heads covered by injection‑molded plastic caps. - Ground attachment: 23 cm (9.1 in) long, 88 mm (3.5 in) diameter with 2 mm (0.1 in) wall thickness, welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide - Descends from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60°. - Total width: 65 cm (25.6 in); sliding section width: 50 cm (19.7 in); length: 330 cm (130 in). - Side walls: 16 cm (6.3 in) high. - Wooden barrier at entry; 35 cm (13.8 in) flat exit section. - Mounted as above. Spiral Slide - Attached to a 150 cm (59.1 in) high platform; sliding surface angle never exceeds 60° and averages about 40°. - Exit includes a 40 cm (15.7 in) flat section. - Total width: 110 cm (43.3 in); length: 190 cm (74.8 in); sliding section width: 45 cm (17.7 in). - Side walls: 20 cm (7.9 in) high. - Mounted as above. Wave Slide - Descends from a 150 cm (59.1 in) high platform with a maximum slope of 40°, never exceeding 60°. - Total width: 65 cm (25.6 in); sliding section width: 40 cm (15.7 in); length: 320 cm (126 in). - Side walls: 16 cm (6.3 in) high. - Wooden barrier at entry; 35 cm (13.8 in) flat exit section. - Mounted as above. Swing - Seating area: 108 × 270 cm (42.5 x 106 in); height: 204 cm (80.3 in). - Carrier legs: 9 × 9 cm (3.5 x 3.5 in), 208.5 cm (82.1 in) long wooden members.
