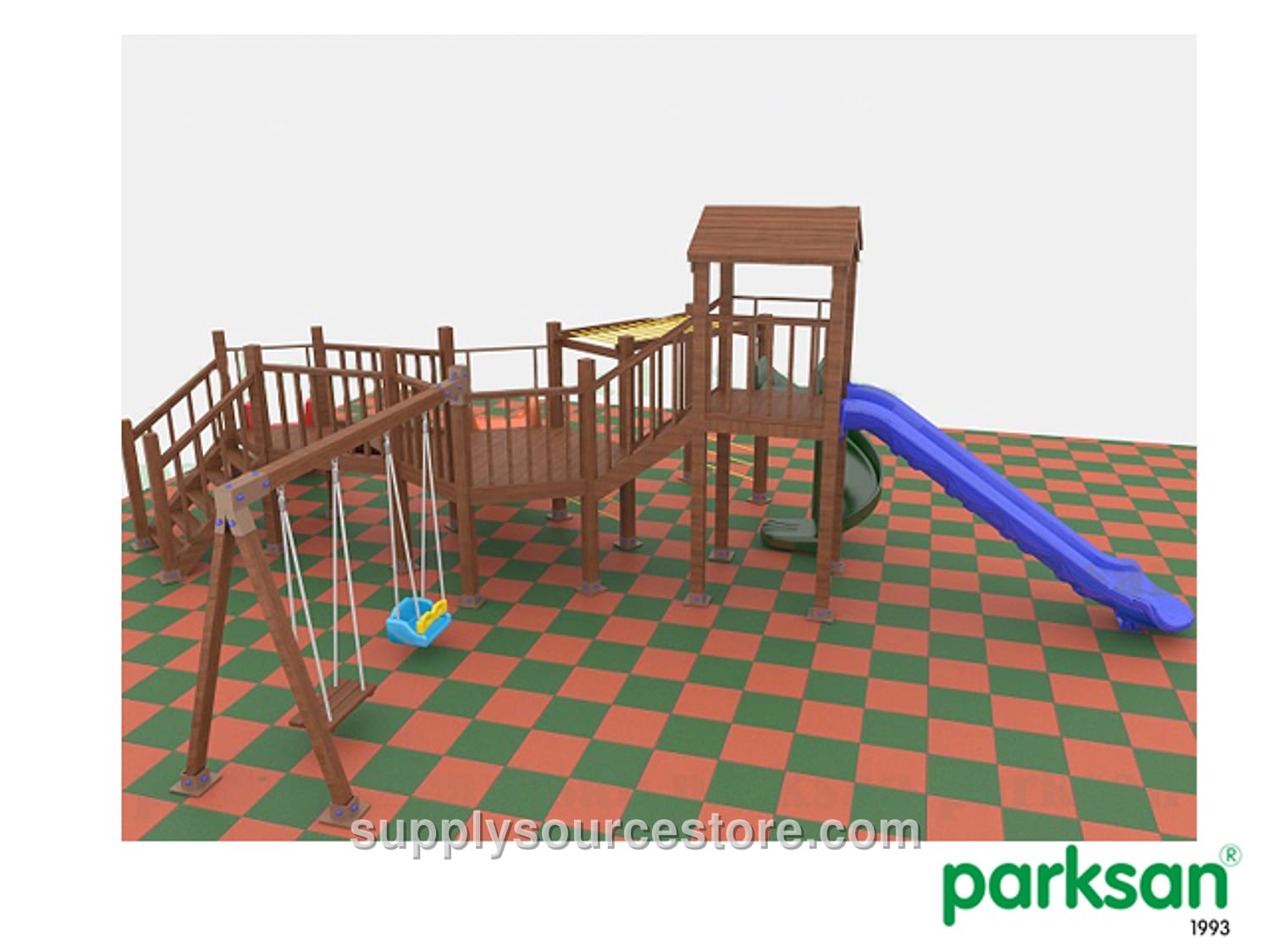

51510 – Wooden Playground (Eco Series)
Price on request
SKU: SS-012262
Technical Specifications Seating area: 770 × 1020 mm (30.3 x 40.2 in). Safety area: 1070 × 1320 mm (42.1 x 52 in). Peak height: 311 mm (12.2 in). Slide connection height: 100–150 mm (3.9-5.9 in). Recommended age: 3 years and up. Spare parts: • Wooden swing A – 1 pcs • Wooden swing transport – 1 pcs • Polyethylene‑guarded swing seat – 1 pcs • Wooden swing seat – 1 pcs • Wooden stair guard – 2 pcs • Wooden stair tread – 10 pcs • 100 mm (3.9 in) wooden tower – 8 pcs • 150 mm (5.9 in) wooden tower – 4 pcs • Wooden square platform – 2 pcs • Wooden triangular platform – 1 pcs • Wooden hexagonal platform – 1 pcs • Wooden platform guard – 5 pcs • Wooden roof – 1 pcs • Wooden slide entrance – 3 pcs • 100 mm (3.9 in) polyethylene wavy slide – 1 pcs • 150 mm (5.9 in) polyethylene straight slide – 1 pcs • 150 mm (5.9 in) polyethylene spiral slide – 1 pcs • 100 mm (3.9 in) polyethylene straight slide – 1 pcs • 100 mm (3.9 in) pull‑up bar – 1 pcs Transport construction: 1. Supporting posts are 260 cm (102 in) long with a 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2. All wooden slats have rounded edges for safety. 3. Anchor brackets at the base are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in)‑thick box‑profile steel. 4. The base of the 150 cm (59.1 in) tower posts is wrapped with 5 × 9 cm (2 x 3.5 in) wooden members, 110 cm (43.3 in) long, forming a sand‑pit area. 5. All connections use stainless‑steel wood screws set flush and covered with polyurethane caps. 6. Wood is pressure‑treated spruce/pine. Wooden square platform: 1. Platform dimensions: 110 × 110 cm (43.3 x 43.3 in). 2. Perimeter is formed with 5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long members; between each post pair two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) long pieces are installed. Remaining gaps are filled with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) long pieces placed side‑by‑side. 3. Wood is pressure‑treated spruce/pine. Wooden roof: 1. Roof dimensions: 115 × 115 cm (45.3 x 45.3 in) with a height of 41 cm (16.1 in). 2. Gap between the lower edge of the eaves and the platform is 152.5 cm (60 in). 3. Square roof is assembled from overlapping wooden lambris. 4. Wood is pressure‑treated spruce/pine. Dual slide (straight slide – 100 cm (39.4 in) platform): 1. Runs from a 100 cm (39.4 in) high platform; maximum slope 40°, no point exceeds 60°. 2. Overall width 100 cm (39.4 in); sliding width 40 cm (15.7 in); length 210 cm (82.7 in). 3. Side walls 15 cm (5.9 in) high. 4. Intermediate section height 7 cm (2.8 in). 5. Wooden safety barrier at the entrance and a 35 cm (13.8 in) flat stopping plate at the exit control speed. 6. Mounted with galvanized bolts; bolt heads are covered with injection‑molded plastic caps. 7. Anchored with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight slide (150 cm (59.1 in) platform): 1. Runs from a 150 cm (59.1 in) high platform; maximum slope 40°, no point exceeds 60°. 2. Overall width 65 cm (25.6 in); sliding width 50 cm (19.7 in); length 330 cm (130 in). 3. Side walls 16 cm (6.3 in) high. 4. Wooden safety barrier at the entrance and a 35 cm (13.8 in) flat stopping plate at the exit control speed. 5. Mounted with galvanized bolts; bolt heads are covered with injection‑molded plastic caps. 6. Anchored with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Spiral slide (150 cm (59.1 in) platform): 1. Single‑piece slide attached to a 150 cm (59.1 in) high platform; angle never exceeds 60°, average about 40° relative to the slide axis. 2. 40 cm (15.7 in) flat stopping plate at the exit reduces speed. 3. Overall width 110 cm (43.3 in); length 190 cm (74.8 in); sliding width 45 cm (17.7 in). 4. Side walls 20 cm (7.9 in) high. 5. Mounted with galvanized bolts; bolt heads are covered with injection‑molded plastic caps. 6. Anchored with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Wavy slide (150 cm (59.1 in) platform): 1. Runs from a 150 cm (59.1 in) high platform; maximum slope 40°, no point exceeds 60°. 2. Overall width 65 cm (25.6 in); sliding width 40 cm (15.7 in); length 320 cm (126 in). 3. Side walls 16 cm (6.3 in) high. 4. Wooden safety barrier at the entrance and a 35 cm (13.8 in) flat stopping plate at the exit control speed. 5. Mounted with galvanized bolts; bolt heads are covered with injection‑molded plastic caps. 6. Anchored with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter, 2 mm (0.1 in) wall‑thick welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate.
