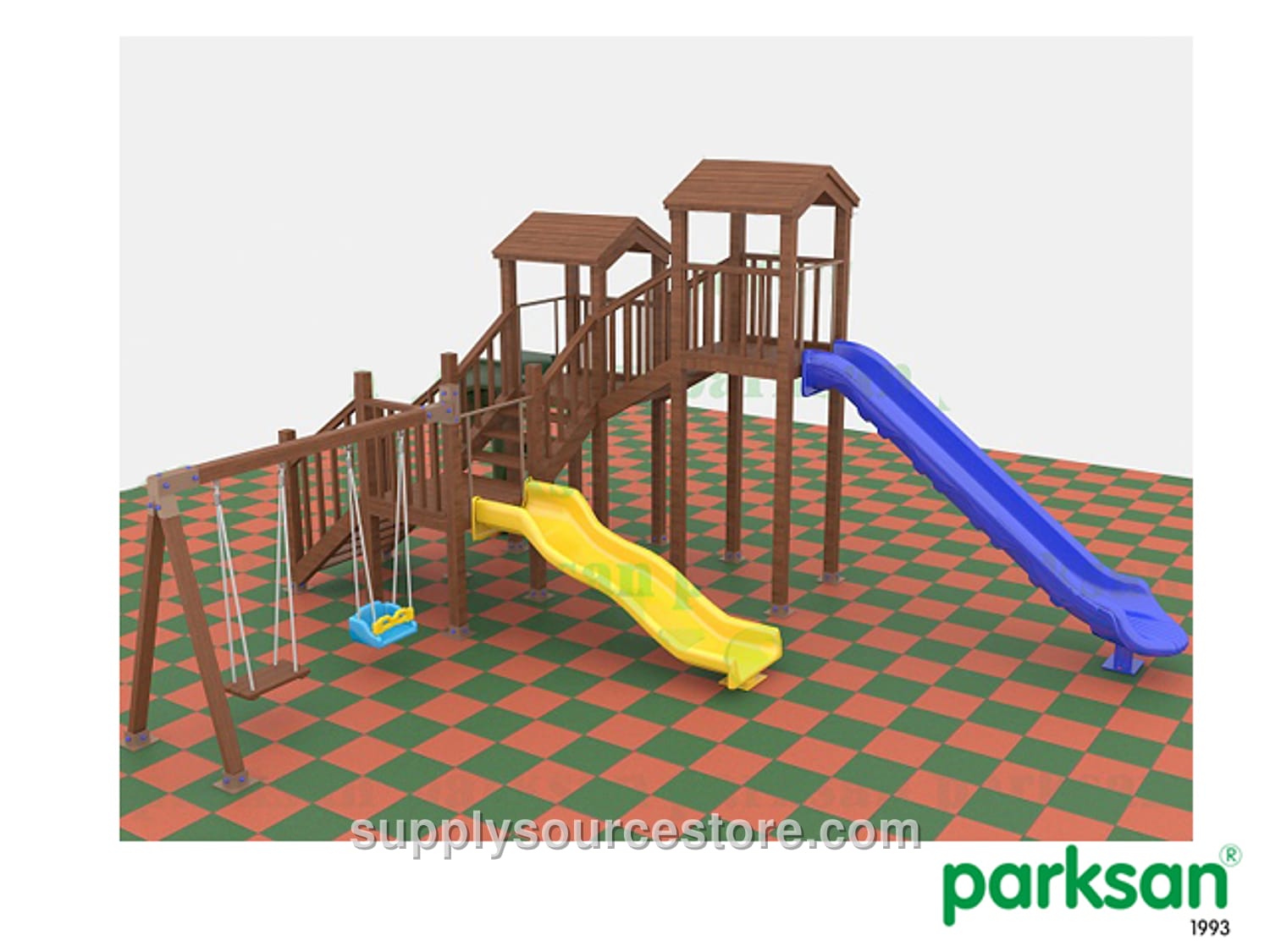

51511 – Wooden Children’s Playground (Eco Series)
Price on request
SKU: SS-012261
Technical Specifications Seating Area: 700 × 800 cm (276 x 315 in) Safety Area: 1000 × 1100 cm (394 x 433 in) Top Height: 390 cm (154 in) Slide Connection Height: 100‑150‑200 cm (78.7 in) Age Group: 3 + years Spare Parts: - Wooden swing A – 1 pcs - Wooden swing carrier – 1 pcs - Polyethylene‑covered swing seat – 1 pcs - Wooden swing seat – 1 pcs - Wooden stair handrail – 3 pcs - Wooden stair step – 15 pcs - Wood tower, H = 100 cm (39.4 in) – 4 pcs - Wood tower, H = 150 cm (59.1 in) – 4 pcs - Wood tower, H = 200 cm (78.7 in) – 4 pcs - Wooden square platform – 3 pcs - Wooden platform handrail – 4 pcs - Wooden roof – 2 pcs - Wood slide entrance – 3 pcs - Polyethylene wavy slide, H = 100 cm (39.4 in) – 1 pcs - Polyethylene spiral slide, H = 150 cm (59.1 in) – 1 pcs - Polyethylene straight slide, H = 200 cm (78.7 in) – 1 pcs Support Structure: 1. Carrier uprights are 260 cm (102 in) long with a 9 × 9 cm (3.5 x 3.5 in) cross‑section. 2. Sharp corners of the wooden slats in the carrier structure are rounded for safety. 3. Anchor brackets at the base of the uprights are made from 10 × 10 cm (3.9 x 3.9 in), 2 mm (0.1 in)‑thick box‑profile steel. 4. The base of the 150 cm (59.1 in) tower uprights is wrapped with 5 × 9 cm (2 x 3.5 in) wood to form a sandpit area. 5. All connections use stainless‑steel wood screws recessed into the slats and covered with polyurethane caps. 6. Wood material: pressure‑treated fir/spruce. Wooden Square Platform: - Dimensions: 110 × 110 cm (43.3 x 43.3 in). - Constructed by surrounding the support uprights (5 × 9 cm (2 x 3.5 in), 110 cm (43.3 in) long) and inserting two 4 × 9 cm (1.6 x 3.5 in), 81.5 cm (32.1 in) members between them, then filling the gaps with nine 4 × 9 cm (1.6 x 3.5 in), 100 cm (39.4 in) members placed side‑by‑side. - Wood material: pressure‑treated fir/spruce. Wooden Roof: - Dimensions: 115 × 115 cm (45.3 x 45.3 in), height 41 cm (16.1 in). - Gap between the eave edge and the platform: 152.5 cm (60 in). - Formed by overlapping wooden lamellas. - Wood material: pressure‑treated fir/spruce. Double Slide (Straight Slide, 100 cm (39.4 in)): - Descends from a 100 cm (39.4 in)‑high platform; maximum slope 40°, never exceeding 60°. - Total width 100 cm (39.4 in); slide width 40 cm (15.7 in); length 210 cm (82.7 in). - Side walls 15 cm (5.9 in) high; intermediate section height 7 cm (2.8 in). - Wooden safety barrier at the entry and a 35 cm (13.8 in) flat plate at the exit to reduce speed. - Mounted with galvanized bolts; bolts are covered with injection‑molded plastic washers. - Anchored to the ground with a 23 cm (9.1 in) long, 88 mm (3.5 in) diameter (2 mm (0.1 in) wall thickness) welded to a 10 × 22 cm (3.9 x 8.7 in), 4 mm (0.2 in) thick metal plate. Straight Slide (150 cm (59.1 in)): - Descends from a 150 cm (59.1 in)‑high platform; maximum slope 40°, never exceeding 60°. - Total width 65 cm (25.6 in); slide width 50 cm (19.7 in); length 330 cm (130 in). - Side walls 16 cm (6.3 in) high. - Entry barrier and 35 cm (13.8 in) speed‑reduction plate as described above. - Mounted and anchored as above. Spiral Slide (150 cm (59.1 in)): - Attached to a 150 cm (59.1 in)‑high platform; inclination averages about 40° and never exceeds 60°. - Exit speed‑reduction plate 40 cm (15.7 in) long. - Total width 110 cm (43.3 in); length 190 cm (74.8 in); slide width 45 cm (17.7 in). - Side walls 20 cm (7.9 in) high. - Mounted and anchored as above. Wavy Slide (150 cm (59.1 in)): - Descends from a 150 cm (59.1 in)‑high platform; maximum slope 40°, never exceeding 60°. - Total width 65 cm (25.6 in); slide width 40 cm (15.7 in); length 320 cm (126 in). - Side walls 16 cm (6.3 in) high. - Entry barrier and 35 cm (13.8 in) speed‑reduction plate as described above. - Mounted and anchored as above. Swing: - Seating area 108 × 270 cm (42.5 x 106 in), height 204 cm (80.3 in). - (additional details continue as provided)
