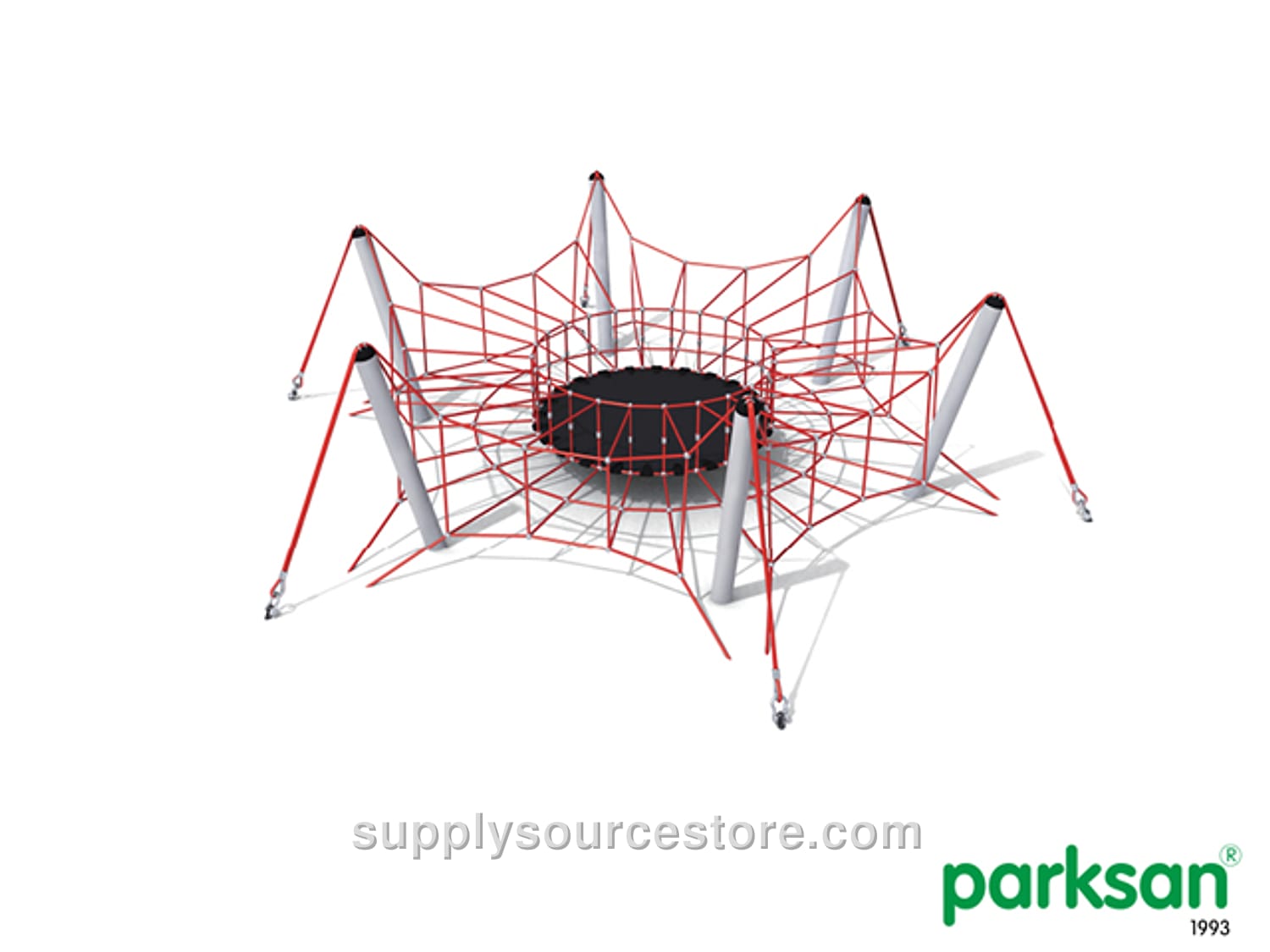

Rope Climbing Spider Trampoline · SS-011718
Price on request
SKU: SS-011718
Height: 155 cm (61 in) Diameter: 750 cm (295 in) Safety Area: 1050 cm (413 in) diameter User Age: 6-12 years User Capacity: 11 Support: The supporting will be a 139.8 mm (5.5 in) steel tube coated with polyester powder for the main support. Climbing Ropes: 16 mm (0.6 in) diameter, UV‑protected and fire‑retardant polyamide (nylon) rope cable. Each rope consists of six strands, each wrapped around a robust core containing a total of 144 steel reinforcement wires, with each strand encased in a polyamide sleeve that includes a 24‑steel‑wire reinforcement. At each end, an aluminum sleeve is attached to the cable, terminated with a galvanized steel wear‑resistant rod and a connection loop. Edge ropes will contain steel cables wrapped around a robust core for a total of 168 steel reinforcement wires, replacing the polyamide core. Binding Balls: A single compressed aluminum ball, compressed with a 150,000‑pound (667 kN) force, will be used to prevent the connector form from moving and to avoid premature cable wear. Lamination Surface: A 13 mm (0.5 in) thick rubber pad reinforced with fabric, attached to the cable with rubber‑lined two‑piece bolted aluminum connectors that have drainage holes to reduce rope wear. Base Connection Elements: All fastening elements for component attachments are stainless steel. Mounting Plates: Made of galvanized steel. Corner anchors will include multiple attachment points to allow adjustable tensioning and the attachment of a safety rope. Mid‑pole anchors will consist of a staking pole to secure the pole and an anchor ring to attach the assembly to the concrete. This two‑piece assembly allows precise positioning of the pole stake during installation, simplifying the process. Anchor Bolts: The mounting plates will be fixed to concrete blocks with “L” anchor bolts measuring 22 mm (0.9 in) in diameter and 500 mm (19.7 in) in length.
